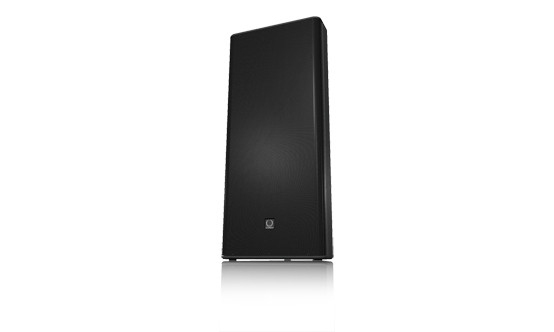

Turbosound TMS153
1,200W 15" Dual 2-Way Full Range Speaker in Black

OUR PART #  TMS153

Our Price: $1,149.99
List Price: $1,322.49
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The 2 way full range TMS153 is a switchable passive/bi-amp 15" 4,800 Watt loudspeaker system is ideally suited for a wide range of portable speech and music sound reinforcement applications. Designed to work in conjunction with TURBOSOUND loudspeaker management systems, the TMS153 provides optimal sonic performance for FOH, side and drum fill applications that demand very high output levels.

The TMS153 loudspeaker features dual carbon fibre loaded 15" low frequency drivers with inside/outside wound coil with low mass voice coil for improved transient response, and a titanium dome 1.4" neodymium motor compression driver mounted on a 75° horizontal by 50° vertical low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8") birch plywood, and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The TMS153 utilises durable handles for portability, and is equally suited for permanent install applications. A rear panel connector plate carries two Neutrik speakON* NL4 connectors for input and link connections to additional enclosures.

Features:

  • 2 way full range loudspeaker for portable PA and installation applications
  • 1,200 Watts continuous, 4,800 Watts peak power
  • Ideal for FOH, side and drum fill applications
  • Carbon fibre loaded 15" low frequency drivers with inside/outside wound coil
  • Titanium dome 1.4" neodymium motor compression driver
  • Switchable passive/bi-amp operation for flexibility of use
  • Low distortion waveguide provides 75° H x 50° V dispersion
  • 15 mm (5/8") birch plywood enclosure with hard wearing semi matt black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Durable handles for easy lifting and carrying
  • Multiple internal rigging points for installation applications
  • Neutrik speakON* NL8 connectors for reliable long life operation
  • 3-Year Warranty Program**
  • Designed and engineered in England

Specifications:

  • Frequency Response:
    • 50 Hz – 20 kHz ±3 dB;
    • 37 Hz – 20 kHz -10 dB
  • Nominal Dispersion:  75° H x 50° V @ -6 dB points
  • Directivity Factor (Q):  12.8
  • Directivity Index (DI):  11.1
  • Power Handling (IEC):
    • Passive:  1,200 W continuous, 4,800 W peak
    • Bi-amp:
      • LF: 1,200 W continuous, 4,800 W peak;
      • HF: 75 W continuous, 300 W peak
  • Sensitivity:  99 dB (1 W @ 1 m)
  • Maximum SPL:
    • Passive:  130 dB continuous, 136 dB peak
    • Bi-Amp:
      • LF: 130 dB continuous, 136 dB peak;
      • HF: 128 dB continuous, 134 dB peak
  • Impedance:
    • Passive:  4 Ohms
    • Bi-Amp:
      • LF: 4 Ohms
      • HF: 6 Ohms
  • Crossover Type:  Passive / bi-amp, switchable
  • Components:
    • 2 x 15" (394 mm) LF driver;
    • 1 x 1.4" (36 mm) HF compression driver
  • Connectors:  2 x Neutrik speakON* NL4
  • Wiring:
    • Passive:  Pins 1+ / 1- input, pins 2+ / 2- link
    • Bi-Amp:  Pins 1+ / 1- LF, pins 2+ / 2- HF
  • Dimensions HWD:  1219 x 533 x 508 mm (48.0 x 21.0 x 20.0")
  • Net Weight:  46.9 kg (103.5 lbs)
  • Construction:  15 mm (5/8") birch plywood
  • Finish:  Semi matt black paint
  • Grille:  Powder-coated perforated steel
