Sony EVID90W/PAC2
EVI-D90 PTZ Camera Package in White with RC2-SDX Kit

OUR PART #  EVID90/W/PAC2

Our Price: $1,722.38
List Price: $2,658.00
You save 35%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Sony has found the easy way to get connected - with EZ-2-Connect™  that packs power, video and control solutions into one package. This particular kit, the EVID90W/PAC2 is an RC2-SDX Dual Cable Solution Kit for the EVI-D90 series of PTZ cameras. Installation headaches are a thing of the past when you combine a high-quality, reliable Sony PTZ camera with a CAT5e/6 cabling kit. Ideal for faith-based communities, healthcare, education, government, videoconferencing, and sports, the EZ-2-Connect PTZ package provides quick and easy installation of EVI, SRG, and BRC PTZ cameras with a Sound Control Technologies Cable Connection Kit. With standard Ethernet cables, you can easily power and control Sony PTZ cameras – saving time and money.

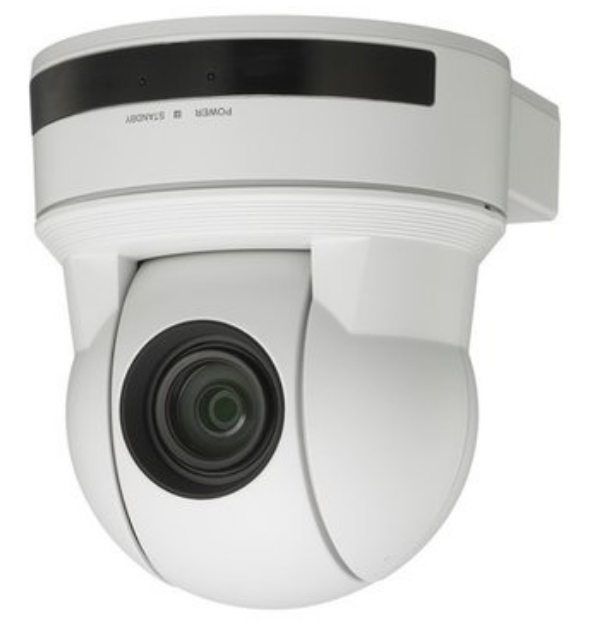

The EVI-D90 PTZ camera from Sony features 28x optical zoom, and utilizes the RS-232C/RS-422 VISCA™ protocol interface, which can allow for easy connectivity to many peripheral system devices. In addition, the new CCD and CMOS sensors offer more sensitivity than previous EVI SD cameras. With high speed pan/tilt/zoom functionality, this easy-to-use camera is an attractive addition to the EVI P/T/Z camera lineup. Best of all, this new camera is ceiling mountable, allowing for more flexible design-in options in many applications including videoconferencing, houses of worship, corporate training and distance learning.

Includes:

  • EVI-D90 PTZ camera (White)
  • RC2-SDX Cable Solution Kit includes:
  • Camera and Codec/Head-End Interface Modules
  • 1' RJ45 to 8 Pin Mini-Din
  • Power Supply
  • Head End Cable
  • RJ45 to Power, Control IR

Sony EVI-D90 Features:

  • 28x Optical Zoom
  • Low minimum illumination
  • 550 TV Lines Resolution
  • E-flip Function
  • Ceiling Mountable
  • Image Stabilization
  • Option to choose between interlace and progressivescan mode
  • Wide-D technology
  • Black housing
  • 1/4-type EXview HAD CCD sensor

Sony EVI-D90 Specifications:

  • Camera:
    • Image Device: 1/4-type EXview HAD CCD
    • Lens Value: f= 3.5 mm (wide) to 98.0 mm (tele) F1.35 to F3.7
    • Minimum Object Distance:
      • 10 mm (wide) - 1,500 mm (tele)
      • *Default: 290 mm
    • Auto Exposure:
      • Auto, Manual, Priority Mode (shutter priority & iris priroity)
      • Bright, EV compensation, Slow Shutter AE
    • Shutter Speed: 1 to 1/10,000 s
    • Gain: Auto/Manual/Max. AE Gain Limit (-3 db to +28 dB, 2 dB steps)
    • White Balance: Auto, ATW, Indoor, Outdoor, One-push, Manual
    • Pan Angle/Speed:
      • +/- 170°
      • 100°/sec
    • Tilt Angle/Speed:
      • +90°/-20°
      • 90°/sec
    • Horizontal Viewing Angle: 55.8° (wide) to 2.1° (tele)
    • Resolution Value: 550 TV Lines
    • Preset Positions: 6
  • Interface:
    • Camera Control Interface: RS-232C/RS-422, VISCA?
  • Video Output:
    • Minimum Illumination: 0.65 lx (F1.35, 50 IRE)
    • S/N Ratio: More than 50 dB
    • Video Output: VBS, Y/C
    • Signal System: SD NTSC
  • General:
    • Dimensions (W x H x D): 145 x 164 x 164 mm (5 3/4 x 6 1/2 x 6 1/2 inches)
    • Weight: 1,460 g (3 lbs., 3 oz)
    • Power Requirements: DC 12V
    • Power Consumption: 6 W
    • Operating Temperature: 0° C to 40° C (32° F to 104° F)
    • Storage Temperature: -20° C to 60° C (-4° F to 140° F)
