JBL AC118S
18" Subwoofer in White with 3" Voice Coil

OUR PART #:  AC118S-WHITE

The JBL AC118S is a high power subwoofer system comprised of one 457.2 mm (18") low frequency driver in a vented, front-loaded configuration for extended bandwidth.
Learn More
Our Price: $1,140.00
Write the first review.
JBL AC118S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The JBL AC118S is a high power subwoofer system comprised of one 457.2 mm (18") low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility. As a part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC118S provides a natural low-frequency sound quality.

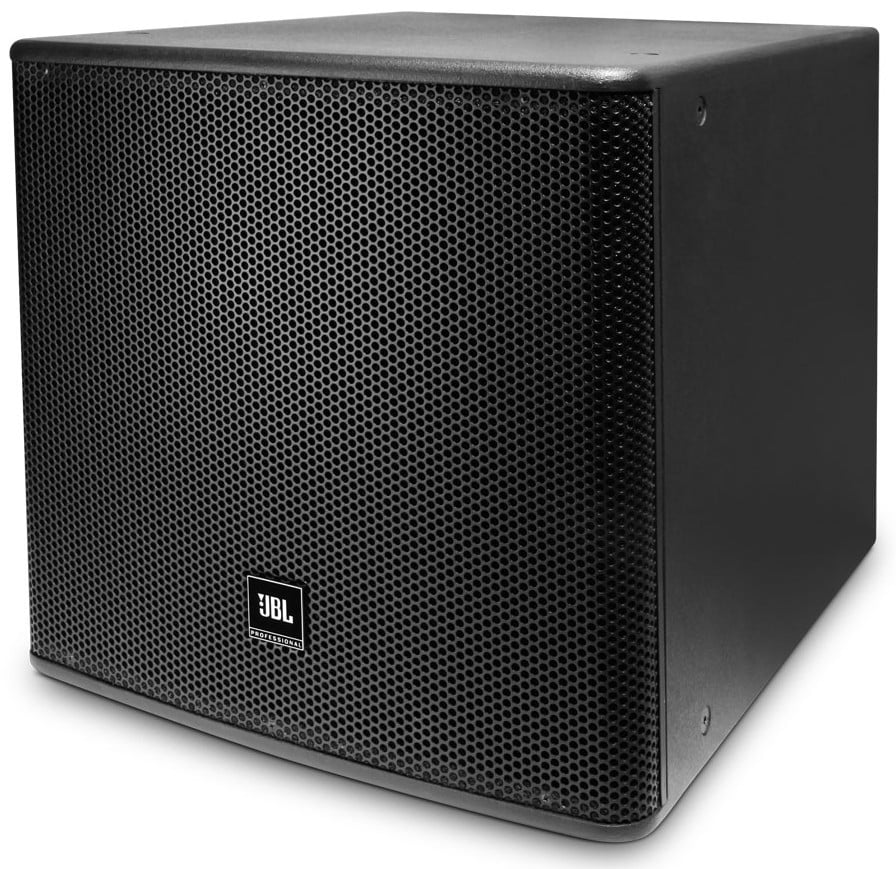

NOTE: Shown above in black, comes in white.

JBL AC118S 18" Subwoofer Features:

  • High power and long excursion driver for lower frequency reproduction.
  • High sensitivity with lower power compression
  • Large port for high output and low-frequency reinforcement
  • Multiple Attachment Points for Ultimate Flexibility
  • Robust 15 mm multiply hardwood with textured black finish

JBL AC118S 18" Subwoofer Specifications:

  • Frequency Range (-10 dB): 32 Hz - 150 Hz
  • Frequency Response (±3 dB): 40 Hz - 250 Hz
  • System Sensitivity (1w @ 1m): 95 dB
  • Nominal Impedance: 8 ohms
  • Maximum SPL(1m): 122 dB (128 dB peak)
  • Power Rating:
  • Continuous: 450W
  • Program: 900W
  • Peak: 1800W
  • Low frequency driver: 1x 18" woofer (P/N: 5021800), 457.2 mm (18") driver with 75 mm (3") voice-coil
  • Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
  • Enclosure Material: 15 mm multi-ply hardwood plywood
  • Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
  • Finish: Textured black paint finish.
  • Suspension / Mounting: 12x M10 threaded suspension points
  • Dimensions: 22" H x 28.3" W x 21.5" D (561 x 720 x 548 mm)
  • Net Weight: 71.2 lbs (32.3 kg)
