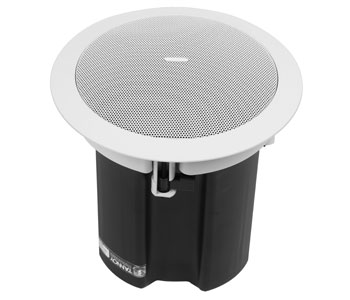

Tannoy CVS4 [RESTOCK ITEM]
4" 70V Ceiling Speaker

OUR PART #  CVS4-RST-03

Call for price! Not available online.


The Tannoy CVS range has been designed to deliver the best possible performance/price balance; packaged with C-ring and tile bridge and fully supported with industry standard certifications, including UL-1480, UL-2043 and CE. The small footprint CVS4 is a 100mm (4.00") full bandwidth blind mount model, with integral steel back can, specifically designed for all applications requiring the combination of excellent sonic quality for music and speech reinforcement and exceptional reliability.

Ideally suited to installations where sound quality cannot be compromised, CVS4 ensures performance is fully optimized as cost competitvely as possible.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Representative for more information on this and other products.

Tannoy CVS4 Features:

  • Coaxially-mounted 4" mineral loaded woofer with rubber surround and 0.75" soft dome diffraction loaded tweeter
  • High power and high sensitivity with extended frequency response and verylow distortion
  • Wide, controlled constant directivity dispersion for optimum coverage
  • UV/weather resistant UL94V-0 ABS front bafffle
  • Easily accessible tapping switch on front baffle
  • Low insertion loss 30W line transformer
  • Ferrofluid cooled neodymium HF
  • Packaged with tile rails and C-ring for quick and easy installation and simple stocking logistics

Tannoy CVS4 Specifications:

  • Performance:
    • Frequency Response (-3dB):  85 Hz - 19 kHz
    • Frequency Range (-10dB):  77 Hz - 22 kHz
    • System Sensitivity (1W @1m):  87dB (1W = 2.45V for 6 Ohms)
    • Nominal Coverage Angle:  90 degrees conical
    • Coverage Angle (1 kHz to 6 kHz):  102 degrees conical
    • Directivity Factor (Q):  5.6 averaged 1 kHz to 6 kHz
    • Directivity Index (DI):  7.1 averaged 1 kHz to 6 kHz
    • Rated Maximum SPL:  103 dB (average), 109 dB (peak)
    • Power Handling:  40W (average), 80W (program), 160W (peak)
    • Recommended Amplifier Power:  80W @ 6 Ohms
    • Nominal Impedance:  6 Ohms
    • Transformer Taps (via front rotary switch):
      • 70V:  30W /15W / 7.5W / 3.75W / OFF & low impedance operation
      • 100V:  30W / 15W / 7.5W/ OFF & low impedance operation
    • Crossover:  2.7 kHz
  • Transducers:
    • Low Frequency:  4" mineral loaded cone
    • High Frequency:  0.75" coaxially mounted
  • Physical:
    • Enclosure:
      • Back Can:  Zinc plated steel
      • Baffle:  UL94V-0 rated ABS
      • Grille:  Steel, with weather resistant coating
    • Safety Features:  Safety ring located at rear of enclosure for load bearing safety bond
    • Clamping Design:  Security toggle clamp
    • Cable Entry Options:  Cable clamp & squeeze connector for conduit up to 22mm
    • Connectors:  Removable locking connector with screw terminals with "loop through" facility
    • Hole Cutout Diameter:  7.09"
    • Dimensions:  Bezel diameter: 8.39"; Front of ceiling to rear of back can: 7.97"; Front of ceiling to top of safety loop: 8.46"
    • Net Weight:  2.6 kg
    • Included Accessories:  C Ring, Tile bridge, Paint mask, Cutout template, Grille

Tannoy CVS4 [RESTOCK ITEM]
4" 70V Ceiling Speaker

OUR PART #  CVS4-RST-03

Product Information:

The Tannoy CVS range has been designed to deliver the best possible performance/price balance; packaged with C-ring and tile bridge and fully supported with industry standard certifications, including UL-1480, UL-2043 and CE. The small footprint CVS4 is a 100mm (4.00") full bandwidth blind mount model, with integral steel back can, specifically designed for all applications requiring the combination of excellent sonic quality for music and speech reinforcement and exceptional reliability.

Ideally suited to installations where sound quality cannot be compromised, CVS4 ensures performance is fully optimized as cost competitvely as possible.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Representative for more information on this and other products.

Tannoy CVS4 Features:

  • Coaxially-mounted 4" mineral loaded woofer with rubber surround and 0.75" soft dome diffraction loaded tweeter
  • High power and high sensitivity with extended frequency response and verylow distortion
  • Wide, controlled constant directivity dispersion for optimum coverage
  • UV/weather resistant UL94V-0 ABS front bafffle
  • Easily accessible tapping switch on front baffle
  • Low insertion loss 30W line transformer
  • Ferrofluid cooled neodymium HF
  • Packaged with tile rails and C-ring for quick and easy installation and simple stocking logistics

Tannoy CVS4 Specifications:

  • Performance:
    • Frequency Response (-3dB):  85 Hz - 19 kHz
    • Frequency Range (-10dB):  77 Hz - 22 kHz
    • System Sensitivity (1W @1m):  87dB (1W = 2.45V for 6 Ohms)
    • Nominal Coverage Angle:  90 degrees conical
    • Coverage Angle (1 kHz to 6 kHz):  102 degrees conical
    • Directivity Factor (Q):  5.6 averaged 1 kHz to 6 kHz
    • Directivity Index (DI):  7.1 averaged 1 kHz to 6 kHz
    • Rated Maximum SPL:  103 dB (average), 109 dB (peak)
    • Power Handling:  40W (average), 80W (program), 160W (peak)
    • Recommended Amplifier Power:  80W @ 6 Ohms
    • Nominal Impedance:  6 Ohms
    • Transformer Taps (via front rotary switch):
      • 70V:  30W /15W / 7.5W / 3.75W / OFF & low impedance operation
      • 100V:  30W / 15W / 7.5W/ OFF & low impedance operation
    • Crossover:  2.7 kHz
  • Transducers:
    • Low Frequency:  4" mineral loaded cone
    • High Frequency:  0.75" coaxially mounted
  • Physical:
    • Enclosure:
      • Back Can:  Zinc plated steel
      • Baffle:  UL94V-0 rated ABS
      • Grille:  Steel, with weather resistant coating
    • Safety Features:  Safety ring located at rear of enclosure for load bearing safety bond
    • Clamping Design:  Security toggle clamp
    • Cable Entry Options:  Cable clamp & squeeze connector for conduit up to 22mm
    • Connectors:  Removable locking connector with screw terminals with "loop through" facility
    • Hole Cutout Diameter:  7.09"
    • Dimensions:  Bezel diameter: 8.39"; Front of ceiling to rear of back can: 7.97"; Front of ceiling to top of safety loop: 8.46"
    • Net Weight:  2.6 kg
    • Included Accessories:  C Ring, Tile bridge, Paint mask, Cutout template, Grille
