Moog Music Sub 37 [DISPLAY MODEL]
37-Key Tribute Edition Paraphonic Analog Synthesizer


The Sub 37 Tribute Edition is a limited edition (2-note) paraphonic analog synthesizer built on the award winning Sub Phatty sound engine.
Learn More
Sale Price: $1,149.99
List Price: $1,421.10
You save 19%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Moog Music Sub 37 [DISPLAY MODEL]
In Stock

Similar Products

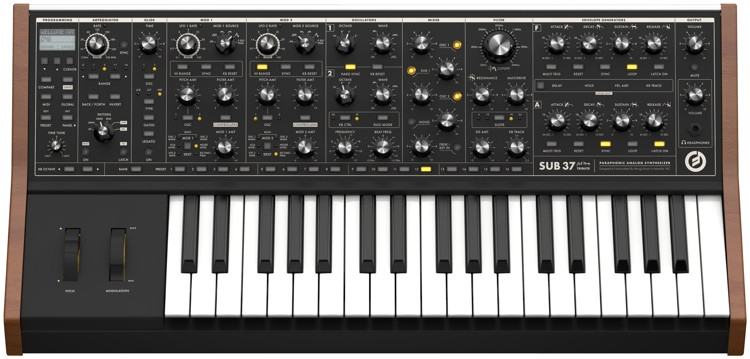

The Sub 37 Tribute Edition is a limited edition (2-note) paraphonic analog synthesizer built on the award winning Sub Phatty sound engine. Its panel features  40 knobs, 74 switches, and has a dedicated LCD display - placing each critical sound creation element and live performance tool quickly at your command.

This product was on display in our retail store and has been additionally discounted. Please contact your Sales Pro for more information on this and other products.

The Sub 37 Tribute's new features include Duo Mode, which allows oscillator 1 and oscillator 2 to be played independantly, programmable arpeggiator/step sequencer, two modulation busses with assignable source and destination options, access to 256 presets, and a 37-note velocity sensitive keyboard with aftertouch.

A fully featured mixer section contains dedicated controls and mutes for each sound source, as well as a level control for External audio input and Feedback - which feeds the output of the filter directly back to the input of the mixer.

Also included are the powerful DAHDSR envelopes from the Sub Phatty with panel control of each extended function. And, like the Sub Phatty, the Sub 37 Tribute includes a free standalone/plugin editor that is compatible with all major plugin formats - creating seamless integration between analog synth and DAW for total control, recall, and automation of every parameter

Moog Music Sub 37 Features:

  • Perform in Monophonic or Duo-Paraphonic modes
  • 37-note velocity sensitive keyboard with aftertouch
  • 2 modulation busses w/ assignable source and destinations
  • DAHDSR (Delay, Attack, Hold, Decay, Sustain, Release) looping envelopes with sync
  • 256 Presets: 16 banks of 16 patches
  • Standalone and DAW Plugin editor included
  • Syncable Arpeggiator and Step Sequencer
  • Classic Moog Ladder Filter with resonance, MultiDrive, and selectable filter slopes.

NOTE: Tribute edition includes Bob Moog signature panel, Wood sides, and Aluminum extrusion

NOTE:  The Sub 37 Tribute is a limited edition analog synthesizer created in honor of Moog Music founder Dr. Robert Moog, his passion for education, and his love of music. For every Sub 37 Tribute sold, Moog Music will donate a portion of the proceeds to Asheville Area School Music Programs.

Moog Music Sub 37 Specifications:

  • Sound Engine: 100% Analog
  • Polyphony: Selectable Monophonic Or Paraphonic
  • Keybed: 37 Note Semi-Weighted With After Pressure
  • LCD: 128 X 64 Pixel Lcd With White Backlight
  • Controllers:Pitch Bend, Mod Wheel, After Pressure, Breath, Velocity
  • Sound Sources: 2 Variable Waveshape Oscillators, 1 Square Wave Sub Oscillator, 1 Analog Noise Generator, 1 External Input/Filter Feedback
  • Oscillator Calibration Range: 22Hz-6.8kHz. Note Range At 8’ = 18 - 116
  • Glide Module: Assign To Osc1/Osc2/Both. Type - Lcr, Lct, Exp, Gated, Legato
  • Filter: 20hz-20khz Moog Ladder Filter W/ 6/12/18/24Db/Oct Filter Slopes And Multidrive
  • Transposition:+/- 1 Octaves
  • Arpeggiator/Sequencer: Up, Down, Order, Random, Latching, Back/Forth, Invert, +/-2 Range, Tie, Rest, Midi Sync
  • Modulation Busses:
    • Sources: Lfo, Filter Envelope, Programmable Sources - Amp Env,Osc1/Osc2 Pitch
    • Destinations: Osc1/Osc2/Both Pitch, Filter Cutoff, Osc1/Osc2/Both Wave, Vca, Lfo1/Lfo2 Rate, Noise Level, Eg Time.
    • Programmable Destinations - Filter Resonance, Drive, Slope, Eg Amt. Osc1/Osc2/Sub Level, Feedback/Ext Level.
    • Lfo Panel Features: Hi/Low Range From .01hz–1khz, MIDI Sync, Kb Reset
    • Envelopes: Dahdsr Envelopes With Multi-Trigger, Reset, Looping, MIDI Sync, Latch, And Variable Control Of Eg Delay, Hold, Velocity Amount, Kb Tracking.
  • Inputs/Outputs:
    • Audio Input: 1xts
    • Audio Output 1xts, 1xtrs Headphone With Separate Volume Control
    • Presets: 256 Presets - 16 Banks X 16 Presets
    • MIDI I/O: Din In/Out, And MIDI Over USB
    • CV/Gate Inputs: Filter Cv, Pitch Cv, Volume Cv, Kb Gate
  • Power: 110vac-240vac Universal Power Supply With Iec Connector
  • Weight: 22 lbs.
  • Dimensions (HxWxD): 6.75" x 26.75" x 14.75"
