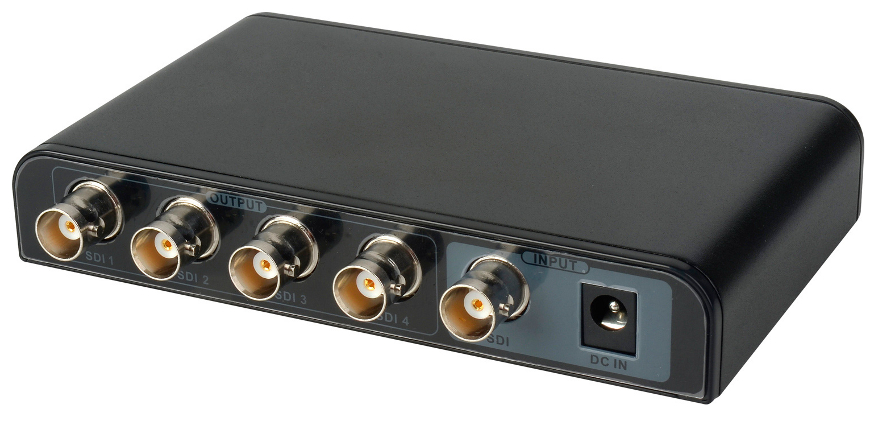

OCEAN MATRIX OMX-SDI-1X4
3G SDI 1x4 Splitter - Distribution Amplifier

OUR PART #:  OMX-SDI-1X4

Now you can drive four displays or recorders simulatneously with the Ocean Matrix 3G-SDI 1x4 splitter/DA.
Learn More
Our Price: $189.95
List Price: $199.95
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

OCEAN MATRIX OMX-SDI-1X4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Now you can drive four displays or recorders simulatneously with the Ocean Matrix 3G-SDI 1x4 splitter/DA. The OMX-SDI-1X4 accepts a single 3G-SDI input and reclocks and equalizes the signal to 4 identical outputs for real-time multi-viewing, video distribution and additional monitoring feeds.

The 4 outputs of the OMX-SDI-1X4 all support SD-SDI (270Mbps), HD-SDI (1.485Gbps) and 3G-SDI (2.97Gbps) to cover all of your video format distribution needs. The unit can drive output distances of up to 400 meters (1312 feet) for SD-SDI signals, 200 meters (656 feet) for HD-SDI signal and 100 meters (328 feeet) for 3G-SDI signal.

What's in the Ocean Matrix OMX-SDI-1X4 Box:

  • OMX-SDI-1X4 Unit
  • 5V Power Supply
  • User Manual

Ocean Matrix OMX-SDI-1X4 Features:

  • Supports SD-SDI (270Mbps), HD-SDI (1.485Gbps) and 3G-SDI (2.97Gbps)
  • 4 simultaneous SDI outputs
  • Equalized & re-clocked transmission and support signal input
  • Output distances of up to 400 meters for SD-SDI, 200 meters for HD-SDI and 100 meters for 3G-SDI signal
  • DC5V-30V Voltage Input - great for field applications
  • SDI Signal Auto-Detect
  • SDI input/output: 480i/720p/1080i @ 60Hz, 576i/720p/1080i @ 50Hz, 1080p @ 24/25/30/50/60Hz
  • 5V Power Supply with 2.1mm Plug (center pin hot)
