DPA Microphones FIO66F34-M
d:fine 66 Single-Ear Omnidirectional Headset Microphone in Beige with 90mm Medium Boom Arm and Locking 3.5mm for Sennheiser

OUR PART #:  FIO66F34-M

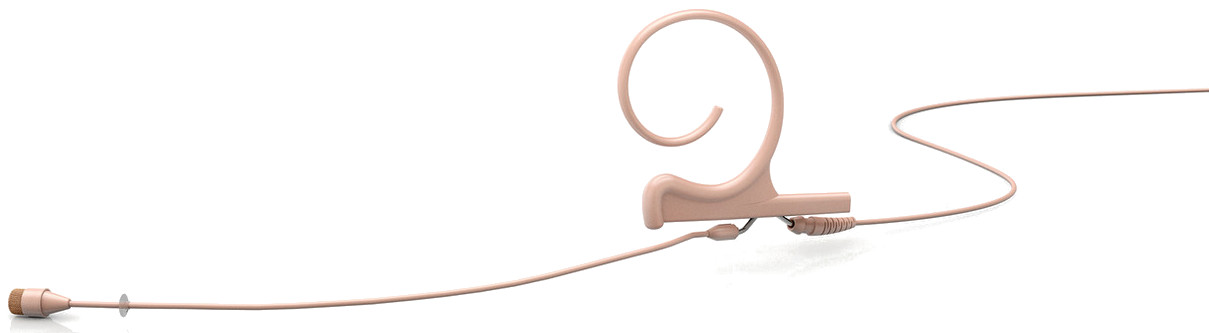

The DPA Microphones d:fine™ 66 Headset Microphone combines the legendary 4066 Omnidirectional capsule with the lightweight and flexible d:fine Headset system.
Learn More
Our Price: $729.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones FIO66F34-M
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DPA Microphones d:fine™ 66 Headset Microphone combines the legendary 4066 Omnidirectional capsule with the lightweight and flexible d:fine Headset system.

The d:fine Headsets features:

  • Pristine audio quality
  • Easy single-ear mounting
  • Minimal visual impact
  • Adapts to all pro wireless systems

d:fine has been ergonomically designed to fit easily and seamlessly. It will adjust to fit any ear size and head shape while mounting securely and hardly visible.

Just by rotating the boom and the earhook, the microphone can be moved from left to right ear, or into the optimum position.

Staying true to the DPA legacy, d:fine offers accurate, natural voice intelligibility and very high SPL capabilities – users can both speak and sing into the mic with no hint of distortion.

d:fine 66 is available with single- or dual-ear mounts. The dual-ear mount is dedicated for more active situations and will be safe in even the most rigorous and energetic performance applications.

Cables

A service connector splits the cable from the microphone boom and allows for quick exchange of cable lengths/colors/connectors and is valuable for servicing broken cables.

Accessories

The d:fine mic with boom, earhook, and cable is delivered in a neat, roadworthy box with room for accessories like transmitters and batteries. The DPA accessory line includes power supplies and adapters or cables with fixed connectors.

Includes:

  • Microphone (boom, ear-hook, cable)
  • Cable clip which anchors the cable to your clothing
  • Five identification rings and one make-up cover (DUA0585)
  • Four windscreens (DUA0531)

DPA FIO66F34-M d:fine 66 Single-Ear Omnidirectional Headset Microphone Specifications:

  • Directional characteristics:  Omnidirectional
  • Principle of operation:  Pressure
  • Cartridge type:  Pre-polarized condenser
  • Frequency range:  20 Hz - 20 kHz
  • Frequency range, ± 2 dB:
    • Soft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz.
    • Optional High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHz.
  • Sensitivity, nominal +/- 3 dB at 1 kHz:  6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted:  Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
  • Equivalent noise level, ITU-R BS.468-4:  Typ. 38 dB (max. 40 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):  Typ. 68 dB(A)
  • Total Harmonic Distortion (THD):  <1 % up to 123 dB SPL peak
  • Total Harmonic Distortion (THD):  <1 % up to 120 dB SPL RMS sine
  • Dynamic range:  Typ. 97 dB
  • Max. SPL, peak before clipping:  144 dB
  • Output impedance:  From MicroDot: 30 - 40 ohm. From DAD6001-BC: 100 ohm
  • Cable drive capability:  Up to 300 m (984 ft) with DAD6001-BC XLR adapter
  • Output balance principle:  Signal balanced with DAD6001-BC XLR adapter
  • Common Mode Rejection Ratio (CMRR):  > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter
  • Power supply:  For wireless systems: Min. 5 V through DPA adapter.
  • Current consumption:  Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter
  • Connector:  MicroDot
  • Weight:  "Single Ear: Microphone boom: 1 g (0.035 oz). Earhook: 1 g (0.035 oz). Cable: 8 g (0.28 oz). Total: 10 g (0.35 oz)
  • Microphone diameter:  Length: 10 mm , Diameter: 5 mm
  • Capsule diameter:  5.4 mm (0.2 in)
  • Microphone length:  Boom length: 110 mm, 90 mm (M)
  • Cable length:  1.25 m (4.1 ft)
  • Cable color:  Beige
  • Cable diameter:  1.6 mm (0.06 in)
  • Polarity:  +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)
  • Temperature range:  -40 °C to 45 °C (-40 °F to 113 °F)
  • Relative Humidity (RH):  Up to 90%
