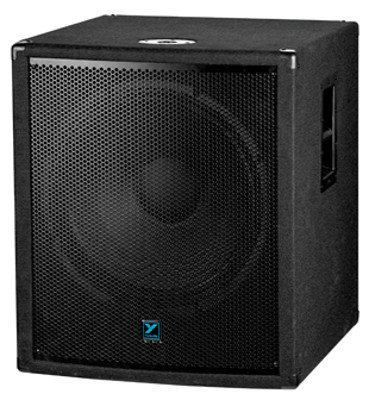

Yorkville YX18SP
YX Series 18" 500W Powered Subwoofer


The Yorkville YX18SP is designed to be the highly cost effective companion subwoofer for YX Series cabinets...
Learn More
Our Price: $629.00
List Price: $869.00
You save 28%!
Write the first review.
Yorkville YX18SP
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Yorkville YX18SP is designed to be the highly cost effective companion subwoofer for YX Series cabinets, the powered YX18SP subwoofer's integrated amplifier delivers 500 watts to the highly efficient 18-inch woofer. A compact front-loaded bass reflex design ensures exceptional performance in the vital 45 to 150Hz range. A solid plywood cabinet construction, all-metal handles and metal top speaker mount guarantee unmatched long-term reliability for highly demanding mobile PA applications and club installs.

Yorkville YX18SP Features:

  • 500 Watt Integrated Amplifier
  • 18-inch Woofer
  • Max SPL 123dB (Continuous)
  • Integrated 80Hz Crossover Output
  • Balanced Inputs and Outputs
  • Front Loaded Bass Reflex Design
  • Integrated Bar Handles & Top Speaker Mount

Yorkville YX18SP Specifications:

  • System Type:  Subwoofer
  • Active or Passive:  Active
  • Program Power (Watts):  500
  • Max SPL (dB):  123dB (Continuous)
  • Frequency Response (Hz +/- 3dB):  45 - 150Hz
  • Crossover Frequency (Hz):  80Hz
  • Driver Configuration:  18-inch Ceramic
  • Inputs:
    • 1 x Combi-Jack (l/mono)
    • 1 x XLR (right)
  • Mixer Controls:
    • Gain Control
    • Ground Lift
    • Integrated Crossover (80Hz High Pass Output for Top Cabinets)
  • Other Controls / Features:  2 x XLR Link Thru /2 x XLR High Pass (80Hz crossover)
  • Corners:  Metal
  • Feet:  Rubber
  • Bar Handles:  2 (Side)
  • Pole Mount Adapter (1 3/8"-3.5cm):  Yes (Top)
  • Enclosure Materials:  15mm (5/8inch) Plywood
  • Grille:  Custom Punched Black Perforated Metal
  • Covering / Finish:  Black Ozite
  • Dimensions (DWH xbackW, inches):  26 x 22 x 25
  • Dimensions (DWH xbackW, cm):  66 x 55.9 x 63.5
  • Weight (lbs/kg):  76 / 34.6
