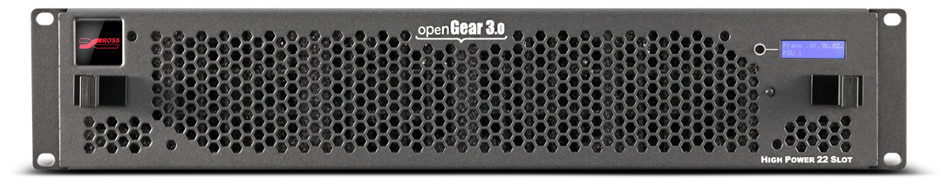

Ross Video Ltd OG3-FR-CN
openGear® 3.0 Frame with Cooling and Advanced GigE Network Control

OUR PART #  OG3-FR-CN

Our Price: $1,804.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

openGear® 3.0 is the evolution of the industry’s first and only open hardware and software platform. The next generation openGear® frame, Ross Video, Ltd.'s OG3-FR-CN combines function, flexibility and power with advanced features like a high powered 450 watt redundant power supply option, Gigabit Ethernet access to every card slot, 20 openGear® card slots, dedicated 21st and 22nd card slots for network control and internal reference distribution, and a front LCD display for easy frame, IP address and fault identification.

Modular Frame Architecture
The OG3-FR-CN offers the flexibility of independent rear modules for connectivity to a wide array of interfaces such as BNC, twisted-pair audio, and fiber. The independent rear modules are available in different I/O configurations for select cards, including high density split rear modules allowing up to 20 independent openGear® cards in the OG3 frame.

Robust Power Supplies
The OG3-FR can accommodate 2 front-loaded PS-OG3 power supplies. The split outside location of the power supplies makes installation a breeze when utilizing an alternate phase power source. A single 450 watt supply can fully power a loaded frame, and the addition of a second (optional) supply gives the frame full power redundancy. Each power supply contains an independent cooling fan, status LED, and a front-mounted power switch.

Cooling
The OG3-FR frame has been designed with an advanced cooling architecture with increased ventilation. Front door mounted cooling fans provide forced air cooling to all cards with front to back airflow. An intelligent fan controller adjusts fan speed with changes in power supply loading and temperature. The front door assembly can be removed without tools for quick and easy maintenance.

Advanced GigE Network Control
The OG3-FR frame comes standard with Ethernet connectivity for basic configuration and monitoring of openGear® cards through the DashBoard control system (a free application available on the Ross Video website, designed for remote control and monitoring of the open architecture, openGear® platform), plus the OG3-FR-CN offers gigabit Ethernet to every slot within the chassis, enhancing communication speed and connection options to all openGear® cards. It provides more communication options and flexibility to openGear® card manufacturers; ultimately enhancing the openGear® platform and experience. The 21-port Ethernet switch, built in to the frame’s network control card, future-proofs the openGear® 3.0 platform for users and openGear® partners for years to come.

DataSafe
DataSafe dramatically reduces downtime when failed modules are swapped out. All module parameters are stored on the local frame network card and automatically restored when a hot-swap is performed. With some cards reaching well over 100 parameters, including audio channel delays and video proc level, DataSafe ensures a proper reconfiguration of replacement cards without the hassle of trying to remember previous settings.

DataSafe can be enabled or disabled on a per slot basis through the frame’s network controller card. DataSafe’s intelligent design will only restore parameters when it detects a compatible replacement product.

Ross Video, Ltd. OG3-FR-CN Features:

  • Robust 450 watt power supply with integral cooling
  • Standard Ethernet connectivity
  • Advanced Ethernet-based frame controller with GigE to every slot
  • Optional SNMP control and monitoring (sold separately-contact your Sales Pro for more information)
  • 2RU frame houses up to 20 openGear® cards, 1 controller slot, and 1 reference slot
  • Modular I/O panels for connector flexibility
  • Removable front door for easy fan servicing
  • Frames come standard with cooling
  • Front LCD display for name, IP and fault identification
  • 2 independent looping references with connection to each card slot
  • Optional redundant power supply, hot-swappable for 24/7 operation (sold separately-contact your Sales Pro for more information)
  • Supports any mix of analog, digital, video and audio modules in the same frame using appropriate Rear Modules
  • 5-year transferable warranty

Ross Video Ltd OG3-FR-CN
openGear® 3.0 Frame with Cooling and Advanced GigE Network Control

OUR PART #  OG3-FR-CN

Product Information:

openGear® 3.0 is the evolution of the industry’s first and only open hardware and software platform. The next generation openGear® frame, Ross Video, Ltd.'s OG3-FR-CN combines function, flexibility and power with advanced features like a high powered 450 watt redundant power supply option, Gigabit Ethernet access to every card slot, 20 openGear® card slots, dedicated 21st and 22nd card slots for network control and internal reference distribution, and a front LCD display for easy frame, IP address and fault identification.

Modular Frame Architecture
The OG3-FR-CN offers the flexibility of independent rear modules for connectivity to a wide array of interfaces such as BNC, twisted-pair audio, and fiber. The independent rear modules are available in different I/O configurations for select cards, including high density split rear modules allowing up to 20 independent openGear® cards in the OG3 frame.

Robust Power Supplies
The OG3-FR can accommodate 2 front-loaded PS-OG3 power supplies. The split outside location of the power supplies makes installation a breeze when utilizing an alternate phase power source. A single 450 watt supply can fully power a loaded frame, and the addition of a second (optional) supply gives the frame full power redundancy. Each power supply contains an independent cooling fan, status LED, and a front-mounted power switch.

Cooling
The OG3-FR frame has been designed with an advanced cooling architecture with increased ventilation. Front door mounted cooling fans provide forced air cooling to all cards with front to back airflow. An intelligent fan controller adjusts fan speed with changes in power supply loading and temperature. The front door assembly can be removed without tools for quick and easy maintenance.

Advanced GigE Network Control
The OG3-FR frame comes standard with Ethernet connectivity for basic configuration and monitoring of openGear® cards through the DashBoard control system (a free application available on the Ross Video website, designed for remote control and monitoring of the open architecture, openGear® platform), plus the OG3-FR-CN offers gigabit Ethernet to every slot within the chassis, enhancing communication speed and connection options to all openGear® cards. It provides more communication options and flexibility to openGear® card manufacturers; ultimately enhancing the openGear® platform and experience. The 21-port Ethernet switch, built in to the frame’s network control card, future-proofs the openGear® 3.0 platform for users and openGear® partners for years to come.

DataSafe
DataSafe dramatically reduces downtime when failed modules are swapped out. All module parameters are stored on the local frame network card and automatically restored when a hot-swap is performed. With some cards reaching well over 100 parameters, including audio channel delays and video proc level, DataSafe ensures a proper reconfiguration of replacement cards without the hassle of trying to remember previous settings.

DataSafe can be enabled or disabled on a per slot basis through the frame’s network controller card. DataSafe’s intelligent design will only restore parameters when it detects a compatible replacement product.

Ross Video, Ltd. OG3-FR-CN Features:

  • Robust 450 watt power supply with integral cooling
  • Standard Ethernet connectivity
  • Advanced Ethernet-based frame controller with GigE to every slot
  • Optional SNMP control and monitoring (sold separately-contact your Sales Pro for more information)
  • 2RU frame houses up to 20 openGear® cards, 1 controller slot, and 1 reference slot
  • Modular I/O panels for connector flexibility
  • Removable front door for easy fan servicing
  • Frames come standard with cooling
  • Front LCD display for name, IP and fault identification
  • 2 independent looping references with connection to each card slot
  • Optional redundant power supply, hot-swappable for 24/7 operation (sold separately-contact your Sales Pro for more information)
  • Supports any mix of analog, digital, video and audio modules in the same frame using appropriate Rear Modules
  • 5-year transferable warranty
