NEC Visual Systems NP-PA521U
5200 Lumen Widescreen Advanced Professional WUXGA LCD Inatallation Projector


NEC's PA521U is a 5200-lumen widescreen advanced professional installation model that appeases corporate and higher education users.
Learn More

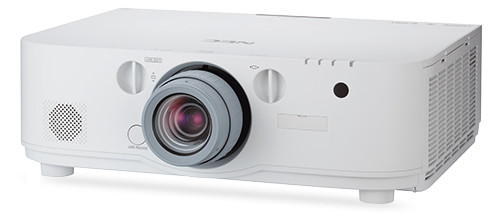

NEC PA521U Top View
NEC PA521U Connectors View
NEC PA521U Ceiling Installed View

Click a thumbnail to see more images. (7 total)

Our Price: $4,999.00
List Price: $5,499.00
You save 9%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


NEC Visual Systems NP-PA521U
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

NEC's PA521U is a 5200-lumen widescreen advanced professional installation model that appeases corporate and higher education users. With integrated RJ45, optional high-speed wireless (LAN IEEE 80.11b/g/n) and a multitude of simple-to-use asset management technologies, the PA521U helps users present seamlessly without worrying about their technology. Enjoy design and installation flexibility with a complete line of optional bayonet style lenses, tilt-free and portrait installation capabilities along with horizontal/vertical lens shift.

What's Included

  • Remote control
  • Batteries
  • Power cord
  • Built-in Lens cover
  • User manual
  • Quick Start Guide
  • Product registration card
  • Lens anti-theft screw

NEC PA521U Features:

  • TileMatrix enables 4K x 2K resolution utilizing 4 projectors via external distribution amplifier
  • Multi-display support with Picture by Picture/Picture Out Picture
  • High performance video processing/scaling creates life-like images
  • Integrated software applications such as DisplayNote®, Crestron Roomview, AMX Beacon and PJ link allow for complete interactivity and control
  • 5200-lumen brightness enhances images for most applications

NEC PA521U Specifications:


  • Display Technology:  0.76" LCD w/ MLA
  • Light Output (Lumens):  5200 normal
  • Resolution:
    • Native:  WUXGA 1920 x 1200
    • Maximum:  WUXGA 1920 x 1200
  • Contrast Ratio (up to):  5000:1 with auto iris
  • Lamp Type:  330W AC
  • Lamp Life (up to):  3000 hours normal / 4000 hours eco
  • Screen Size (diagonal):  40 to 500 in. (1.02 to 12.7m)
  • Throw Ratio:  1.5 to 3.02
  • Projection Distance:  2.5 to 68.5 ft. (0.74 to 20.9m)
  • Projector Angle:  10.3 to 10.8° tele / 13.7 to 14.5° wide
  • Lens:
    • Zoom:  1 to 2.01
    • Focus:  Manual
    • F number, fnumber:  F=1.7 to 2.37, f=24.4 to 48.6mm
    • Shift:  Mechanical -0.1 to +0.5 vertical, +/-0.3 horizontal
  • Keystone Correction:  +/- 40° horizontal, +/- 30° vertical

Signal Compatibility/Connectivity

  • Scan Rate:
    • Horizontal:  15-153 kHz
    • Vertical:  48-120 Hz
  • Supported Video Standards:  NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
  • SD/HD Video Signal Compatibility:  480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • PC Signal Compatibility:  VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
  • Macintosh Compatibility
  • Input/Output Terminals:
    • RGB1 (analog):  VGA 15-pin D-sub
    • RGB2 (analog):  5-BNC
    • RGB3 (digital):  HDMI w/HDCP
    • RGB4 (digital):  DisplayPort w/HDCP
    • Audio 1:  Mini stereo
    • Monitor out:  HDMI
    • Audio out:  1/8 in. stereo (Variable audio out)
  • Audio:  10W mono
  • External Control:  RS-232, IR, DDC/CI, USB
  • Sync Compatibility:  Separate Sync / Composite Sync / Sync onG


  • Power Requirements:  100-240V AC, 50/60 Hz
  • Input Current:  5.5-2.2A
  • Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving):  440W / 362W / 7.4W / 0.11W


  • Optional Lenses:  NP11FL, NP12ZL, NP13ZL, NP14ZL, NP15ZL, NP30ZL (all sold separately)
  • Installation Orientation:  Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
  • Dimensions (WxDxH):  19.7 x 14.4 x 6.5 in. (499 x 366 x 164mm)
  • Net Weight:  18.5 lbs. (8.4 kg)
  • Fan Noise:  39 dB normal / 33 dB eco
  • Regulations:  USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM


  • Operating Temperature:  41-104°F (5-40°C)
  • Humidity:  20-80% non-condensing
  • Storage:  -14-122°F (-10-50°C)

Limited Warranty

  • 3 years.  Lamp warranty is 1 year or 500 hours, whichever comes first.

Additional Features

  • Automatic keystone correction
  • Wireless LAN
  • Active Lens Cover
  • USB Viewer
  • Cornerstone
  • Geometric Correction
  • 4000 hour Filter Life
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Quick power-off
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense

*NOTE: All features/specifications subject to change without notice.
