ETC/Elec Theatre Controls 4M26L-1

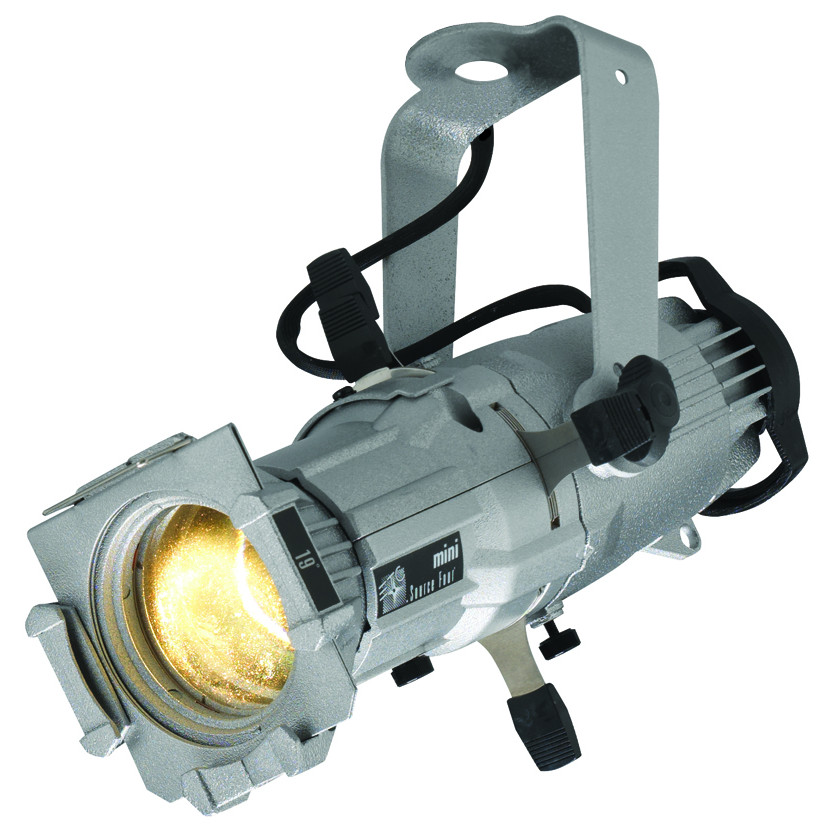

Portable Source Four Mini LED with 26° Field Angle in White

OUR PART #:  4M26L-1

ETC offers the 4M26L-1, a portable Source Four Mini LED that is a 26° field angle fixture, and comes in white.
Learn More
Our Price: $414.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls 4M26L-1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

ETC offers the 4M26L-1, a portable Source Four Mini LED that is a 26° field angle fixture, and comes in white. This 12W Source Four Mini LED features the same crisp optics, user-friendly functionality and sleek look of the legendary Source Four fixture, but in a compact format at a fraction of the size.

The Source Four Mini™ is everything you expect from the Source Four® brand – ease of use, superior optics, crystal-clear image projection and a bright, even field – but packaged in a tiny fixture that’s just one-third the size of a traditional Source Four. A mere nine inches long the Source Four Mini can go anywhere: museums, retail outlets, restaurants, light labs, children’s theaters, and other small scale installations where size matters.

The Source Four Mini is available in four field angles: 19°, 26°, 36° and 50°, with a 2.5" diameter lens. It comes in a portable version with a miniature C-clamp, a canopy-mount design with an integral transformer, or a track-mount design. There is also a low-voltage (12V) tungsten version. All Source Four Mini models include an E-sized pattern holder and a gel media frame, with a range of additional accessories.

Applications:

  • Museums
  • Retail stores
  • Restaurants
  • Lobbies
  • Light labs
  • Theaters

ETC 4M26L-1 Source Four Mini LED Features:

  • 19°, 26°, 36° and 50° field angles
  • 9” long, 2.5” diameter
  • Available in 50W tungsten/halogen MR16 lamp (5,000-hour life), 12V tungsten/halogen lamp, or 12W LED (35,000-hour life)
  • Portable, canopy-mount and track-mount versions
  • E-size pattern holder
  • Gel media frame
  • Rotating barrel ± 175°
  • Three-plane stainless-steel shutter blade assembly
  • Tool-free lamp replacement
  • Line-dimmable, forward or reverse phase
  • Insulated rear handle
  • Rugged die-cast aluminum construction

Additional Portable features:

  • Yoke-mounted 12V transformer or LED driver in color-matched case
  • Miniature C-clamp included
  • 3-foot power cable with NEMA 5-15P connector

ETC 4M26L-1 Source Four Mini LED Specifications:

Physical

  • Die-cast aluminum construction (A380 grade)
  • Fine-texture, high-temperature powder-coated paint
  • Steel yoke with 0.406” diameter mounting hole
  • Rotating shutter assembly ±175°
  • E-size gobo pattern holder (included) - 37.5mm with a 25.4mm image area
  • Stainless steel, full hard shutters in a tri-plane assembly, 0.40mm (A301 grade)
  • Fixed-beam angles to suit a range of throw distances
  • Tool-free tilt and beam adjustment
  • High-impact resistant, thermally insulated knobs and shutter handles
  • Captive accessory slot for pattern holder (included)
  • Dual captive accessory slots for media frame (included)
  • Portable:
    • Yoke-mounted LED driver in color-matched enclosure
    • Miniature C-clamp mounting (included)- for use with 3/8” to 1” pipe (0.675” to 1.315” OD)
    • Three-foot power cable with NEMA 5-15P connector
  • Black or white power lead (consult with your Sales Professional for more information)

Electrical

  • Power at full intensity: 12W typical, 14W max
  • 18 AWG input wire size
  • Input voltage options:
    • 90-135V, 50/60Hz
    • 190-250V,50/60Hz
  • Dimmable (forward and reverse phase)
  • In rush (first half-cycle):
    • 120V: 3A
    • 240V: 4A

Lamp

  • Cree LED (Available in 80+ and 90+ CRI)
  • Long-life lamp: 35,000 hours L70 lumen maintenance
  • 3000K color temperature

Optical

  • Fixed-beam options of 19°, 26°, 36° and 50° field angles
  • Projector-quality, high-contrast lenses
  • Beam edge continually adjustable hard to soft
  • Thermal: 0°C to +40°C

Weights

  • Portable: 2.7 lbs. (1.2 kgs)
  • Install Canopy: 2.6 lbs. (1.2 kgs)
  • Track Mount: 2.4 lbs.  (1.1 kgs)
