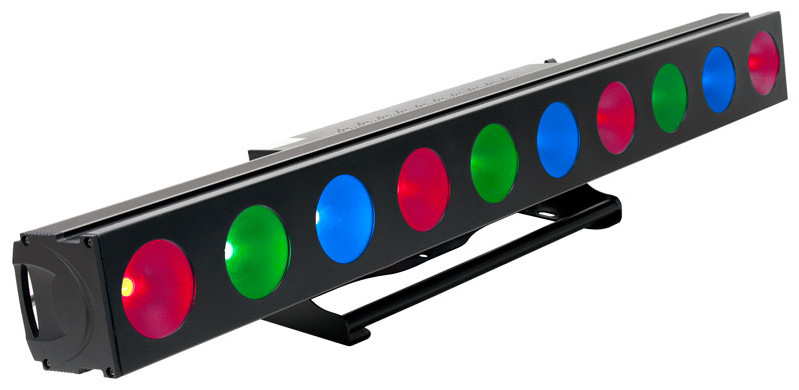

Elation Pro Lighting CUEPIX Batten
10x30W COB Batten with Pix Control

OUR PART #:  CUEPIX-BATTEN

The Elation Pro Lighting CUEPIX Batten™,  part of the Cuepix series, features (10) long life 30W 3-in-1 RGB COB LEDs...
Learn More
Our Price: $640.00
List Price: $800.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elation Pro Lighting CUEPIX Batten
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Elation Pro Lighting CUEPIX Batten™,  part of the Cuepix series, features (10) long life 30W 3-in-1 RGB COB LEDs, 100,000 average hour LED life, 82° beam and 106° field angles, individual control of each COB module, variable dimming curve modes, strobe and chase effects, ArtNet™, KlingNet™ and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated rigging bracket, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 312W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

Elation Pro Lighting CUEPIX Batten Features:

  • 82° Beam 106° Field Angles
  • ArtNet™ and Klingnet™ Support
  • RDM - Remote Device Management
  • Individual COB Module Control
  • Variable Dimming Curve Modes
  • Multiple Unit Power Linking
  • Rugged Die-Cast Aluminum Exterior
  • Flicker Free Operation for TV and FILM

Elation Pro Lighting CUEPIX Batten Specifications:

Source

  • (10) 30W 3-in-1 COB LEDs
  • 100,000 Hour Average LED Life

Photometric Data

  • 3,890 LUX 361 FC @3.3’ (1m) (82° Full ON)
  • 1,237 LUX 115 FC @6.6’ (2m) (82° Full ON)
  • 613 LUX 57 FC @9.8’ (3m) (82° Full ON)
  • 345 LUX 32 FC @13.1’ (4m) (82° Full ON)
  • 227 LUX 21 FC @16.4’ (5m) (82° Full ON)

Effects

  • Strobe and Chase Effects
  • Individual COB Module Control
  • Variable and Selectable Dimming Curves

Control / Connections

  • 8 DMX Channel Modes (3 / 4 / 6 / 9 / 30 / 33 / 36 / 60)
  • 4 Button Control Panel and LCD Menu Display
  • ArtNet™ + KlingNet™ Protocol Support
  • RDM (Remote Device Management)
  • (2) RJ45 Ports
  • 3-pin and 5-pin DMX In/Out
  • powerCON Power In/Out

Size / Weight

  • Dimensions (LxWxH): 43.3” x 6.4” x 6.8” (1100 x 121 x 172mm)
  • Weight: 21.0 lbs. (9.5 kg)

Electrical / Thermal

  • AC 110-250V - 50/60Hz
  • 312W Max Power Consumption
  • Power Linking: TBD
  • 68°F to 113°F (20°C to 45°C)

Approvals / Ratings

  • CE Approved
  • cETLus Pending

Installation

  • Rigging: Integrated Rigging Bracket
  • Working Position: Any (360°)

Included Items

  • powerCON Cable

NOTE: These specifications and documentation are PRELIMINARY, and subject to change without notice.
