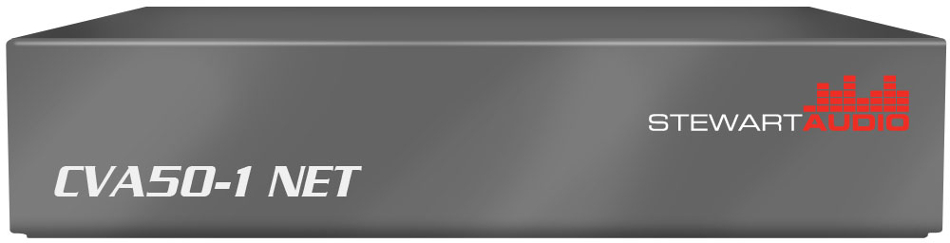

Stewart Audio CVA50-1 NET
50W Mono Networked Subcompact 70/100V Amplifier with Dante

OUR PART #  CVA-50-1-NET

Our Price: $469.00
List Price: $559.00
You save 16%! (Low Price Guarantee)
In Stock

The Stewart Audio CVA50-1 NET is a subcompact 50W mono 70V/100V networkable power amplifier built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. The CVA50-1 NET is designed with a network only signal input, it is designed to connect to an existing network via Dante and receive its input through the network. This lightweight amplifier features Class D amplification technology and has a 1/3 rack width form factor.

Stewart Audio CVA50-1 NET Specifications:

  • CVA50-1 100V/70V: 50W
  • Frequency Response (+0, -3 dB): 100 Hz - 20 kHz
  • Power Bandwidth (+3, -3 dB): 80 Hz - 30 kHz
  • THD+N: < .1% @ Full Power
  • Signal-to-Noise Ratio: > 80dB
  • Remote Volume Control: 0 - 10V DC, 4 Pin Euro Block
  • Input Sensitivity: 0.5V (-3 dBV)
  • Standard Voltage Gain: 151X (43dB) @ 70.7 Volts out
  • Input impedance (Balanced/Unbalanced): 20kOhms/10k Ohms
  • Sleep, Idle Current Draw, 1/8 power draw: 3.3 /6.9 / 14.2 Watts
  • Amplifier Class: D
  • Input Connectors: RJ45, Euro Block 3 Pin, 3.5mm (NET+)
  • Output Connectors: Euro Block 2 Pin, 5mm
  • Power Supply: External in-line 48VDC (Included), 2 pin Euro Block
  • Cooling: Convection-Cooling (No Fans)
  • LED Indicators: Power, Signal Present & Clip
  • Construction: Aluminum Chassis & Top Cover
  • Dimensions (HxWxD): 1.25" x 6.00" x 4.00" (3.2x 15.2 x 10.2 cm)
  • Weight: < 1.2 lbs (0.54 kg)
  • Warranty: 3 years
  • Plenum Rating: UL 2043 Approved

Stewart Audio CVA50-1 NET
50W Mono Networked Subcompact 70/100V Amplifier with Dante

OUR PART #  CVA-50-1-NET

Product Information:

The Stewart Audio CVA50-1 NET is a subcompact 50W mono 70V/100V networkable power amplifier built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. The CVA50-1 NET is designed with a network only signal input, it is designed to connect to an existing network via Dante and receive its input through the network. This lightweight amplifier features Class D amplification technology and has a 1/3 rack width form factor.

Stewart Audio CVA50-1 NET Specifications:

  • CVA50-1 100V/70V: 50W
  • Frequency Response (+0, -3 dB): 100 Hz - 20 kHz
  • Power Bandwidth (+3, -3 dB): 80 Hz - 30 kHz
  • THD+N: < .1% @ Full Power
  • Signal-to-Noise Ratio: > 80dB
  • Remote Volume Control: 0 - 10V DC, 4 Pin Euro Block
  • Input Sensitivity: 0.5V (-3 dBV)
  • Standard Voltage Gain: 151X (43dB) @ 70.7 Volts out
  • Input impedance (Balanced/Unbalanced): 20kOhms/10k Ohms
  • Sleep, Idle Current Draw, 1/8 power draw: 3.3 /6.9 / 14.2 Watts
  • Amplifier Class: D
  • Input Connectors: RJ45, Euro Block 3 Pin, 3.5mm (NET+)
  • Output Connectors: Euro Block 2 Pin, 5mm
  • Power Supply: External in-line 48VDC (Included), 2 pin Euro Block
  • Cooling: Convection-Cooling (No Fans)
  • LED Indicators: Power, Signal Present & Clip
  • Construction: Aluminum Chassis & Top Cover
  • Dimensions (HxWxD): 1.25" x 6.00" x 4.00" (3.2x 15.2 x 10.2 cm)
  • Weight: < 1.2 lbs (0.54 kg)
  • Warranty: 3 years
  • Plenum Rating: UL 2043 Approved
