Datavideo Corporation AD-200
6 Channel Audio Delay - Mixer with Level Adjustment

OUR PART #:  AD-200

Datavideo's AD-200 Audio Delay allows you to adjust your audio levels and audio delay - so you can synchronize your audio and video.
Learn More
Our Price: $890.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Datavideo Corporation AD-200
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

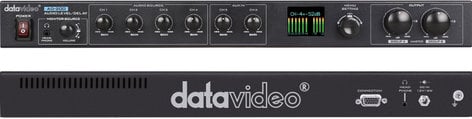

Datavideo's AD-200 Audio Delay allows you to adjust your audio levels and audio delay - so you can synchronize your audio and video. The unique two piece design places the remote control close to the operator and the audio I/O at a convenient place for the technical staff. For solo users with many mic and cable changes, you can put the I/O module in front of the rack too.

NOTE: The front unit connects to the rear section using a DB15 cable and a 3.5mm audio control cable. The rear section not only mounts to the rear of the rack, but it can also be placed above or below the control section to make audio cable connection more suitable.

What's in the Datavideo AD-200 Box:

  • AD-200 Main Unit
  • AD-200 Control Unit
  • Accessory List
  • AD-200 Quick Start Guide

Datavideo AD-200 Features:

  • 4-CH balanced audio inputs, 2-CH AUX inputsselectable of Mic/Line level
  • 4-CH balanced audio outputs, 2-CH unbalanced-audiooutputs
  • Support up to 3sec audio delay adjustment for eachinput channel
  • Audio level adjustment of each input
  • 6-CH Audio mixer and matrix router to 4-CH audiooutputs
  • Unique Two Piece Design

Datavideo AD-200 Specifications:

  • Audio Inputs: 4x XLR OR 2x RCA + 2x XLR (Stereo Pair)
  • Audio Outputs: 4x XLR OR 2x RCA + 2x XLR (StereoPair)
  • Aux: 2x Audio AUX Inputs
  • Volume Control: Audio Source Level Controls
  • Delay Adjustment: 0 ~ 3000 millisecond delay adjustment
