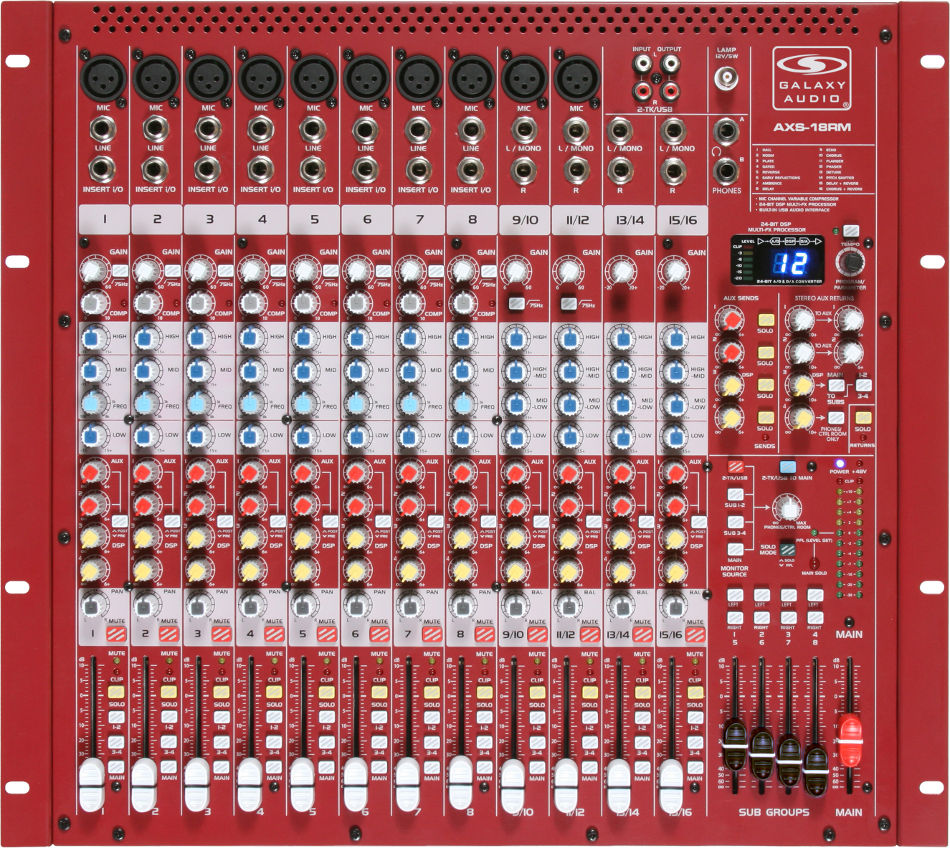

Galaxy Audio AXS-18RM
18-Channel Rackmount Mixer with USB Interface and Built-In DSP Effects

OUR PART #:  AXS-18RM

The Galaxy Audio AXS line features a full line of analog audio mixers. The AXS series offers 5 different desk top models with 3 available in a rack mount version.
Learn More
Our Price: $449.99
List Price: $699.99
You save 36%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Galaxy Audio AXS-18RM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Galaxy Audio AXS line features a full line of analog audio mixers. The AXS series offers 5 different desk top models with 3 available in a rack mount version. All models have a USB connection to link to a computer for stereo playback or recording and have +48V phantom power to the XLR inputs. Additionally, most XLR inputs provide an easy to use single knob compression. Most models feature a 3 band EQ with sweep-able mid-range, and low cut filter. All models include AUX sends on each channel which are either pre/post or switchable for monitoring/FX or external send.

All AXS models have built in Studio grade DSP FX with 16 effects. Effects include Reverb, Chorus, Flanger, Delay, Pitch Shifter, and Multi-Effects. Each effect has a storable user parameter and a tap button with a tempo light that provides for delay and echo settings.

Each channel also provides the user with Clip LEDs, Mute, Subgroup Routing, Solo, L/R Panning and PFL. The mono channels also feature 1/4" TRS inserts for flexible connection to outboard effects and processing. Whether using in a fixed install or on the road, the 60mm logarithmic faders and sealed rotary controls will provide clean, reliable sound.

Galaxy Audio AXS-18RM Features:

  • 16 Input, 10XLR Mic Input & 4 Stereo Inputs
  • 10 +48V Phantom Powered Mic Preamps
  • 8 Easy to use Built in Compressors
  • 3 Band EQ with Sweep Mids on Each Channel
  • 16 Effects with Tap
  • USB Audio Interface
  • 8 Channel Inserts
  • 4 AUX Sends Per Channel
  • PFL on Each Channel
  • Balanced Main Outputs

Galaxy Audio AXS-18RM Specifications:

  • Max. Input Level:  Mic +22dBu, Other Line +20dBu
  • Max. Output Level:  Main XLR +28dBu, Other Output +22dBu
  • Meters:  3 Color LED
  • Sensitivity:  0VU = +4dBu
  • Master Meter:  12 Segment, -30dB to clip
  • Channel meter:  Red LED, clip
  • Frequency Response:  +/- 1dB, 20Hz - 30KHz
  • Mic CMRR at 1kHz:  >70dB typical
  • THD+N at +14dBu at 1 kHz:  Mic to mix out <0.005%
  • Crosstalk (@1KHz):  Fader shutoff >89dB, Mute shutoff >89dB
  • Noise, RMS 20 Hz to 20 kHz: Mic Input E.I.N -129dBu
  • Main mix fader unity, Channel fader down <-95dBu(-97dB S/N)
  • Main mix fader unity, Channel fader unity <-82dBu(-86dB S/N)
  • Channel HPF:  18dB/oct below 75Hz
  • Mono EQ:
    • Lo:  +/-15dB shelving at 80Hz
    • Mid:  +/-15dB peak at 100Hz to 8kHz
    • Hi:  +/-15dB shelving 12kHz
  • Stereo EQ:
    • Lo:  +/-15dB shelving at 80Hz
    • Mid-Lo:  +/-15dB peak at 500Hz
    • Hi-Mid:  +/-15dB peak at 3kHz
    • Hi: +/-15dB shelving at 12kHz
  • DSP:
    • Converter:  24-bit sigma-delt, 64/128-times oversampling
    • Sampling Rate:  40 kHz
  • USB:
    • Audio:  Stereo In/Out
    • Connector:  Type B
    • Converter Bit Depth:  16-bit
    • Sampling Rate:  48 kHz
  • Power Supply:  110 - 240VAC,50/60kHz
  • Power Consumption:  50 watts
  • Fuse:  100 - 240VAC,T 1.6A, 250V, 5x20mm
  • Dimensions:  5.12" x 19" x 19.1" (130 x 483 x 485 mm)
  • Weight:  18 lb (8.14 kgs)
