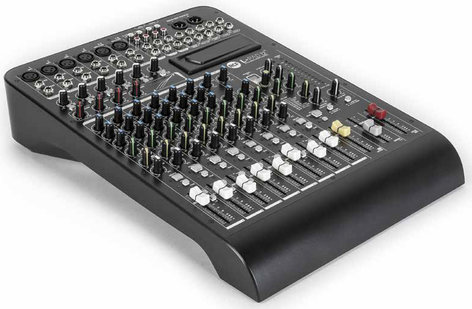

RCF L-PAD 12CX
12-Channel Mixer with Expansion Slot, Built-in Digital Effects and 4 Built-In Compressors

OUR PART #  LIVEPAD-12CX

Our Price: $419.00
List Price: $599.00
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

With six transparent sound mic inputs, four stereo line inputs and the 2tk in/ out, RCF's L-PAD 12CX is the ideal tool for small band gigs, complex conferences, corporate events and all situations where it is necessary to handle several signals. Four single-control compressors on mic channels help to handle even the more dynamic complex signals. The 99 preset Internal FX DSP allows the sound to be enhanced by adding accurate and warm effects. When not in use for Internal effects the FX send and the AUX sends allow small stage control, with the appropriate wedge monitors. The super versatile L-PAD slot permits the optional L-PAD MP3 Player, MP3 Player/Recorder or Bluetooth Connection cards to be inserted.

RCF L-PAD 12CX Features:

  • L-PAD 12CX offers a powerful internal effects DSP. The 99 preset selector allows you to choose between multiple warm effects.
  • The microphone preamp gives transparent sound with high-range gain scale and 75 Hz low cut filter
  • Long life ultra reliable 60mm faders, all passed along life use test including several tens of thousands of complete cycles.
  • Smooth-action, single-control dynamic compressors onchannels 1 through 4. Thanks to this feature even the most demanding signals are under control - one knob, great control.
  • Super versatile L-PAD Slot: One of the intelligent L-PAD option cards (sold seperately) may be installed, the MP3 Player, MP3 Player/Recorder, or the Bluetooth Connection cards. These optional cards expand your L-PAD mixer usability adding an internal music player, a super-intuitive recorder or allow you to connect any Bluetooth device to reproduce your favorite playlist
  • 6 mono inputs with 3-band EQ
  • 4 stereo inputs with 2-band EQ
  • 1 AUX Send
  • 1 FX Send

RCF L-PAD 12CX Specifications:

  • Mono Channels:
    • Microphone Input:  XLR Balanced
      • Frequency Response:  20 Hz - 22 kHz, +/- 1dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Gain Range:  0 dB to -50 dB
      • Max. Input:  +15 dB (balanced)
      • SNR:  < -100 dBr A-weighted
      • Phantom Power:  +48V with switch control
    • Line Input:  1/4" TRS Balanced
      • Frequency Response:  20 Hz - 22 kHz, +/- 1dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +15 dBu to -35 dBu
    • Compressor:
      • Gain:  0 ------> 9dB
      • Threshold:  20dB ------> 5dB
  • Stereo Input Channels:
    • Microphone Input:  XLR Balanced
      • Low Cut:  75 Hz
      • Line Input:  1/4" TRS or TRS/RCA unbalanced
      • Frequency Response:  20 Hz - 22 kHz, +/- 1dB
      • Distortion (THD+N):  < 0.03% @ +0 dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +15 dBu to -35 dBu
      • SNR:  < -100 dBr A-weighted
  • DSP Section:
    • A/D and D/A Converters:  24-bit
    • Type of Effects:  Echo, Echo+Verb, Tremolo, Plate, Chorus, Vocal Rotary, Small Room, Flange+Verb, Large Hall
    • Controls:  100 position preset selector (10 presets x 10 variations)
    • Foot Switch:  Mute switch & foot-switching with LED indicator. Tip = FX, Sleeve = GND
  • NOTE:  For full specifications on this product, refer to attached L-PAD Series Brochure under the Documentation Tab
