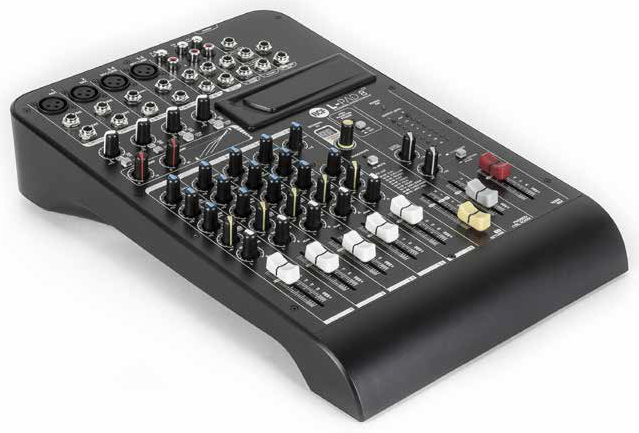

RCF L-PAD 8CX
8-Channel Mixer with Expansion Slot, Built-In Effects and 2 Built-In Compressors

OUR PART #  LIVEPAD-8CX

Our Price: $249.00
List Price: $359.00
You save 31%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

With four transparent sound mic inputs, three stereo line inputs and the 2tk in/ out, L-PAD8C is the ideal tool for duo/trio gigs, speech, background music diffusion and parties. Two single-control compressors on mic channels help to handle even the more dynamic complex signals. The 99 preset internal FX DSP allows the sound to be improved by adding accurate and warm effects. The super versatile L-PAD slot permits the optional cards L-PAD MP3 Player, MP3 Player/Recorder or Bluetooth Connection cards to be inserted for even more flexible use.

Thanks to the accurate Italian design L-PAD 8C is easy to grab, transport and handle in all situations.

RCF L-PAD 8CX Features:

  • Long-life ultra-reliable 45mm faders. All the faders passed a long life use test including several tens of thousands of complete cycles.
  • Smooth-action, single-control dynamic compressors on channels 1 & 2. Even the most demanding signals are under control thanks to this feature - one knob, great control.
  • Powerful internal DSP effects:  The 99 presets selector allows you to choose between many different built-in digital effects.
  • Super-versatile L-PAD Slot:  One of the intelligent L-PAD option cards (sold seperately) may be installed, the MP3 Player, MP3 Player/Recorder, or the Bluetooth Connection cards. These optional cards expand your L-PAD mixer usability adding an internal music player, a super-intuitive recorder or allow you to connect any Bluetooth device to reproduce your favorite playlist.
  • 4 mono inputs with 3-band EQ
  • 3 stereo inputs with 2-band EQ
  • 1 FX Send

RCF L-PAD 8CX Specifications:

  • Mono Channels:
    • Microphone Input:  XLR Balanced
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% at +0dB, 22 Hz - 22 kHz A-weighted
      • Gain Range:  0dB to -50dB
      • Max. Input:  +15dB
      • Low Cut:  75 Hz
      • SNR:  < -100dBr A-weighted
      • Phantom Power:  +48V with switch control
    • Line Input:  1/4" TRS balanced
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% at +0dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +15dB to -35dB
    • Compressor:
      • Gain:  0 -------> 9dB
      • Threshold:  20dB -------> 5dB
  • Stereo Input Channels:
    • Mic Input:  XLR Balanced
      • Low Cut:  75 Hz
      • Line Input:  1/4" TRS or TRS/RCA unbalanced
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% at +0dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +15dB to -35dB
      • SNR:  < -100dBr A-weighted
  • DSP Section:
    • A/D and D/A Converters:  24-bit
    • Effect Types:  Echo, Echo+Verb, Tremolo, Plate, Chorus, Vocal Rotary, Small Room, Flange+Verb, Large Hall
    • Controls:  100 position preset selector (10 presets x 10 variations)
    • Foot Switch:  Mute switch and foot-switching with LED indicator. TIP = FX, SLEEVE = GND
  • NOTE:  For full specifications on this product, refer to attached L-PAD Series Brochure under the Documentation Tab

Click to download

RCF L-PAD 8CX
8-Channel Mixer with Expansion Slot, Built-In Effects and 2 Built-In Compressors

OUR PART #  LIVEPAD-8CX

Product Information:

With four transparent sound mic inputs, three stereo line inputs and the 2tk in/ out, L-PAD8C is the ideal tool for duo/trio gigs, speech, background music diffusion and parties. Two single-control compressors on mic channels help to handle even the more dynamic complex signals. The 99 preset internal FX DSP allows the sound to be improved by adding accurate and warm effects. The super versatile L-PAD slot permits the optional cards L-PAD MP3 Player, MP3 Player/Recorder or Bluetooth Connection cards to be inserted for even more flexible use.

Thanks to the accurate Italian design L-PAD 8C is easy to grab, transport and handle in all situations.

RCF L-PAD 8CX Features:

  • Long-life ultra-reliable 45mm faders. All the faders passed a long life use test including several tens of thousands of complete cycles.
  • Smooth-action, single-control dynamic compressors on channels 1 & 2. Even the most demanding signals are under control thanks to this feature - one knob, great control.
  • Powerful internal DSP effects:  The 99 presets selector allows you to choose between many different built-in digital effects.
  • Super-versatile L-PAD Slot:  One of the intelligent L-PAD option cards (sold seperately) may be installed, the MP3 Player, MP3 Player/Recorder, or the Bluetooth Connection cards. These optional cards expand your L-PAD mixer usability adding an internal music player, a super-intuitive recorder or allow you to connect any Bluetooth device to reproduce your favorite playlist.
  • 4 mono inputs with 3-band EQ
  • 3 stereo inputs with 2-band EQ
  • 1 FX Send

RCF L-PAD 8CX Specifications:

  • Mono Channels:
    • Microphone Input:  XLR Balanced
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% at +0dB, 22 Hz - 22 kHz A-weighted
      • Gain Range:  0dB to -50dB
      • Max. Input:  +15dB
      • Low Cut:  75 Hz
      • SNR:  < -100dBr A-weighted
      • Phantom Power:  +48V with switch control
    • Line Input:  1/4" TRS balanced
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% at +0dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +15dB to -35dB
    • Compressor:
      • Gain:  0 -------> 9dB
      • Threshold:  20dB -------> 5dB
  • Stereo Input Channels:
    • Mic Input:  XLR Balanced
      • Low Cut:  75 Hz
      • Line Input:  1/4" TRS or TRS/RCA unbalanced
      • Frequency Response:  10 Hz - 55 kHz, +/- 3dB
      • Distortion (THD+N):  < 0.03% at +0dB, 22 Hz - 22 kHz A-weighted
      • Sensitivity Range:  +15dB to -35dB
      • SNR:  < -100dBr A-weighted
  • DSP Section:
    • A/D and D/A Converters:  24-bit
    • Effect Types:  Echo, Echo+Verb, Tremolo, Plate, Chorus, Vocal Rotary, Small Room, Flange+Verb, Large Hall
    • Controls:  100 position preset selector (10 presets x 10 variations)
    • Foot Switch:  Mute switch and foot-switching with LED indicator. TIP = FX, SLEEVE = GND
  • NOTE:  For full specifications on this product, refer to attached L-PAD Series Brochure under the Documentation Tab

Click to download
