Lectrosonics DNTWP
DNT Series 2x2 Dante Wallplate Interface

OUR PART #:  DNTWP

DNT Series processors operate as native DanteTM devices to integrate analog and digital network signals in a seamless manner.
Learn More
Our Price: $722.95
List Price: $735.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lectrosonics DNTWP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

DNT Series processors operate as native DanteTM devices to integrate analog and digital network signals in a seamless manner. Analog audio signals are converted to digital signals that are then processed and assigned to Dante network channels. Digital signals from the Dante network are processed in the same manner as analog signals, then sent back into the Dante network or converted to analog for mic/line outputs. The result is seamless integration of analog and digital audio signals into a common network where any signal assigned to a Dante transmit channel is then available at any receiving device connected to the network.

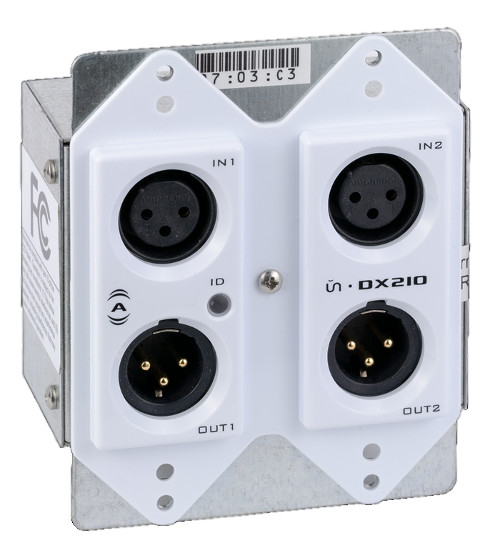

The DNTWP Dante™ Audio Interface is a cost effective multi IO wall box. The unDX2IO features two balanced mic/line XLR inputs and two balanced XLR line outputs. All inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX2IO is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power and data) is provided by a single CAT-5 cable. The unDX2IO’s size and IO density make it easy to put Dante connectivity wherever it’s needed near the audio source or sink thereby eliminating costly and interference prone analog wiring.

DNTWP Features:

  • 2 balanced XLR mic/line inputs
  • 2 balanced XLR line outputs
  • 802.3af compliant PoE powered to work with any compliant PoE network switch
  • Three input gains accommodate common line levels, phantom power and dynamic mics. Input gains are adjustable via software on a per input basis
  • +48V Phantom power per channel powers virtually all types of phantom powered microphones typically used in installed AV systems
  • ID LED allows easy identification of which unDX2IO Attero Tech’s Unifysoftware is communicating with

DNTWP Specifications:

  • Mic/Line Input Type: Balanced and RF filtered 3-pin depluggable
  • Phantom Power: +48V, software selectable
  • Mic/Line Gain: 0dB, +25dB, +40dB, software selectable
  • Input impedance: >1.8K ohms at any gain setting
  • Equivalent Input Noise: 115dBu (+40dB gain)
  • Maximum Input Levels: +8dBu @ 0dB gain, 16dBu @ +25dB gain, 31dBu @ +40dB gain
  • Output Type: Balanced line level with automatic muting on loss of Dante signal
  • Output Gain: 0dB
  • Output Noise: <90dBu @ 0dB gain
  • Maximum Output Level: +12dBu
  • System THD: 01% at any gain, input signal 3dB below maximum
  • PoE Class: Class 0 802.3af PoE PD compliant
  • Certifications: FCC Part 15 Class A, CE (EN 60950 and EN 55022 Class A)
  • Dimensions: 3.60” W x 2.75” H x 1.88” D
  • Operating Temperature: 0°C - 40° C
