Belden FS15BNC-R
25 Pack of BNC F/Mini Coax Connectors

OUR PART #:  FS15BNC-R

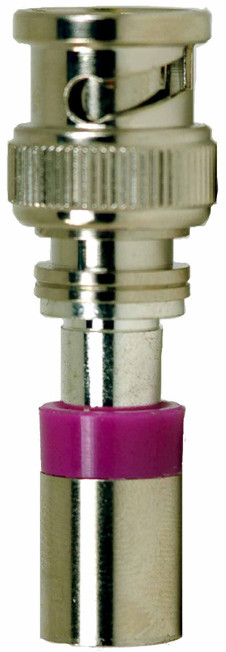

The FS15BNC is our Mini “BNC” type connector that fits most brands of 22-24AWG coaxial cable.
Learn More
Our Price: $68.48

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Belden FS15BNC-R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The FS15BNC is our Mini “BNC” type connector that fits most brands of 22-24AWG coaxial cable.

Specifications:

  • Coax Sizing (inches) Min ~ Max
    • Center .015 ~ .025
    • Dielectric .195 ~ .105
    • Outer Jacket .145 ~ .160
  • Coax Sizing (mm) Min ~ Max
    • Center .38 ~ .64
    • Dielectric 2.41 ~ 2.67
    • Outer Jacket 3.68 ~ 4.06
  • 75 Ohm Construction
  • DC-1 GHz > 23 dB Return Loss < 1.16 VSWR
  • DC-2 GHz > 20 dB Return Loss < 1.20 VSWR
  • DC-3 GHz > 20 dB Return Loss < 1.20 VSWR
  • Cable Pullout Force: Exceeding 50 in/lbs.
  • Body Material: Brass
  • Body Material (Plating): Nickel
  • Center Contact: Brass
  • Center Contact (Plating): Gold
