Pelican Cases 9470RS

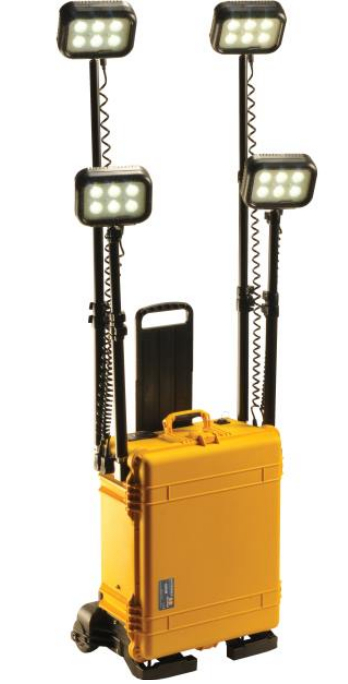

Remote Area Lighting System with Wireless Activation & Built-In Dolly System

OUR PART #:  9470RS

For the maximum in portable area lighting, Pelican offers the 4 head 9470, a 12,000 lumen model. The 9470RS model adds 3 new great features to make it even more useful.
Learn More
Interior Storage View of 9470RS
Profile View of 9470RS Unit Assembled
Angled View of Black Version of 9470RS

Click a thumbnail to see more images. (5 total)

Selected Model Price: $3,400.75
List Price: $4,152.31
Save up to 18%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Pelican Cases 9470RS
Select model: (shipping times are approximate)

Similar Products

For the maximum in portable area lighting, Pelican offers the 4 head 9470, a 12,000 lumen model. The 9470RS model adds 3 new great features to make it even more useful. This Remote Area Light includes three additional features from the standard 9470, 1) remote control activation, 2) multi-terrain trolley and 3) a 12volt power supply port.

The remote control allows for activation and deactivation from over 60 feet away. Each unit comes equipped with two remote controls. The multi-terrain trolley allows for easier transport across rough surfaces. The large 1.5 inch polyurethane wheels play a large roll in this benefit. Everyone can benefit from the 12 volt power supply port which can be used to power any electrical product that utilizes a standard 12v vehicle style connector (up to 4 amps), like lap top computers, cell phones, etc.

All other features on the 9470RS are the same as found on the standard 9470 including the four LED light heads producing 12,000 lumens of light (with telescoping 6 foot poles), Intelligent Control System which calculates and displays current battery life, allowing the user to regulate the intensity of the light and choose the desired run time, a Pelican 1610 protector case that contain and protect all components during travel and storage, a self contained rechargeable battery and battery charger.

A tripod and extension cord are available accessories (sold separately). The 9470RS is available in either black or yellow cases and backed by the company’s legendary Guarantee of Excellence. Truly the 9470RS now offers the very best in remote area lighting products.

Pelican 9470RS Specifications:

Light Source

  • LED Type: High Flux LED
  • LED Life: 50000 hrs.
  • Tested Lumen Value:
      -  1000 (Low)
      -  12000(High)
  • Lamp Heads: 4
  • Number of LEDs: 6 LEDs per head
  • Beam Spread: 120°
  • Brightness Settings: Variable
  • IP Rating (Ingress Protection): IP54

Power Source

  • Battery Type: 12v Rechargeable, Sealed
  • Battery Burn Time:
  • 40 hrs. (Low)
  • 7 hrs. (High)
  • Battery Charging Time: 8 hrs. from fulldischarge
  • Battery Life: 500 cycles
  • Low Battery Warning: iControl
  • 12V Primary Sockets:4
  • 12V Auxiliary Sockets: 1
  • Watts: 0
  • Voltage: 12

Dimensions & Weight

  • Head Length: 6.5" (16.5 cm)
  • Head Width: 7.87" (20 cm)
  • Head Depth: 2.56" (6.5cm)
  • Width Closed: 19.57" (49.7 cm)
  • Length Closed: 24.83" (63 cm)
  • Height Closed: 11.93" (30.3cm)
  • Mast Height Extended: 72.85" 0" (185 cm) (0cm)
  • Cord Length (Retracted): 13.78" 0" (35 cm) (0cm)
  • Weight: 110 lbs. (49.9 kg)


  • CE Approval: Approved
  • CE Certificate Certificate: Yes
  • RoHS (Restriction of Hazardous Substances) Compliant: Approved
