ikan Corporation D5W-DK-E6
D5w Field Monitor Deluxe Kit with Canon LP-E6 Compatible Battery

OUR PART #:  D5W-DK-E6

Here's Tilta's D5W-DK-E6 Field Monitor Deluxe Kit from ikan, featuring an ikan Tilta model IBC-E6+ (LP-E6 Compatible) Battery.
Learn More
Our Price: $1,149.00
List Price: $1,260.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ikan Corporation D5W-DK-E6
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

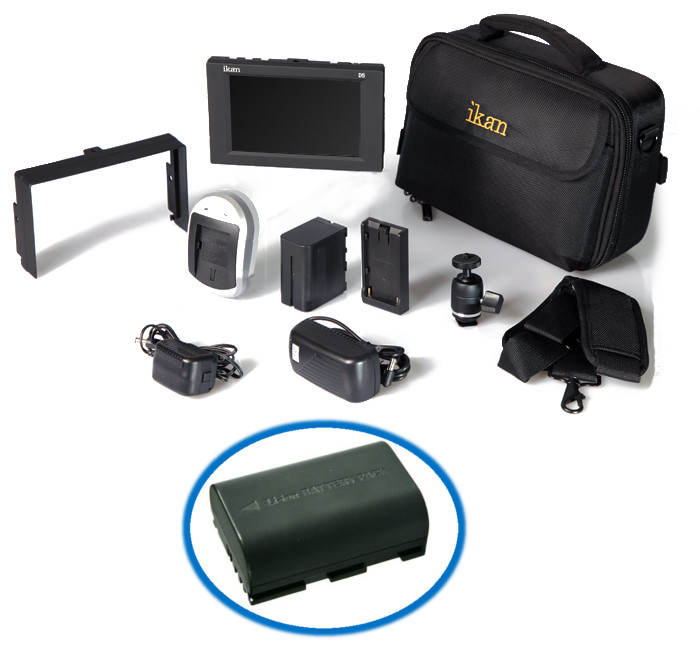

Here's Tilta's D5W-DK-E6 Field Monitor Deluxe Kit from ikan, featuring an ikan Tilta model IBC-E6+ (LP-E6 Compatible) Battery.  The D5W-DK-E6 kit consists of the D5W 5.6" 3G-SDI LCD Monitor w/ Hi-Def Panel (Waveform), IBC-E6+ (Canon LP-E6 Compatible) battery, ICH-E6 (Canon LP-E6 Compatible) charger, BP5-E6 (Canon LP-E6 Compatible) battery plate, IBG-SC soft case, SM201 ultra-heavy duty camera shoe mount, and monitor visor.

Highlights of the ikan Tilta D5W LCD Monitor:

Peaking
The D5 is equipped with both Monochrome and Color Peaking features, which highlight the desired focus area in a bright, RED outline. The operator adjusts the focus control until the RED indicator outlines on the desired area are razor sharp, indicating optimal focus. For the best results, be sure the subject is properly exposed.

False Color
The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/ over luminance warning enables the video professional to get the quality he/ she desires every time. By adjusting the camera’s Iris, the subject of the image will change color based on specific brightness values indicating optimal exposure.

DSLR Scaling
The DSLR Scaling function enables users to extend their DSLR camera’s HDMI video output to any option of four: Normal, 3:2, 16:9 or Full Screen – convenience made simple.

Movable pixel-to-pixel
The D5’s 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail.

Clip Guides
The D5 offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. The operator simply assigns the upper IRE to their preference and any exposure over the set IRE limit will flash in a vivid purple, indicating only the over exposed area.

NOTE: Picture shown is for illustrative purposes.  Actual product appearance may vary slightly.


What's Included with the ikan Tilta D5W-DK-E6 Kit:

  • 5.6" 3G-SDI LCD Monitor w/ Hi-Def Panel (Waveform) (D5w)
  • DV Battery
  • DV Battery Charger
  • DV Battery Plate
  • Soft Case (IBG-SC)
  • Monitor Visor
  • SM201 (SM201)

ikan Tilta D5W Monitor Features:

  • 1280 x 800 HD panel
  • Waveform, Vector Scope, & RGB Parade
  • False color with adjustable under luminance and overluminance warning
  • Clip guide with adjustable threshold
  • Peaking with Red Outline
  • DSLR Scaling


ikan Tilta D5W Monitor Specifications:

  • Diagonal (inch): 5.6-inch
  • Resolution: 1280 X 800
  • LCD Brightness: 300 NIT
  • Contrast Ratio: 400:1
  • Viewing angles: 160(H) 160 (V)
  • Operating Volts: DC6 to 24V
  • Dimensions: 4.1"H x 6.5"W x 0.9"D
  • Weight : 0.6
  • Shipping Weight: 5 lbs.
  • Inputs: 3G-SDI, HDMI
  • Video Outputs: 3G-SDI
  • Audio Output: Headphone
