Cables To Go 29223

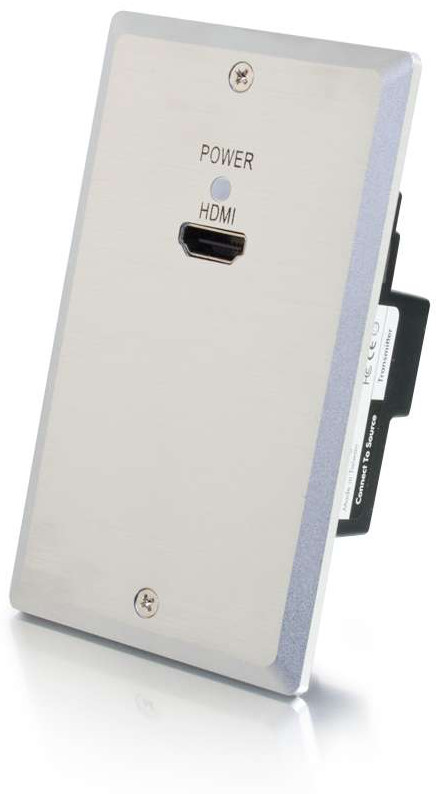

Single Gang HDMI Over Cat5 Extender Wall Plate Transmitter in Aluminum

OUR PART #:  29223

The TruLink® HDMI over Cat5 allows HDMI audio/video signals to be extended over a single Cat5/Cat5e/Cat6 unshielded twisted pair cable up to 300ft at a 1080p resolution*.
Learn More
Our Price: $230.95
List Price: $299.99
You save 23%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Cables To Go 29223
Qty:
In Stock

Similar Products

The TruLink® HDMI over Cat5 allows HDMI audio/video signals to be extended over a single Cat5/Cat5e/Cat6 unshielded twisted pair cable up to 300ft at a 1080p resolution*. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. The transmitter and receiver are available in either a wall plate or box form factor and are interoperable allowing this solution to meet the needs of the installation environment. In addition, this solution utilizes TruChoice™ power providing the flexibility to power at either the transmitter or receiver end. HDBaseT technology allows the Extended Display Identification Data (EDID) signals, i.e. communication of the display's capabilities, to pass through the extension solution ensuring that the content from the source is sent at the optimal resolution for the display. Built-in power surge protection and high ground loop immunity ensure high performance signal extension.
*Longer distances can be achieved at lower resolutions.

Cables To Go 29223 Specifications:

  • Signal Specifications:
    • Video Signal Support - HDMI
    • Maximum Video Resolution - 1080p
    • Maximum Cable Distance - 300 ft*
    • Recommended Category Cable - Solid Cat5e or Cat6*
      *Solid conductor Cat5or Cat6 cabling is recommended for use with the digital products, HDMI and HDMI with RS232. Coiling of excess cable lengths should be avoided for best performance results. Shielded, solid conductor Cat5 or Cat6 cabling isrecommended if a cable must be coiled or is run near other high-frequency signaling cables.
  • Power Adapter Specifications:
    • Input Voltage - 100-240V
    • Output Voltage/Amperage - 18V, 1.0A
    • Cable Length - 1.5m
    • Plug Diameter - 4.75mm
    • Center Pin Polarity - Positive
  • Physical Characteristics:
    • Video Input/Output Port - HDMI Female
    • Data Input/Output Ports - RJ45 Female
