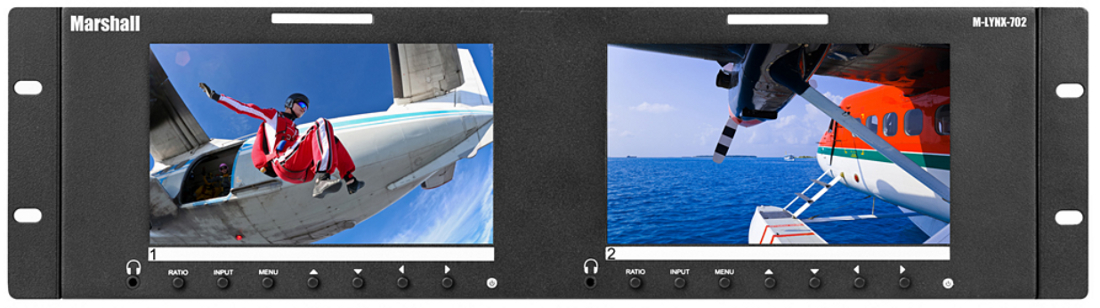

Marshall Electronics M-LYNX-702
Dual 7" Rackmountable 1024 x 600 LCD Display


The Marshall Electronics M-LYNX-702 is a dual 7" LCD display that is a feature-packed, economical solution perfect for fly-packs, control rooms...
Learn More
Our Price: $670.00
List Price: $789.00
You save 15%!
Write the first review.
Marshall Electronics M-LYNX-702
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The Marshall Electronics M-LYNX-702 is a dual 7" LCD display that is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications.  Multiple video inputs set this product apart from similar-looking products.  With the M-LYNX-702, you are not limited to the single SDI connector you may find on competitor models.  With a full complement of digital and analog connections for each screen, when the unexpected happens, you will be ready.  Standard power and tally connections as well as a logical menu structure make this display an easy choice for flexible system designs.

Marshall Electronics M-LYNX-702 Features:

  • High resolution 1024 x 600, bright, colorful display with no-compromise input selections for each screen
  • Digital inputs: HDMI, 3GSDI with loop-through (auto selects HDSDI/SDI)
  • Analog inputs: Component and Composite with loop-through
  • Special features: Selectable markers, 1:1 pixel mapping, Over scan and H/V delay modes, P-P, View individual colors
  • Audio de-embedding and monitoring via front panel headphone jacks
  • Built-in LED tally indicators (Red, Green, Yellow)
  • Slim design and 3RU size
  • Power using included 12-volt supply or use standard 4-pin XLR
  • Selectable English and Spanish on-screen displays

Marshall Electronics M-LYNX-702 Specifications:

  • Display (Viewing Area): Dual 7" Diagonal, 3RU high
  • Resolution (Pixels): 1024 x 600
  • Viewing Angle: 150°
  • Active Area: 6.05" W x 3.54" H (153.6 x90 mm)
  • Brightness (in cd/m²): 250
  • Aspect Ratio: 16:9
  • Contrast Ratio: 700:1
  • Digital Video Inputs:
    • 3GSDI x1 (conforms to SMPTE-292M, 259M, 424M) with loop-out
    • HDMI x1
  • Analog Video Inputs:
    • Component YPbPr x1 (loop-out)
    • Composite x1 (loop-out)
  • Audio Inputs: Accepts HDMI and SDI embedded audio plus analog L, R via RCA
  • Audio Outputs: Front panel 3.5mm stereo headphone jack
  • Control Inputs:
    • Tally
    • Mini USB Service Port
  • Dimensions: 19" W x 5.2" H x 1.7" D
  • Approx. Weight: 5 lbs
  • Power Consumption: 7 to 16-volts DC, 12-volts typical via 5.5mm jack or 4-pin XLR
