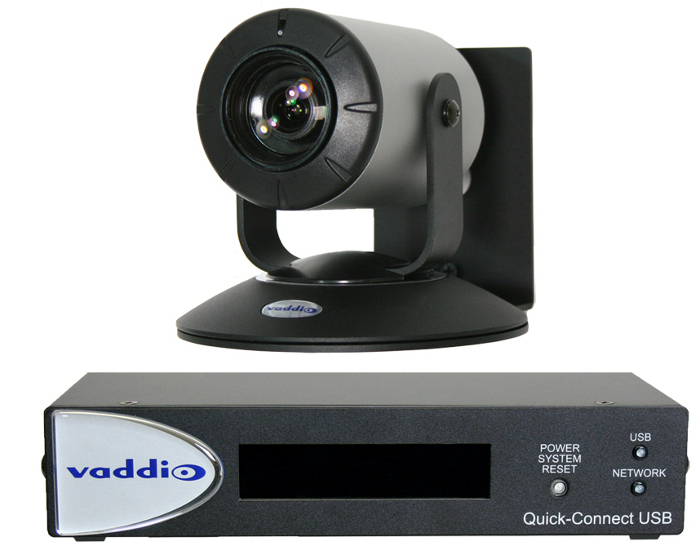

ZoomSHOT HD Camera System with Quick-Connect USB Interface


Vaddio’s ZoomSHOT high definition point-of-view camera is based on Vaddio’s award-winning ClearVIEW HD-19 PTZ camera technology.
Learn More
Sale Price: $1,190.57
List Price: $2,595.00
You save 54%!
Write the first review.
In Stock

Related Products

Vaddio’s ZoomSHOT high definition point-of-view camera is based on Vaddio’s award-winning ClearVIEW HD-19 PTZ camera technology. Built around a 1/3-Type Exmore high-speed, low-noise CMOS image sensor with a total of 1.3 Megapixels, the ZoomSHOT provides a 19x Optical Zoom with a 58-degree field of view and outputs up to 1080p60/50. Manual pan and tilt positioning allows for simple, yet precise control.

Vaddio’s complementary QuickSET mounting system offers simple installation by just positioning the camera to a required shot and locking it in place. Outputs include USB 2.0 with HD UVC/UAC, IP control and streaming (RTSP or HLS), component HD (YPbPr) and HDMI.

What's in the Box (Part Number: 999-6919-000):

  • One (1) ZoomSHOT HD Camera (998-6919-000)
  • One (1) Vaddio IR Remote Commander
  • One (1) Quick-Connect USB Interface (998-1105-038)
  • One (1) 24 VDC, 2.0 A Power Supply with Power Cordfor North America
  • One (1) 6’ (1.83m) USB Type-A to Type-B Cable (Black)
  • One (1) Thin Profile Wall Mount with MountingHardware
  • One (1) EZCamera Cat-5 Control Adapter (RJ-45-F toDB-9-F)
  • Documentation


  • 19x Optical zoom lens
  • 1.3 Megapixel 1/3-Type Exmor high-speed CMOS ImageSensor
  • Outputs include USB 2.0 with HD UVC/UAC, IP controland streaming (RTSP or HLS), component HD (YPbPr) and HDMI.
  • 0.7 LUX Rating for low-light environments
  • Includes PowerRite power supply, IR Remote and ACcord set
  • Manual pan and tilt positioning allows for simple,yet precise control
  • Thin profile wall mount and mounting hardwareincluded
  • Up to 150 feet (45.72m) over Cat. 5



  • Part Numbers
      -  ZoomSHOT WallVIEW USB System 999-6919-000(North America)
      -  ZoomSHOT WallVIEW USB System 999-6919-001(International)

ZoomSHOT Camera

  • Image Sensor: 1/3-Type Exmor High-speed, ProgressiveScan CMOS Sensor with 1.3 Megapixels
  • Video Output Resolutions:
      -  HD: 1080/59.94/50/30/25,1080i/59.94/50, 720p/59.94/50
      -  SD: 480p/59.94 &576p/50
  • Lens/ Focal Length: 19X Optical Zoom, F=4.5mm wide to85mm tele end (F1.6-F2.9), Min. Focus Distance 1.0m
  • Horizontal Viewing Angle: 58.1° Wide End to 3.2° TeleEnd - 16:9 Format
  • Video S/N Ratio: >52 dB
  • Minimum Illumination: 0.7 LUX (F1.6, 50IRE)
  • Serial Control Protocol: RS-232 (Modified VISCA)
  • Manual Pan/Tilt Range:
      -  Pan: Limited to service loop ofcabling, yoke and base are mechanical only
      -  Tilt: ±30°
      -  Invertible for Ceiling Mount
  • Preset Positions: Six (6) Programmed and Recalled viaIR Remote, 16 Programmed and Recalled with RS-232
  • Tally Light: Available through RS-232 Control

Camera Connectors:

  • Two (2) RJ-45 Jacks:
      -  EZ-Power VIDEO RJ-45 Jack for usewith Quick-Connect - Supplies power to the camera and returns differential HDvideo from the camera
      -  RS-232 RJ-45 Jack (RS-232 Communication)
  • HD Video Select: 16-Position Rotary Switch - Used toset ZoomSHOT’s HD Video Resolution Output
  • Camera Settings:
      -  6-Position Dip Switch: For IR Freq.,Baud Rate 9600, Image Flip & Test Bars
      -  16-Position Rotary Switch forOutput Resolution Settings
  • Thin Profile Wall Mount:
      -  535-2000-237 (Provided withWallVIEW Systems)
      -  Black powder coating, Sized tofit on 1-gang wall box or drywall, mounting hardware included
  • User Controls: IR Remote Commander with OSD forcamera set-up and RS-232
  • Materials & Weight: Aluminum & Steel, Weight= 2.75643 lbs. (1.68kg)
  • Dimensions:
      -  Tube: 3” ( 76.2mm) Diameter x 4.75”(120.65mm) Long
      -  Base: 5.5” (139.7mm) Diameter
     -  Overall Height: 5.5” (139.7mm) Tall

Quick-Connect USB Interface

  • Video Outputs:
      -  USB 2.0 (MJPEG): Resolution up to720p/30 (USB 2.0 MJPEG)
      -  H.264 (IP) of Ethernet: Resolutionup to 1080p/30 (H.264 over IP
      -  Analog Component (YPbPr):Resolution up to 1080p/59.94
     -  HDMI: Resolution up to 1080p/59.94
  • USB Interface Connector: Type-B, USB 2.0 Compliant,Standard UVC (Universal Video Class) Drivers
  • Network Interface: Connector - RJ-45 (shielded),10/100 Base-T, Supported Protocols - RTSP and HLS Streaming
  • Streaming Protocols: IP - H.264 (RTSP and HLS), USB 2.0 - MJPEG (UVCstandard drivers)


  • Power: 5.5mm OD x 2.5mm ID Coaxial Connector
  • YPbPr: DE-15 (15-pinHD) Female
  • HDMI: HDMI Female
  • RS-232 IN: RJ-45 Jack
  • RS-232 OUT: RJ-45 Jack
  • EZ-Power Video: RJ-45 Jack (Power and Differential HDVideo)
  • Dip Switches: 5-Position - Color Space, Updating andFuture Use
  • H.264 Resolutions: CIF, 640x480 (VGA), 480p, 720p/30 1080p/30 (1080pEthernet only)

Front Panel:

  • 20 x 2 line Character Negative Mode LCD - DisplaysMAC (HW for Hardware) and IP Address
  • Power/System Reset - Tactile, flush mount, Back-litSwitch
  • Network LED: Indicates connectivity and activity
  • USB LED: Indicates Streaming Mode

Supported Media Players:

  • Quick-Time Media Play - Win 7 & Mac OS10X
  • VLC Media Player - Win 7 & Mac OS10X
  • Real Player - Win 7

Supported Browsers:

  • Internet Explorer
  • Safari
  • Safari/iOS
  • Chrome
  • Fire Fox


  • Power Supply: 24 VDC, 2.0 Amp
  • Dimensions: (H x W x D) ½-Rack Size - 8.375” (212.73mm) W x 6.0” (152.4mm) x 1.72” ( 43.688mm) H
  • Weight: 1.4 lbs. (0.635Kg)
  • Accessory: Rack Mount Adapter - 998-6000-004: 1-RU Offset mount (1-Longear & 1-Short Ear)
