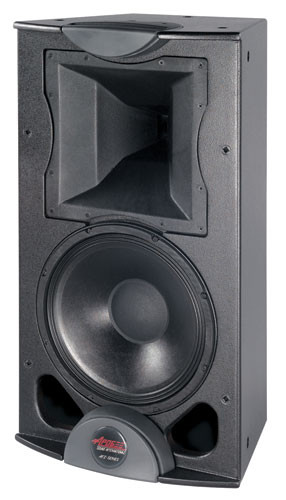

Apogee Sound (Bogen) AFI-4PSX
Passive Weatherized 12" Installation Loudspeaker in Black

OUR PART #:  106-0420

The Apogee Sound AFI-4PSX is a fully arrayable loudspeaker versatile enough for clubs, discos, churches, theaters, and theme parks.
Learn More
Our Price: $1,187.28
List Price: $1,494.65
You save 21%!
Write the first review.
Apogee Sound (Bogen) AFI-4PSX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Apogee Sound AFI-4PSX is a fully arrayable loudspeaker versatile enough for clubs, discos, churches, theaters, and theme parks. Much of this versatility comes from the available options that include a 60° x 45° or 90° x 45° horn as well as bi-amplification capabilities. These horns, as well as the logo plate, are rotatable to allow alternative hanging positions.

Apogee Sound AFI-4PSX Specifications:

  • Drivers:
  • LF: 12" (305mm) driver
  • HF: 1.75" (45mm) voice coil,
  • 1" (25.4mm) driver exit
  • Dispersion:
  • H: 60° x V: 45° (rotatable)
  • Frequency Response (1m on axis): 58 Hz to 20 kHz ± 3 dB
  • Max. SPL (@1m): 121 dB cont./127 dB peak
  • PTML (Peak Transient Mechanical Limit): AFI-4: 138 dB
  • Sensitivity (1W @ 1m): AFI-4: 99 dBspl/100 Hz to 4 kHz
  • HF: 103 dBspl/1.4 kHz to 5 kHz
  • Nominal Impedance: 8 Ohms, each driver
  • Max. Power Handling (cont./peak): 200 W cont./800 W peak | HF: 75 W cont./300 W peak
  • Dimensions:
  • front: 15.3"(389mm) W x 28.2"(716mm) H
  • rear: 9.9"(252mm) W x 28.2"(716mm) H
  • depth: 12.1"(307mm)
  • Weight: 53 lb. (24 kg)
