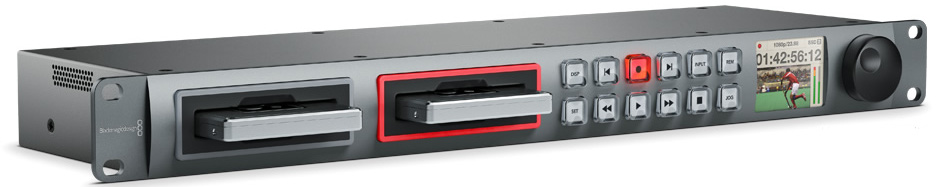

Blackmagic Design HyperDeck Studio Pro 2
SSD Broadcast Dual Recorder Deck with 6G-SDI, Analog, Thunderbolt, and HDMI 4K Connections

OUR PART #:  HYPERDECK-STUDIO-PR2

Blackmagic Design's HyperDeck Studio Pro records 4:2:2 SD/HD in full uncompressed quality plus Ultra HD in ProRes.
Learn More
Our Price: $1,895.25
List Price: $1,995.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design HyperDeck Studio Pro 2
Qty:
In Stock

Similar Products

Blackmagic Design's HyperDeck Studio Pro records 4:2:2 SD/HD in full uncompressed quality plus Ultra HD in ProRes.  Use ProRes 422 (HQ) or DNxHD compression for high-quality HD video in file sizes that provide 5 times longer recording than uncompressed.  For even longer recording use ProRes 422, ProRes 422 (LT) and ProRes 422 (Proxy).  HyperDeck Studio Pro features 6G-SDI, HDMI 4K and analog component connections, plus professional XLR audio and built-in Thunderbolt connectivity.  It includes a built-in power supply for convenience and the 1 rack unit size fits easily into any studio or portable rack.

Professional broadcast decks that use fast solid state disks

HyperDeck Studio disk recorders let you record the highest quality uncompressed and compressed ProRes and DNxHD video formats using fast 2.5" SSDs.  Designed with familiar VTR controls, HyperDeck Studio includes innovative features that extend beyond the capabilities of traditional decks.  Dual SSD slots let you record continuously, when one disk is full recording automatically continues on the next SSD.  You can mount an SSD recorded using HyperDeck Studio on to any computer to access your files, so you don't need multiple decks to work with your media.

Replace Aging Decks

HyperDeck Studio is a fantastic modern replacement for aging broadcast decks.  You get the same functionality and control of a professional deck with the advantage of recording directly to uncompressed or industry standard ProRes and DNxHD video formats. Connect cameras, switchers or any other video feed to HyperDeck Studio and create files that are perfect for every production and post production workflow.  With a slim 1 rack unit design, HyperDeck Studio is considerably smaller than a traditional VTR and fits easily into any equipment rack, OB vehicle or flyway kit.

Broadcast Video Quality

HyperDeck Studio records SD/HD 10-bit 4:2:2 uncompressed video for perfect broadcast quality.  With uncompressed video you can create the sharpest VFX plates for match moving, compositing and more.  You get deep dynamic color range for color correction and perfect keying without jagged edges.  You can also use industry standard compressed video formats that maintain incredible HD quality at reduced files sizes.  With HyperDeck Studio Pro you can now push quality to new heights, with additional support for Ultra HD 4K using Apple ProRes.

Industry Standard Formats

HyperDeck Studio models gives you the choice of recording quality.  You can record and play back incredible uncompressed 10-bit 4:2:2, or choose from high quality ProRes 422 (HQ) or DNxHD formats.  HyperDeck Studio Pro also has ProRes 422, ProRes 422 (LT) or ProRes 422 (Proxy)for longer recording.  Using ProRes 422 (Proxy) you can record over 24 hours of 1080HD video on a single 480GB SSD drive.  You could record for 2 days non stop before swapping SSD drives.

Unparalleled File Compatibility

HyperDeck Studio records universally compatible QuickTime files in 10-bit uncompressed or compressed DNxHD and ProRes formats so they can be used with all popular software packages, such as Final Cut Pro X, Adobe Premiere Pro CS6, After Effects CS6, Avid Media Composer 6, DaVinci Resolve and more.  Customers will always be free to choose the editing, color correction and finishing tools that are best for their clients and jobs.

Professional VTR functionality with features beyond tape

Continuous SSD Recording

HyperDeck Studio's single rack unit size fits easily into any equipment rack, flyaway kit or OB vehicle, and is great if you want to record or play back with live production switchers. With dual SSD slots you get unlimited duration recording, when a record disk fills then recording will automatically continue on to the next disk. Now you can record an entire event without missing a thing! HyperDeck Studio Pro also includes a Thunderbolt connection so you can capture directly into a computer or master to SSD.  With uncompressed, ProRes and DNxHD video formats HyperDeck Studio is the broadcast deck for the 21st century.

Professional Video Connections

HyperDeck Studio includes the highest quality 3G-SDI and HDMI connections, so you can connect to virtually any camera, monitor or SDI router.  Connect your camera's HDMI or SDI output and record the highest 10-bit uncompressed video, bypassing compression formats that cameras use to reduce file size.  HyperDeck Studio Pro includes analog component video and XLR audio connections, plus 6G-SDI for high bandwidth SDI formats and HDMI 4K for monitoring on the latest Ultra HD televisions.

Familiar VTR Controls

HyperDeck Studio features a familiar VTR style design and includes illuminated crystal buttons, a jog/shuttle wheel and RS-422 for external control.  The integrated high-resolution LCD screen displays timecode and transport information, plus a full color thumbnail preview of the current clip in record or playback.  You can also see video format and frame rate information, as well as audio levels, all on the same display.

Fast SSD Technology

HyperDeck Studio uses 2.5" solid state disks (SSDs) for reliable, fast video recording.  Now you can eliminate complicated and expensive disk arrays, as a single SSD lets you record either compressed or uncompressed video effortlessly.  You can even edit direct from the disk.  SSDs are extremely robust because they have no moving parts and can handle shocks and vibrations that would destroy conventional hard drives or videotapes.  Other removable media cards simply cannot match the level of performance and incredibly fast read/write speed of SSDs.

Connections:

  • SDI Video Input:
    • 3x 10-bit SD/HD/3G switchable
    • 1x 6G-SDI switchable
  • SDI Video Output:
    • 3x 10-bit SD/HD/3G/6G-SDI switchable
    • 1x 6G-SDI switchable
    • 1x 10-bit SD/HD/3G-SDI switchable Monitor Output
  • Analog Video Input: 1x Component YUV on 3 BNCs,supports HD and SD
  • Analog Video Output: 1x Component YUV on 3 BNCs,supports HD and SD
  • HDMI Video Input: 1x HDMI type A connectorincluding Ultra HD 4K support
  • HDMI Video Output: 1x HDMI type A connectorincluding Ultra HD 4K support
  • Analog Audio Input:
    • 2x XLR connectors for professional balanced analog audio
    • 2x RCA connectors for unbalanced analog audio from consumer equipment
  • Analog Audio Output: 2x XLR connectors forprofessional balanced analog audio
  • SDI Audio Input:
    • 16 channels embedded in SD and HD in QuickTime files
    • 2 channels in Avid DNxHD MXF files
  • SDI Audio Output:
    • 16 channels embedded in SD and HD in QuickTime files
    • 2 channels in Avid DNxHD MXF files
  • HDMI Audio Input:
    • 8 channels embedded in SD and HD in QuickTime files
    • 2 channels in Avid DNxHD MXF files
  • HDMI Audio Output:
    • 8 channels embedded in SD and HD in QuickTime files
    • 2 channels in Avid DNxHD MXF files
  • Timecode Input: 1x XLR connector for timecodeinput
  • Timecode Output: 1x XLR connector for timecodeoutput
  • SSD Interface: 2x 2.5" SATA 3Gb/s
  • Sync Input: Blackburst or Tri-Sync
  • Device Control: Sony™ compatible RS422 deckcontrol port
  • Recorder Control: 12 buttons and jog wheel forlocal control of HyperDeck Studio Pro or use either RJ45 Ethernet or USB 2.0high speed interface
  • Recorder Configuration: Front panel configurableor USB 2.0 high speed interface
  • Computer Interface:
    • 1x Thunderbolt™ port for capture of video and audio
    • 1x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control

Standards:

  • SD Format Support: 625/25 PAL and 525/29.97NTSC. 480p60 and 576p50 via HDMI only
  • HD Format Support: 720p50, 720p59.94, 720p60,1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25,1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
  • 4K Format Support: 3840x2160p23.98,3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE296M, SMPTE 425M
  • SDI Metadata Support: HD RP188 and closedcaptioning
  • Audio Sampling: Television standard sample rateof 48kHz and 24 bit
  • Video Sampling: 4:2:2
  • Color Precision: 10-bit
  • Color Space: REC 601, REC 709
  • Multiple Rate support: SDI and HDMI switchablebetween SD, HD and Ultra HD. SDI switches between 270 Mb/s standard definitionSDI, 1.5G-SDI HD, 3G-SDI and 6G-SDI. Analog SD/HD
  • Copy Protection: HDMI input is unable to capturefrom copy protected HDMI sources. Always confirm copyright ownership beforecapture or distribution of content
  • Codec Support: Uncompressed QuickTime, Apple ProRes 422 (HQ)QuickTime, ProRes 422 QuickTime, ProRes 422 (LT) QuickTime, ProRes 422 (Proxy)QuickTime, Avid DNxHD QuickTime, Avid DNxHD MXF

Extras:

  • Software Included: Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver
  • Displays: Built-in LCD for video, audio and timecode monitoring and menu settings
  • Physical Installation: 1 rack unit size. Less than 7" deep.
  • Power Supply: 1x built-in international AC power supply with IEC C14 inlet. 110-240V, 50-60Hz
  • Product Warranty: 12 Month Limited Manufacturer's Warranty
