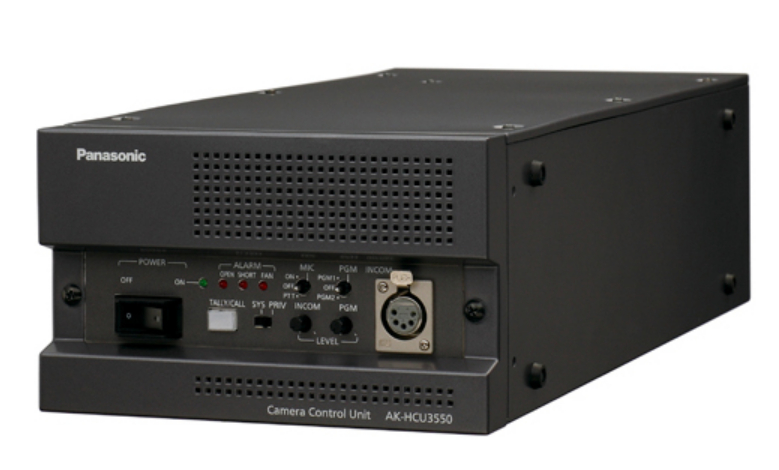

Panasonic AK-HCU3550
Compact Camera Control Unit for AK-HC3500 Studio Camera

OUR PART #  AK-HCU3550

Call for price! Not available online.
List Price: $22,390.00


The compact HCU3550 from Panasonic is ideal for studio and EFP systems built around the AK-HC3500 production/studio camera. It provides control of important camera functions and versatile connectivity in a compact, efficient, light weight package (22 lbs.) that has a low power draw and is only a half-rack in width.

Specifications:

  • Supports HD 1080i 59.94/50 , SD 587/50i and 480/59.94i
  • Half-rack width allows more compact system design for flypacks, vans, etc.
  • Low power consumption of 40W reduces heat dissipation and power consumption.
  • D.C. 12 V and A.C. 120 power connections.
  • Light weight - only 22 lbs
  • Optical Connector - LEMO
  • Communication Connector - D-sub 25
  • Digital Video Out - HD/SD-SDI Selectable BNC X 4 (1st pair must be the same)
  • Analog Video Output - BNC X 2 Composite/PM Selectable
  • SYNC - SD or HD Selectable - BNC X 1
  • Digital Video Input - RET Input BNC X 4, 1-HD-SDI Max 4 2-SD-SDI Max 4
  • Prompter Input - BNC Max 2
  • Communication - a) Tally Input, b) Incom Input, c) PGM Input X 2
  • Intercom - 1, 2W/4W/RTS
  • TRUNK Input / Output - RS422 X 2(D-sub9S-X-1)
  • Microphone or LINE X2
  • Embedded Audio - BNC X 4 (HD-SDI)
  • Reference - BB BNC X 1Tri-Level Sync BNC X 1
  • Ethernet LAN RJ45 for maintenance
  • Output Formats - 1080/59.94i/50.00i , 587/50.00i , 480/59.94i
  • RET IN Formats - 1080/59.94i/50.00i , 587/50.00i , 480/59.9

Panasonic AK-HCU3550
Compact Camera Control Unit for AK-HC3500 Studio Camera

OUR PART #  AK-HCU3550

Product Information:

The compact HCU3550 from Panasonic is ideal for studio and EFP systems built around the AK-HC3500 production/studio camera. It provides control of important camera functions and versatile connectivity in a compact, efficient, light weight package (22 lbs.) that has a low power draw and is only a half-rack in width.

Specifications:

  • Supports HD 1080i 59.94/50 , SD 587/50i and 480/59.94i
  • Half-rack width allows more compact system design for flypacks, vans, etc.
  • Low power consumption of 40W reduces heat dissipation and power consumption.
  • D.C. 12 V and A.C. 120 power connections.
  • Light weight - only 22 lbs
  • Optical Connector - LEMO
  • Communication Connector - D-sub 25
  • Digital Video Out - HD/SD-SDI Selectable BNC X 4 (1st pair must be the same)
  • Analog Video Output - BNC X 2 Composite/PM Selectable
  • SYNC - SD or HD Selectable - BNC X 1
  • Digital Video Input - RET Input BNC X 4, 1-HD-SDI Max 4 2-SD-SDI Max 4
  • Prompter Input - BNC Max 2
  • Communication - a) Tally Input, b) Incom Input, c) PGM Input X 2
  • Intercom - 1, 2W/4W/RTS
  • TRUNK Input / Output - RS422 X 2(D-sub9S-X-1)
  • Microphone or LINE X2
  • Embedded Audio - BNC X 4 (HD-SDI)
  • Reference - BB BNC X 1Tri-Level Sync BNC X 1
  • Ethernet LAN RJ45 for maintenance
  • Output Formats - 1080/59.94i/50.00i , 587/50.00i , 480/59.94i
  • RET IN Formats - 1080/59.94i/50.00i , 587/50.00i , 480/59.9
