Burst Electronics C2YC
Composite to S-Video (Y/C) Converter

OUR PART #:  C2YC

The C2YC format converter accepts an NTSC composite video input and splits it into Y/C (also called S-Video, S-VHS and Hi8).
Learn More
Our Price: $294.94
List Price: $300.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

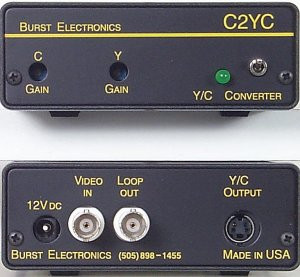

Burst Electronics C2YC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The C2YC format converter accepts an NTSC composite video input and splits it into Y/C (also called S-Video, S-VHS and Hi8). The C2YC converter is a 2 H Digital adaptive comb filter giving high precision Y/C separation. The Y (luminance) and C (chromance) signal levels can be individually adjusted.

Features:

  • Splits Composite into Y/C
  • Digital Comb Filter separation
  • High Precision Y/C separation
  • Loop thru input with termination resistor

Specifications:

  • Input/Output: 1 Volt standard video
  • Input Connector: Composite Video, BNC
  • Input Termination: 75 Ohms 1% or HiZ
  • Bandwidth: 10 MHz @ 0.5 dB
  • Output Impedance: 75 Ohms 1%
  • Output Connector: S-video, 4 Pin MiniDIN
  • Output Protection: Open or Short, infinite duration
  • S/N: 60 dB
  • Size: 4.1 W x 1.5 H x 5.5 D inches
  • DC Powered: 11-14 Vdc (see chart for current requirements)
  • Wall module (included): 120 VAC 60 Hz, 12 Vdc 500 mA, UL Listed
  • Warranty: Two Years Parts and Labor
