Altman PHX-19-S
750 Watt 19° Phoenix Ellipsoidal in Silver

OUR PART #:  PHX-19-SL

This 19° fixed focus Phoenix ellipsoidals from Altman Lighting is state of the art for luminaires in function, style, and efficiency.
Learn More
Selected Model Price: $336.00
List Price: $420.00
Save up to 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Altman PHX-19-S
Select model: (shipping times are approximate)
Qty:

Similar Products

This 19° fixed focus Phoenix ellipsoidals from Altman Lighting is state of the art for luminaires in function, style, and efficiency. This ellipsoidal has been designed and engineered with a number of innovative details and features enhancing versatility and efficiency without sacrificing performance. To broaden the capabilities of the fixture Altman offers it with the choice of either a GLA or HPL series lamp. Fully locking shutters and a 360° rotating barrel help keep the artistic part of your fixture’s focus intact and easy to attain, and with virtually no light leak from the fixture itself you won't have to worry about any extra light illuminating unwanted parts of the ceiling. The aesthetic appearance and ergonomically designed function controls only add to the appeal. All of these new and innovative options are what makes the Phoenix ellipsoidals ideal for theatres, night clubs, television studios, or wherever superior, energy efficient lighting performance is required.

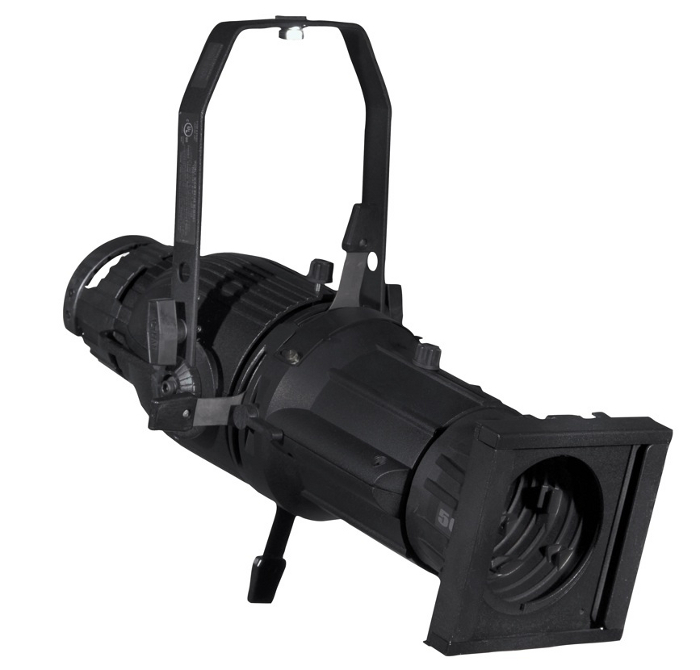

NOTE: Product shown in image is for illustrative purposes only. Actual product is SILVER in appearance.

Altman PHX-19-S Features:

  • Compatible with GLA or HPL series in 375W, 575W and750W compact filament lamps
  • 360° rotating barrel
  • Locking shutter
  • Completely enclosed accessory holder
  • Heat resistant Plano-Convex Lensing
  • Die cast aluminum and sheet metal fabrication
  • Color frame and spring clip safety cable included
  • Tool free interchangeable barrels
  • 3 foot power cable
  • C-Clamp included with fixture
  • 16 lbs.
  • ETL & cETL listed.
  • Made in the USA

Altman PHX-19-S Specifications:

  • Housing: Die-cast aluminum construction.
  • Materials: Construction employs corrosion-resistantmaterials and hardware.
  • Yoke: Rigid flat steel with dual locking dog tilthandles, two mounting positions, indexed tilt angle markings.
  • Reflector: Spring mounted dichroic coated glass,ellipsoidal design.
  • Lenses: Color coded crown glass (white plate) lensesprovided with anti-reflective coating. Molded front lens made out of polymericplastic for 5° and 10° units only.
  • Socket: G9.5 medium two pin GL or HPL lamp holderaxially mounted, supplied with heat shield. Tool free re-lamping.
  • Rating: 100, 120, 240 Volts AC/DC operation, 6.3/3.1Amps, 750 Watts maximum.
  • Cable: 36” Teflon leads incased in black fiberglasssleeving, rear cord wrap provided.
  • Shutters: Four .037” stainless steel, fullyadjustable and lockable. Constructed with oversized heat resistant handles.
  • Access Door: Reversible access door with thumbscrews.
  • Focusing Lamp: Fully adjustable in three axis withtwo concentric Ultem 2100 heat resistant knobs.
  • Focusing Fixture: Lens barrel travels on nylon glides. Provided with heat resistant lock knob.
