Apex Electronics APEX580
Large Diaphragm FET Multi-pattern Condenser Microphone


The Apex580 multi-pattern wide diaphragm condenser microphone is one of the most versatile microphones available for your studio toolkit.
Learn More
Our Price: $249.99
List Price: $299.99
You save 17%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Apex Electronics APEX580
In Stock

Similar Products

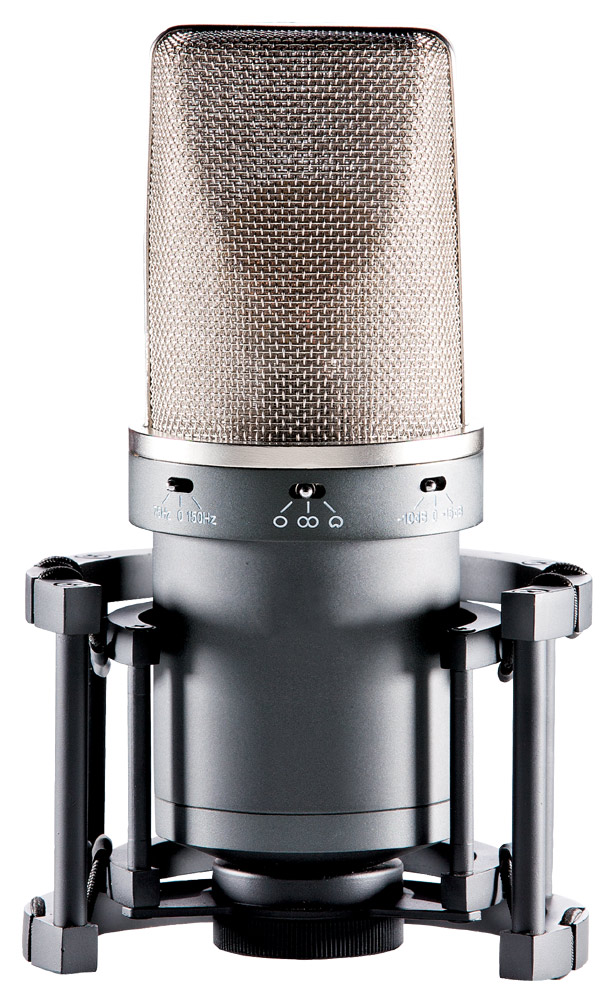

The Apex580 multi-pattern wide diaphragm condenser microphone is one of the most versatile microphones available for your studio toolkit. Three selectable polar patterns (cardioid, omnidirectional and figure-8), three position low frequency roll-off (selectable flat, 75Hz and 150Hz) and three position ( 0, -10 and -15dB) pad switch ensure the Apex580 can easily be applied to virtually any source.

The Apex580's is the ideal high performance microphone for solo vocals, but will also excel when used with solo brass or woodwind instruments, acoustic guitars or acoustic bass. The Apex580 excels anywhere superior sound quality is required, yet subtlety and clarity is paramount.

Controls on the microphone itself include a three-position pad switch, allowing distortion-free reproduction of extremely loud at-source signals, and a three-position low frequency roll off switch that reduces unnecessary low frequency interference. The included external heavy duty cradle-mount suspension virtually eliminates vibration and handling noise, while at the same time safely securing the microphone in any position needed during the recording process.


  • Multi-Pattern Large Diaphragm Condenser Microphone
  • 35mm Gold Sputtered Capsule
  • Two Position Pad Switch (-10dB & -15dB)
  • Two Position Roll-Off Switch (-6dB @ 75Hz & 150Hz)
  • Handles Extremely High SPL
  • Premium Heavy Duty Cradle Mount


  • Type:  Multi-Pattern Condenser
  • Filter Switch:  Flat / Low Cut @ 75 Hz / 150 Hz
  • Pad Switch:  0 / -10dB / -15dB
  • Frequency Response:  20Hz - 20kHz
  • Sensitivity:  -34dB +/- 2dB (0dB=1v/pa @ 1kHz)
  • Impedance:  <200 ohms
  • Equivalent Noise Level:  11dB (A-weighted)
  • Operating Voltage:  48V (Phantom Power) VDC
  • Max SPL:  148dB (1 kHz < 0.5% THD Attenuator Engaged)
  • Connection:  3-pin XLR
  • Dimensions:  2.91 x 7.6 in / 74 x 193 mm
  • Weight:  31.04 oz / 880 g
  • Includes aluminum case and windscreen
