DPA Microphones FIDBA33-M
d:fine™ Directional Headset with Medium Boom, Single Ear and 4 Pin Hirose Connector for AT, Black

OUR PART #:  FIDBA33-M

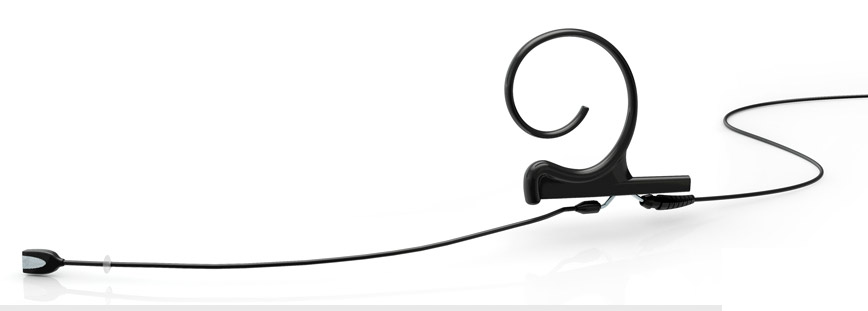

The FIDBA33-M is a single-ear 3.9" medium boom directional headset microphone with 4 Pin Hirose connector for AT wireless bodypacks.
Learn More
Our Price: $749.95
Call for Special Sale Price!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones FIDBA33-M
Qty:
In Stock

Similar Products

The FIDBA33-M is a single-ear 3.9" medium boom directional headset microphone with 4 Pin Hirose connector for AT wireless bodypacks.

Staying true to the DPA legacy, d:fine offers accurate, natural voice intelligibility and very high SPL capabilities – users can both speak and sing into the mic with no hint of distortion.

NOTE: The image shown is for illustrative purposes. Actual product appearance may vary depending on the model. In this case, the boom length varries depening on which model is purchased. 2 boom sizes are currently available; Medium (3.9") or Long (4.7"). Please contact your sales representative for more information on this and other products.

Features:

  • Pristine audio quality
  • Easy single-ear or dual-ear mounting
  • Minimal visual impact
  • Adapts to all pro wireless systems

Specifications:

  • Directional characteristics:  Directional
  • Principle of operation:  Pressure or pressure gradient
  • Cartridge type:  Pre-polarized condenser
  • Frequency range:  20 Hz - 20 kHz
  • Frequency range, ± 2 dB:  Omni: 20 Hz - 20 kHz with 3 dB soft boost at 8 - 15 kHz. Directional: 100 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz.
  • Sensitivity, nominal, ± 3 dB at 1 kHz:  6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted:  Omni: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)). Directional: Typ. 28 dB(A) re. 20 µPa (max. 30 dB(A)).
  • Equivalent noise level, ITU-R BS.468-4:  Omni: Typ. 38 dB (max. 40 dB). Directional: Typ. 40 dB (max. 42 dB).
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):  Omni: Typ. 68 dB(A). Directional: Typ. 66 dB(A).
  • Total Harmonic Distortion (THD):  <1 % up to 123 dB SPL peak; <1 % up to 120 dB SPL RMS sine
  • Dynamic range:  Omni: Typ. 97 dB. Directional: Typ. 95 dB.
  • Max. SPL, peak before clipping:  144 dB
  • Output impedance:  From MicroDot: 30 - 40 ohm. From DAD6001-BC: 100 ohm.
  • Cable drive capability:  Up to 300 m (984 ft) with DAD6001-BC XLR adapter
  • Output balance principle:  Signal balanced with DAD6001-BC XLR adapter
  • Common Mode Rejection Ratio (CMRR):  > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter
  • Power supply (for full performance):  Min. 5 V to max. 50 V through DPA adapter for wireless systems. 48 V phantom power ± 4 V with DAD6001-BC XLR adapter.
  • Current consumption:  Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter.
  • Connector:  MicroDot
  • Color:  Black
  • Weight:  Microphone boom: 0.8 g (0.03 oz); earhook: 1.1 g (0.04 oz); cable: 6.6 g (0.23 oz). Total: 8.5 g (0.30 oz).
  • Microphone head size (h x w x d):  9.5 x 5.3 x 2.9 mm (0.37 x 0.21 x 0.11 in)
  • Capsule diameter:  5.4 mm (0.2 in)
  • Mic boom lengths: 3.9 inches (100 mm )
  • Cable length:  1.3 m (4.3 ft)
  • Cable color:  Black
  • Cable diameter:  1.6 mm (0.06 in)
  • Polarity:  +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)
  • Electro Magnetic Compatibility (EMC):  Fully compatible
  • Temperature range:  -40 °C to 45 °C (-40 °F to 113 °F)
  • Relative Humidity (RH):  Up to 90%

Includes:

  • Make-up and moisture filter pre-mounted on the mic
  • Cable clip which anchors the cable to your clothing
  • Five color coded identification rings
  • Make-up cover/ capsule protection cap
  • Three windscreens
