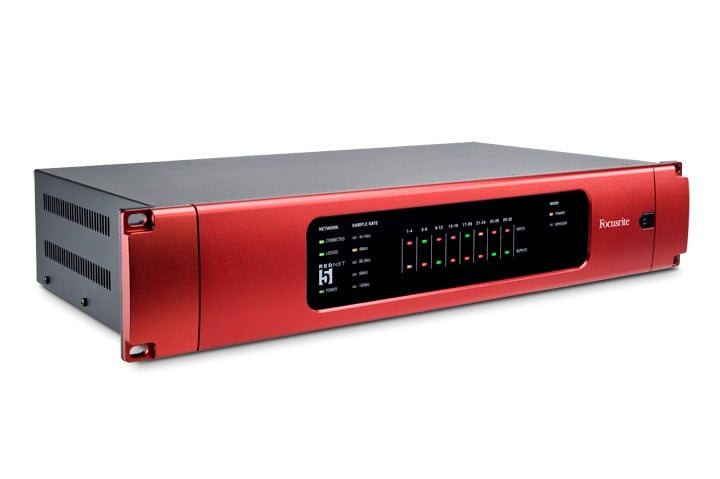

Focusrite RedNet 5
32-Channel RedNet to Pro Tools HD Dante Bridge Interface

OUR PART #:

The Focusrite RedNet 5 connects your RedNet system to Pro Tools HD®.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

The Focusrite RedNet 5 connects your RedNet system to Pro Tools HD®. Up to six units can be connected to one Pro Tools HDX system, supporting up to 192 channels at 96 kHz or 96 channels at 192 kHz. Pro Tools HD® Native and Pro Tools HD® (TDM) are also supported. RedNet 5 is interoperable with other Pro Tools interfaces and no RedNet PCIe card is required.

RedNet is Focusrite’s flagship range of modular Ethernet-networked audio interfaces that harnesses the power of Audinate’s tried and tested Dante digital audio networking system to bring studio quality sound to any modern audio application. Fundamentally RedNet is an extremely scalable, near zero latency audio distribution system that can be used to expand I/O channel count, interface digital components, and/or bridge between Pro Tools|HD or MADI and the Dante audio network.

NOTE:  Before purchasing, please consult with our qualified Sales Representatives for advice on selecting the right RedNet system for you.

Focusrite RedNet 5 Features:

  • Upgrade to RedNet interfaces while remaining fully compatible with your saved sessions
  • Each RedNet 5 can route up to 32 input and 32 output channels between your RedNet network and Pro Tools HD system
  • Connecting six RedNet 5 units to a Pro Tools HDX system allows up to 192 inputs and outputs - the maximum supported by ProTools HDX.
  • Maintain your existing Pro Tools workflow with simple, logical assignment of RedNet I/O to Pro Tools HD inputs and outputs
  • Compatible with Pro Tools HD® TDM systems

Focusrite RedNet 5 Specifications:

  • Connectors:
    • Pro Tools Interfaces:
      • Connector Type:  2x DigiLink female
      • Applies To:  Primary, Expansion
    • Ethernet Connector:
      • Connector Type:  RJ-45 receptacle
      • Applies To:  Ethernet
    • Word Clock I/O:
      • Connector Type:  2x 75 Ohm BNC Sockets
      • Applies To:  Word Clock In and Out
    • Loop Sync I/O:
      • Connector Type:  2x 75 Ohm BNC sockets
      • Applies To:  Loop Sync In and Out
  • Digital Performance:
    • Supported Sample Rates:  44.1 / 48 / 88.2 / 96 / 192 kHz
    • Internal Clock Sources:  Local, Word clock input, Loop sync
    • External Word Clock Range:  Sample Rate ±7.5%
  • Front Panel Indicators:
    • Power:  Green
    • Network Connected:  Green
    • Sync Lock:  Green
    • Sample Rate:  Yellow x5
    • Mode:  Yellow x2
    • Signal Present:
      • Tricolor x16 (each LED represents four channels):
        • Green:  Signal Present
        • Amber:  -6dBFS
        • Red:  0dBFS
  • General:
    • PSU:  Internal, Universal type: 90 - 260V, Consumption 45A
    • Dimensions (WxHxD):  19" x 3.5" x 9.7" (482 mm x 88 mm x 247.5 mm)
    • Weight:  10.17 lbs (4.61 kg)
