Daking Pro Audio 500RS
500 Series Recording System with MicPre 500, Comp 500, EQ 500

OUR PART #:  500RS

This unit is a complete 500 Series recording system bundle, from Daking Audio.
Learn More
Our Price: $3,844.00
List Price: $5,470.00
You save 30%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Daking Pro Audio 500RS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

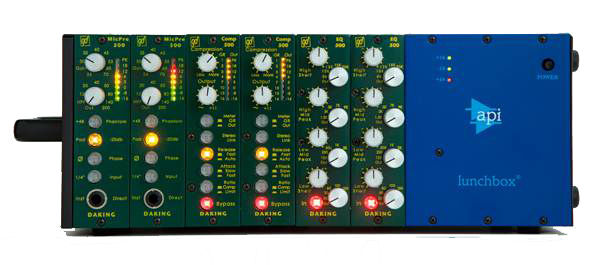

This unit is a complete 500 Series recording system bundle, from Daking Audio. It contains (1) API 500-6B lunchbox rack, (2) Daking Mic Pre 500, (2) Daking Comp 500, and (2) Daking EQ 500's. It ships complete with cards pre-installed.

Features:

  • API 500-6B:
    • Holds 6 API standard modules
    • Rack Ears available for rack mounting
    • 215mA per slot
    • DB-25 connectors for easy input and output connection
    • XLRs to access channels 7 and 8 of the multipins
    • Power rail LED indication
    • Self-Powered, 100 to 250 Volts switchable, 47 to 63 Hz
    • Rubber feet & carrying handle for portability
    • Rugged steel chassis
    • Perfect for remote recording of Vocalist and Instruments
  • Daking MicPre 500:
    • Jensen Transformer
    • Class "A" Circuitry
    • High Headroom
    • Discrete Transistors
    • Single-Sided Amplifiers
    • Lead Free
    • Rohs Compliant
    • Low Current Draw
  • Daking Comp 500:
    • Ultra Flexible and Easy to Use
    • Fast and Transparent
    • High Headroom
    • Class "A" Circuitry
    • Discrete Transistors
    • Single-Sided Amplifiers
    • Lead Free
    • Rohs Compliant
    • Low Current Draw
  • Daking EQ 500:
    • Class "A" Circuitry
    • Inductor-Based Peaking Mid Ranges
    • Discrete Transistors
    • Single-Sided Amplifiers
    • Lead Free
    • Rohs Compliant
    • Low Current Draw
    • Gluten Free

Specifications:

500-6B

  • Power Consumption, Quiescent: 6.6 Watts
  • Size: 15.5" x 5.5" x 7.5" Deep
  • Size (Boxed for Shipping): 20.25" x 9.75" x 12"
  • Actual Weight: 10.22 lbs.
  • Shipping Weight: 12.65 lbs.

Mic Pre 500

  • High Pass Filter: Continuously Variable from 10Hz to 200 Hz 12 db per octave
  • Microphone Input: Jensen Transformer, Balanced
  • Functions:
    • 70db gain
    • 20db pad
    • 48 volt Phantom Power
    • Phase Reverse
  • Instrument Input: Front Panel TRS
  • Meter: 8 Segments with vu Ballistics and Floating Peak

Comp 500

  • Bypass: Hardwire Bypass
  • Ratio: 3:1 Compression & 15:1 Limiting
  • Attack: Fast 1ms & 16ms Slow
  • Release: .5ms & Auto Dual Time Constant Compex Auto
  • Stereo Link: Accurately link any number of units
  • Meter: 8 Segments with Gain Reduction & Output with vu Ballistics andFloating Peak

EQ 500

  • Equalizer: Hard By-Pass
    • Five Frequencies in Each Band
    • High and Low Shelving
    • High and Low Mid Peaking with Inductors
  • High: 8-10-12-15-20K
  • High Mid Inductor: 1.5-3-5-7-9K
  • Low Mid Inductor: 125-250-500-1K-2K
  • Low: 80-50-80-100-150
