Gefen Inc GTV-HDMI1.3-441N
Gefen 4x1 Switcher for HDMI with RS232

OUR PART #:  GTV-HDMI1.3-441N

Switch between any of four HDMI inputs to one HDMI output - the GefenTV 4x1 Switcher for HDMI with RS232 switches between any of four Hi-Def sources to one HDTV display.
Learn More
Our Price: $205.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc GTV-HDMI1.3-441N
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

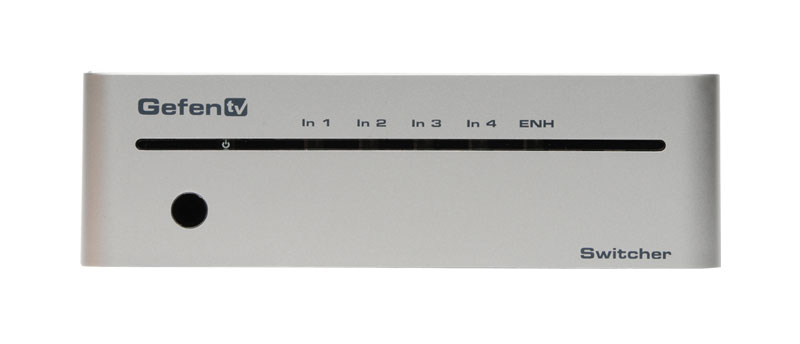

Switch between any of four HDMI inputs to one HDMI output - the GefenTV 4x1 Switcher for HDMI with RS232 switches between any of four Hi-Def sources to one HDTV display. Resolutions up to 1080p Full HD with multichannel digital audio are supported. The front panel LEDs show the currently selected source. This 4x1 Switcher has an auto-switching feature: If a new source is connected or turned on, the Switcher will automatically switch to that input. The 4x1 Switcher will revert to the previous input once the current device is turned off or disconnected. Any of the four Hi-Def sources can be selected by the push-button, IR remote control, or using the RS-232 control.

Supported HDMI 1.3 Features:

  • 225 MHz (up to 12 bit YUV 444 @ 1080p)
  • Deep Color
  • Dolby TrueHD and DTS-HD Master Audio
  • 3DTV Pass-Through
  • Lip-Sync Pass-Through
  • CEC Pass-Through

Note:  This device is fully HDCP-compliant

Features:

  • Supports resolutions up to 1080p Full HD and 1920x1200
  • Supports 3DTV Pass-Through
  • Supports LPCM 7.1 audio, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio
  • Local Switching / Auto-Switching feature
  • RS-232 control
  • IR remote control
  • Supports DVI sources and DVI displays with an HDMI-to-DVI adapter
  • Energy Star Compliant

Specifications:

  • Maximum Pixel Clock: 225 MHz
  • Input Video Signal: 1.2 Volts p-p
  • Input DDC Signal: 5 Volts p-p (TTL)
  • HDMI Input Connectors: (4) Type A, 19-pin female
  • HDMI Output Connector: Type A, 19-pin female
  • RS-232 Connector: DB-9 female
  • Power Supply: 5V DC
  • Power Consumption: 10 Watts (max)
  • Operating Temperature: 0 - 40 ½C
  • Dimensions: 6.9" W x 2.1" H x 6.9" D
  • Shipping Weight: 6 lbs.

What's in the Box:

  • (1) GefenTV 4x1 Switcher for HDMI with RS232
  • (4) 6 ft. HDMI cables (M-M)
  • (1) 6 ft. Serial DB9 cable (M-F)
  • (1) IR Remote Control (RMT-4IRN)
  • (1) 5V DC Power Supply
  • (1) User Manual
