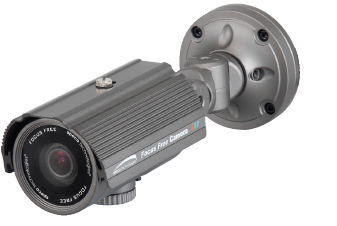

Speco Technologies HTB11FFI
Intensifier 3™ Series Weather Resistant Focus Free Bullet Camera

OUR PART #  HTB11FFI

Our Price: $843.80
In Stock

Intensifier3™ Series Weather Resistant Focus Free Bullet Camera, 2.8-10mm, Dark Grey Housing.

Features:

  • 650 lines of color resolution
  • Amplify existing light with no distance limitations
  • No problems caused by objects that reflect or absorb IR light sources
  • Minimum illumination 0.00002 lux (Intensifier3™ @ 512x)
  • 12VDC / 24VAC dual voltage operation
  • Full OSD operation
  • External controls for zoom & focus
  • S/N Ratio more than 52dB (weight on)
  • Weather resistant operation
  • EZ mount system simplifies installation
  • Relay outputs for motion detection
  • IP66 compliant
  • 5 year warranty

Specifications:

  • Image Sensor: 1/3” Sony Super-HAD ll™ CCD
  • Resolution : 650 TV lines
  • Minimum Illumination:
      -  CDS off: 0.15 lux
      -  CDS on: 0.00002 lux
  • Total Pixels: 811 (H) x 508 (V)
  • Effective Pixels: 768 (H) x 494 (V)
  • TV System: NTSC, PAL
  • Scanning Frequency: 15.734kHz (H) & 59.94Hz (V)
  • Scanning System: 2:1 interlace
  • Synchronization: Internal
  • S/N Ratio: More than 52dB
  • Video Output : CVBS: 1.0Vp-p / 75 Ohm
  • Electronic Shutter Speed: 1/60 sec. - 1/120,000 sec.
  • OSD: Available
  • WDR: On / Off (level adjustable)
  • Backlight Compensation: BLC / HLC / Off
  • Day & Night: Color / BW / Auto
  • Gain Control: High / Low / Off
  • White Balance: ATW / Outdoor / Indoor / Manual /
  • AWC (1,700°K - 11,000°K)
  • Intensifier3™ : Auto / Off (selectable x2 - x512)
  • Motion Detection : On / Off (8 programmable zones)
  • Privacy Masking: On / Off (12 programmable zones)
  • Speco DNR: On / Off (level adjustable)
  • Digital Zoom: On / Off (1x - 16x)
  • DIS: On / Off
  • Sharpness: On / Off (level adjustable)
  • Flip / Mirror: On / Off
  • Power Consumption: 12VDC, 400mA / 24VAC, 170mA
  • Power Supply: 12VDC / 24VAC dual voltage operation (power supply not included)
  • RS485 (Option): PELCO-D, PELCO-P, BOSCH, HONEYWELL, VICON, PANA, STW (SPD)
  • Operating Temperature: 14° F ? 122° F
  • Storage Temperature: -4° F ? 140° F
  • Dimensions: 3.46” (W) x 3.43” (H) x 11.22” (L)
  • Weight: 3 lbs.

Speco Technologies HTB11FFI
Intensifier 3™ Series Weather Resistant Focus Free Bullet Camera

OUR PART #  HTB11FFI

Product Information:

Intensifier3™ Series Weather Resistant Focus Free Bullet Camera, 2.8-10mm, Dark Grey Housing.

Features:

  • 650 lines of color resolution
  • Amplify existing light with no distance limitations
  • No problems caused by objects that reflect or absorb IR light sources
  • Minimum illumination 0.00002 lux (Intensifier3™ @ 512x)
  • 12VDC / 24VAC dual voltage operation
  • Full OSD operation
  • External controls for zoom & focus
  • S/N Ratio more than 52dB (weight on)
  • Weather resistant operation
  • EZ mount system simplifies installation
  • Relay outputs for motion detection
  • IP66 compliant
  • 5 year warranty

Specifications:

  • Image Sensor: 1/3” Sony Super-HAD ll™ CCD
  • Resolution : 650 TV lines
  • Minimum Illumination:
      -  CDS off: 0.15 lux
      -  CDS on: 0.00002 lux
  • Total Pixels: 811 (H) x 508 (V)
  • Effective Pixels: 768 (H) x 494 (V)
  • TV System: NTSC, PAL
  • Scanning Frequency: 15.734kHz (H) & 59.94Hz (V)
  • Scanning System: 2:1 interlace
  • Synchronization: Internal
  • S/N Ratio: More than 52dB
  • Video Output : CVBS: 1.0Vp-p / 75 Ohm
  • Electronic Shutter Speed: 1/60 sec. - 1/120,000 sec.
  • OSD: Available
  • WDR: On / Off (level adjustable)
  • Backlight Compensation: BLC / HLC / Off
  • Day & Night: Color / BW / Auto
  • Gain Control: High / Low / Off
  • White Balance: ATW / Outdoor / Indoor / Manual /
  • AWC (1,700°K - 11,000°K)
  • Intensifier3™ : Auto / Off (selectable x2 - x512)
  • Motion Detection : On / Off (8 programmable zones)
  • Privacy Masking: On / Off (12 programmable zones)
  • Speco DNR: On / Off (level adjustable)
  • Digital Zoom: On / Off (1x - 16x)
  • DIS: On / Off
  • Sharpness: On / Off (level adjustable)
  • Flip / Mirror: On / Off
  • Power Consumption: 12VDC, 400mA / 24VAC, 170mA
  • Power Supply: 12VDC / 24VAC dual voltage operation (power supply not included)
  • RS485 (Option): PELCO-D, PELCO-P, BOSCH, HONEYWELL, VICON, PANA, STW (SPD)
  • Operating Temperature: 14° F ? 122° F
  • Storage Temperature: -4° F ? 140° F
  • Dimensions: 3.46” (W) x 3.43” (H) x 11.22” (L)
  • Weight: 3 lbs.
