Microtech Gefell M950-MATCH-PAIR
Matched Pair of Wide Cardioid Condenser Microphone

OUR PART #:  M950-MATCH-PAIR

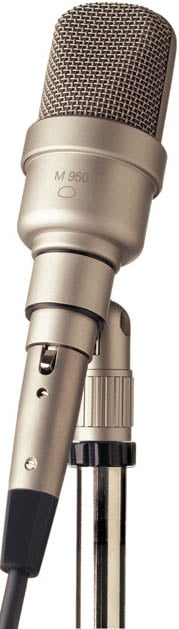

Product shown in image is for illustrative purposes only. Actual product is a matched pair of M950 microphones available in satin nickel or dark bronze finish.
Learn More
Image 4
Image 3
Image 2

Click a thumbnail to see more images. (5 total)

Selected Model Price: $2,697.71
List Price: $2,711.50
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Microtech Gefell M950-MATCH-PAIR
Select model: (shipping times are approximate)
Qty:

Similar Products

Product shown in image is for illustrative purposes only. Actual product is a matched pair of M950 microphones available in satin nickel or dark bronze finish.

This is a matched pair of Microtech Gefell M950 microphones, which are compact, large diaphragm wide-cardioid microphones that combine an M9 gold evaporated capsule with an optically isolated capsule amplifier for low self-noise, excellent dynamic handling, and greater ease of placement.

The M9 is a full-size, 1" (25 mm), 24-karat gold evaporated diaphragm that features a hand stretched Mylar/PE substrate with a hand-drilled solid brass back-plate.  All Gefell capsules are individually sorted and matched for optimum voicing.

The M9 is mounted on a triangulated pedestal that deflects unwanted body reflections away from the diaphragm, reducing phase cancellation and the effects of comb-filtering which can mask harmonic details and limit the depth of field.  To reduce noise from vibration, the microphone capsule and electronics are elastically suspended inside the compact metal housing.  This reduces the sensitivity to mechanical impact and structure born noise.  This is further advantaged by the M950's diminutive size, which has the net result of less "vortex" or acoustic disturbance around the mic.

The M950 introduces optical isolation between the 48-Volt phantom power supply and the internal capsule amplifier circuit.  Optical isolation removes "hash" caused by contamination and ripple from the power supply, providing a pure DC supply to the element.  The M950 benefits with improved voltage stability and significantly lower self-noise.

Below the capsule, a circular PC board using the very latest semiconductor technology houses the electronic impedance converter.  A newly perfected transformerless circuit topology reduces the noise floor to an extremely low level and minimizes RFI susceptibility, while also raising the maximum output capability.  Furthermore, the use of large, oversized capacitors provided added storage for exceptional transient handling.  As a result, the M950 produces a clean, distortion-free sound over an extremely wide dynamic range.

Specifications:

  • Polar pattern: Wide Cardioid
  • Acoustic operating principle: Pressure gradient transducer
  • Frequency range: 40 Hz - 18 kHz
  • Sensitivity at 1 kHz: 20 mV/Pa
  • Output impedance: 100 ohms
  • Noise level:
    - CCIR 468 - 4: 13 dB
    - DIN EN 60651: 7 dB - A
  • Signal-to-noise ratio (re 1 Pa at 1 kHz):
    - CCIR - weighted: 81 dB
    - A - weighted: 87 dB
  • Max. SPL for THD < 0.5%: 142 dB
  • Max. output level:
    - RL = 1 kOhm: 17 dBu
    - RL = 10 kOhm: 18 dBu
  • Dynamic range of electronics: 135 dB
  • Current consumption (P 48, DIN 45596, IEC 268-15): 3.6 mA
  • Output connector: 3-pin XLR connector, gold-plated contacts
  • Weight without MH 93.1: 210 g
  • Dimensions (L x Ø): 118 mm x 45 mm
