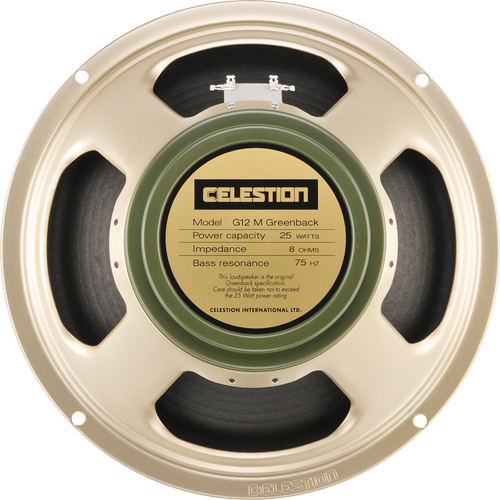

Celestion G12M Greenback
12" Guitar Speaker

OUR PART #:  G12M-GREENBACK

The Celestion G12M Greenback is their first guitar loudspeaker featuring a ceramic magnet structure.
Learn More
Selected Model Price: $130.48
List Price: $213.00
Save up to 39%!
Write the first review.
Celestion G12M Greenback
Select a Model: (shipping times are approximate)

Related Products

The Celestion G12M Greenback is their first guitar loudspeaker featuring a ceramic magnet structure. It presents almost as much magnetic flux to the voice coil as an Alnico formulation, but in a much more compact space. As a result, the Greenback became the guitar loudspeaker that paved the way for use with higher power amplifiers. And, of course, the ceramic magnet presented its own unique tonal characteristics.

The Greenback has a loud and assertive character that sounds great through a valve amp pushed into overdrive. The speaker has evolved over the decades and still presents that instantly familiar woody tone, delivered with a knockout punch.

Celestion G12M Greenback Specifications:

  • Chassis type: Pressed steel
  • DC resistance, Re: Available 6.7 Ohms or 13.1 Ohms
  • Frequency range: 75 Hz - 5 kHz
  • Magnet type: Ceramic
  • Magnet weight: 35 oz (0.99 kg)
  • Nominal diameter: 12" (305 mm)
  • Nominal impedance: Available 8 Ohms or 16 Ohms
  • Power rating: 25 Wrms
  • Resonance frequency, Fs: 75Hz
  • Sensitivity: 98dB
  • Voice coil diameter: 1.75" (44.5 mm)
  • Voice coil material: Round copper
  • Mounting Information:
    • Cut-out diameter: 11.1" (283 mm)
    • Diameter: 12.2" (309 mm)
    • Magnet structure diameter: 5.9" (150 mm)
    • Mounting slot dimensions: 0.31" (7.9 mm) Ø
    • Mounting slot PCD: 11.7" (297 mm)
    • Number of mounting slots: 4
    • Overall depth: 5.1" (130 mm)
    • Unit weight: 7.9 lbs (3.6 kg)
