Audio-Technica ATW-901/L
VHF Wireless Omnidirectional Lavalier Microphone System

OUR PART #:  ATW-901/L

Audio-Technica's System 9 is a four-channel frequency-agile wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality.
Learn More
Our Price: $189.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio-Technica ATW-901/L
Qty:
In Stock

Similar Products

Audio-Technica's System 9 is a four-channel frequency-agile wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality. Featuring sleek, stackable, contemporary styling, System 9 is available in handheld, headworn, guitar, lavalier and body-pack configurations. The system offers four compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz).

Each System 9 configuration includes the ATW-R900 receiver and either a body-pack transmitter or handheld microphone/transmitter. The ATW-R900 is a non-diversity, single-channel receiver with advanced dipole antenna design for extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900 also offers volume control along with AF Peak, RF and Power indicator lights.

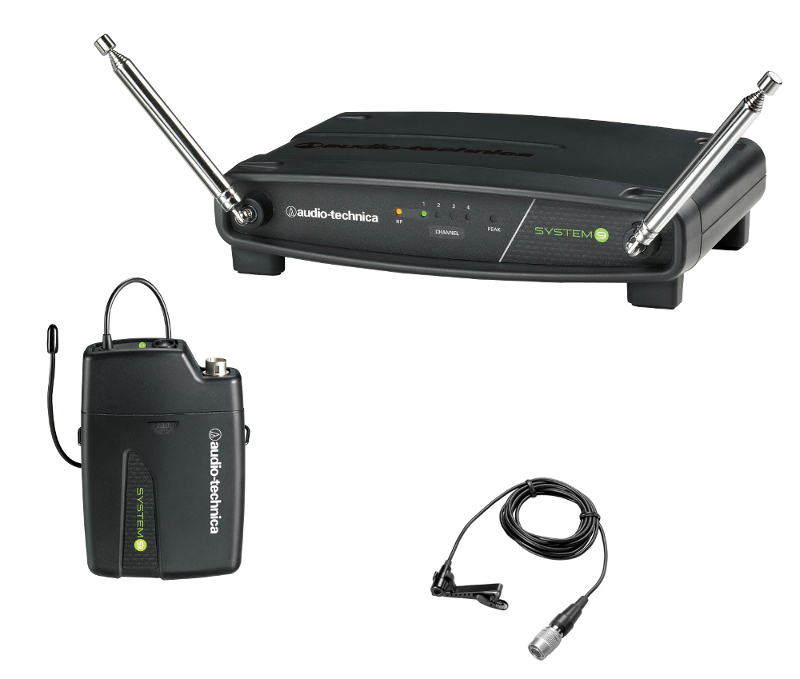

Audio-Technica ATW-901/L Includes:

  • ATW-R900 receiver
  • ATW-T901 UniPak® transmitter
  • Omnidirectional lavalier microphone.

Audio-Technica ATW-901/L Features:

  • Easy operation and clear, natural sound quality
  • 4 selectable frequency-coordinated VHF channels
  • Balanced XLR and unbalanced 1/4¡± output jacks enable use with a wide variety of audio gear
  • Reliable performance and durable construction
  • Advanced dipole antenna system for extended operating range

Audio-Technica ATW-901/L Specifications:

Overall System

  • Operating Frequencies: VHF highband, 169 MHz to 172MHz
  • Modulation Mode: FM
  • Maximum Deviation: ±10 kHz
  • Dynamic Range: =90 dB (A-weighted), typical
  • Total Harmonic Distortion: <1% (at 1 kHz, ±10 kHz deviation)
  • Operating Range: 200' (60 m) typical
      -  Open rangeenvironment with no interfering signals
  • Operating Temperature Range 40° F (4° C) to 110° F (43° C)
     -  Battery performance may be reduced at very low temperatures
  • Frequency Response: 80 Hz to 13 kHz

ATW-R900 Receiver

  • Receiving System: Non-diversity, single-channel, dualantenna system
  • Image Rejection: 50 dB minimum
  • RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
  • Normal Output Level:
      -  XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
      -  1/4" (6.3 mm), unbalanced: 700 mV(1 kHz modulation, 10 kHz deviation, 100k ohm load)
  • Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
  • Dimensions (WxHxD): 7.48" x 1.82" x5.06" (190.0 x 46.2 x 128.5 mm)
  • Net Weight: 12.0 oz (337 grams)
  • Accessory Included: Power supply

ATW-T901 UniPak® Transmitter

  • RF Output Power: 10 mW
  • Spurious Emissions: Following federal and national regulations
  • Input Connection: Four-pin Locking Connector:
      -  Pin 1:GND
      -  Pin 2: INST INPUT
      -  Pin 3: MICINPUT
      -  Pin 4: DC BIAS +9V
  • Batteries (not included): Two 1.5V AA
  • Battery Life: 8 hours (alkaline)
      -  Depending onbattery type and use pattern
  • Dimensions (WxHxD): 2.76" x 4.08" x 0.98" (70.2 x  103.7 x 24.9 mm)
  • Net Weight (without batteries): 2.8 oz (80.0 grams)
