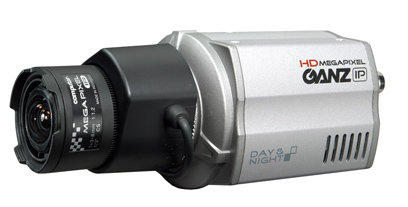

Computar/Ganz ZN-C2M
1/2.5" HD Fixed Camera

OUR PART #:  ZN-C2M

This unit is a fixed camera, great for security, QC, or CCTV applications.
Learn More
Our Price: $503.32
List Price: $760.88
You save 34%!
Write the first review.
Computar/Ganz ZN-C2M
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

This unit is a fixed camera, great for security, QC, or CCTV applications.

Features:

  • Optimized for HD
  • 1080p Model (Also available in VGA & 720p)
  • 1/2.5” Progressive Scan CMOS
  • Dual Streaming Video
  • True Day/Night Performance
  • Triple Power (12VDC/24VAC, PoE)
  • MicroSDHC Card Slot
  • DC Auto Iris Output
  • Compatible with Computar® Megapixel Lenses
  • Analog BNC Output
  • External Alarm I/O
  • Bi-directional Audio Support
  • ONVIF Compliant

Specifications:

  • Image Sensor: 1/2.5" Progressive Scan CMOS
  • Effective Pixels: 2560 (H) x 1920 (V)
  • White Balance: ATW / MANUAL / PRESET
  • Digital Zoom: 8x
  • AGC: Yes
  • BLC (Backlight Compensation): Yes
  • Iris: Manual / DC Auto Iris
  • Shutter Speed: 4, 1/10, 1/12.5, 1/15, 1/20, 1/25, 1/30, 1/50, 1/60, 1/100, 1/120, 1/240, 1/480, 1/960, 1/1024, 1/2000 s
  • Lens Mount: CS/C (Adapter)
  • Day/Night Performance: IR Cut Filter, True Day/Night
  • Dynamic Range: 70.1 dB
  • Min. illumination Color: 0.7 lux (F1.2, 30IRE), B/W: 0.08 lux (F1.2, Slow Shutter ON, 30IRE)
  • Video Signal: NTSC/PAL selectable
  • Monitor Output: Composite Output (BNC), 75 ohm 1Vpp
  • Scanning Frequency: NTSC: (H) 15.734 kHz, (V) 59.94 Hz / PAL: (H) 15.625 kHz, (V) 50 Hz
  • Resolution Horizontal: 600 TVL or more / Vertical: 350 TVL or more
  • Network: 10BASE-T, 100BASE-TX, RJ45
  • Image Compression:
      -  H.264: - Main Profile, Simple / Advanced Mode, Base Profile (D1 resolution only)
      -  MJPEG - 2nd stream only
  • Resolution: 1920 x 1080, 1280 x 720, 1280 x 720 (Wide), 1280 x 1024, 1024 x 768, 640 x 480, 320 x 240
  • Protocol: IPv4/6, HTTP, HTTPS, SMTP, UPnP, DNS, Dynamic DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP
  • Frame Rate: 2.5 fps ~ 30 fps
  • Web Browser: Internet Explorer 7.0 or above, PDA / Smart phone
  • Security: Password Protection, HTTPS, IP Addressing Filtering
  • SDK (API): HTML based API
  • VMD (Video Motion Detection): User set 5 ROI (Region of Interest), 10 Step Sensitivity
  • Alarm Trigger: VMD, External Alarm Input
  • Alarm Event: E-mail notification, FTP Uploading, Alarm out
  • Power Source: Triple Power - 12VDC 1A / 24VAC (50Hz/60Hz) 500mA, PoE Class 2 (IEEE 802.3af compliant)
  • Power Consumption: 390mA, 4.8 W @ 12VDC, Max 4.8 W @VAC, PoE - Class 2
  • MicroSDHC card: MicroSDHC card compatible - SanDisk, Transcend, Kingston,Toshiba: 1G, 2G, 4G, 8G,16G
  • External I/O Terminals: Alarm In x1, Alarm Out x1, Audio In x1, Audio Out x1
  • Operating Temperature/Humidity: 14ºF ~ 122ºF (-10ºC ~ 50ºC) / Humidity less than 90%, non-condensing
  • Materials: Aluminum Die Casting
  • Weight: .5 lbs. / 250g
  • Dimensions (W x H x D): 2.5” x 2.4” x 3.2” / 63.6mm x 60.3mm x 81.2mm
