Computar/Ganz ZC-BNX8312NBA

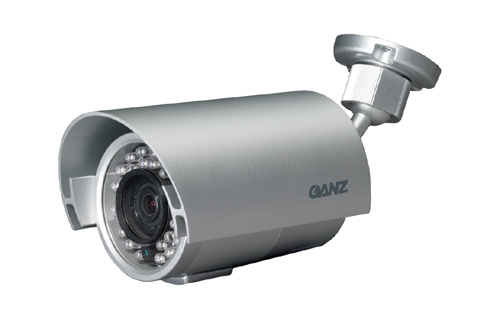

600 TVL IR Outdoor Bullet Camera

OUR PART #:  ZC-BNX8312NBA

This unit is an iutdoor bullet camera, suitable for CCTV, security, and other non-broadcast video applications.
Learn More
Our Price: $296.77
List Price: $432.61
You save 31%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Computar/Ganz ZC-BNX8312NBA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This unit is an iutdoor bullet camera, suitable for CCTV, security, and other non-broadcast video applications.

Features:

  • High Resolution 600 TVL
  • 3.3-12mm computar® IR coated auto-iris varifocal lens
  • 30 IR LEDS provide over 100’ illumination range
  • Digital Wide Dynamic Range
  • Multi-function switch for OSD control
  • Backlight / Highlight compensation
  • Motion detection
  • Privacy masking
  • Digital noise reduction (2D)
  • Lens shading compensation
  • Easy cable management with cable feed-through bracket
  • IP67 Rating for all weather conditions

Specifications:

  • TV System: NTSC
  • Scanning System: 2:1 Interlace
  • Image Sensor: 1/3” Sony Super HAD II CCD
  • Effective Pixels: 768 (H) x 494 (V)
  • Scanning frequency: 15.734kHz (H) / 59.94Hz (V)
  • Video Output: 1.0V p-p / 75O
  • Horizontal Resolution: 600 TVL
  • Minimum Illumination: 0 lux (B/W Mode - at IR LED ON)
  • Day / Night Performance: True Day / Night, Retractable IR Cut Filter
  • S/N Ratio: More than 50dB (at minimum AGC gain)
  • IR Illumination: 30 IR LEDs
  • Gamma Correction: 0.45
  • Sync System: Internal only
  • Lens: 3.3-12mm / F1.4 Auto-iris
  • Max Aperture Ratio: 1: 1.4 ~ 2.9
  • Angle of View: 89.8° ~ 23.9° Horizontal
  • Electronic Shutter: 1/60 sec, FLK, 1/60 ~ 1/100,000 (selectable)
  • BLC (Backlight Compensation): On / Off / HLC (Highlight compensation)
  • White Balance: ATW1, ATW2, AWC, Manual (selectable)
  • Power Supply: 24V AC ± 10% 60Hz ± 1Hz / 12V DC ± 10%
  • Power Consumption: 5.7W (24V AC) / 6.5W (12V DC)
  • Operating Temperature: -4° F ~ 122° F (-20° C ~ 50° C)
  • Storage Temperature: -4° F ~ 140° F (-20° C ~ 60° C)
  • Ambient Humidity: 85% RH (Operation) / 95% RH (Storage)
  • IP Rating: IP67
  • External Dimensions: 8.2” (L) x 2.8” (Ø) / 209mm (L) x 72mm (Ø)
  • Weight: 1.7 lbs. / 750g (with sunshield)
  • Switch: Multi-function switch for OSD control
  • Accessories:
      -  Self-tapping screw (3)
      -  Template
      -  Instruction Manual
      -  Additional Power Connector
      -  Allen key
  • Certifications CE, FCC, WEEE
