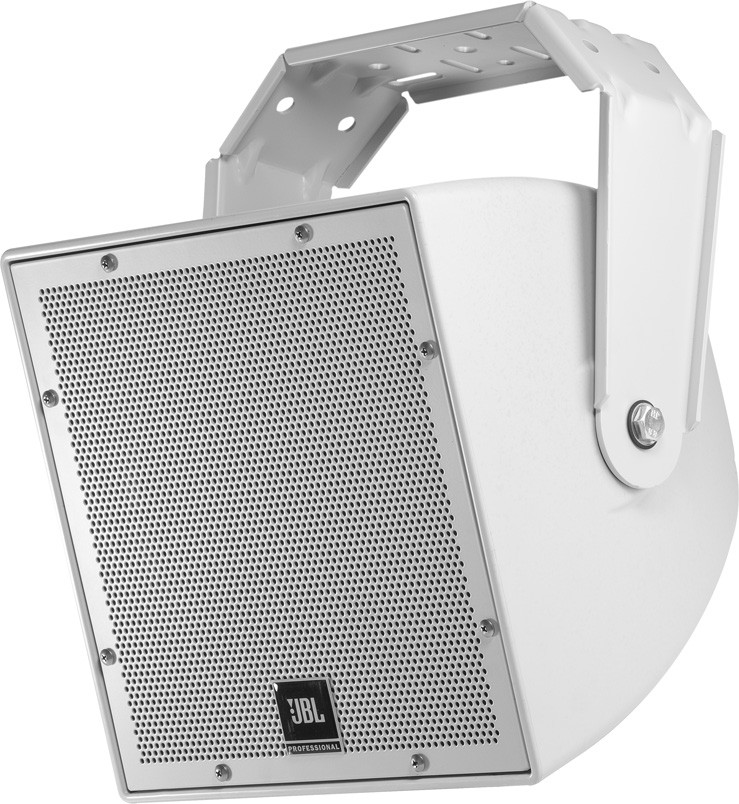

JBL AWC82
8" Passive All-Weather Compact 2-Way Coaxial Loudspeaker in Light Grey

OUR PART #:  AWC82

The JBL AWC82 is a compact, coaxial-driver, 2-way...
Learn More
Our Price: $404.00
List Price: $505.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL AWC82
Qty:
In Stock

Similar Products
The JBL AWC82 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

JBL AWC82 Features:

  • Highly weather-resistant IP56 rating
  • Consistent 120° x 120° broadband pattern control
  • Components:
    • 200 mm (8") woofer with Kevlar-reinforced cone and 50mm (2") voice coil.
    • 25 mm (1") exit compression driver with uniquepatented design and high temperature polymer diaphragm.
  • Extraordinary clarity for speech, with extended frequency response for music.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • 250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
  • High-power passive crossover network.
  • Overload protection
  • 80 Hz – 20 kHz frequency response.
  • 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8 Ohm low-impedance.

JBL AWC82 Specifications:

  • Frequency Range (-10 dB): 80 Hz –20 kHz
  • Frequency Response (±3 dB): 100 Hz– 20 kHz
  • Coverage Pattern: 120° x 120°
  • Directivity Factor (Q): 8.1 (1 k –16 kHz)
  • Directivity Index (DI): 8.4 dB (1 k– 16 kHz)
  • Long-Term System Power Rating(IEC):
    • 250 W 2hrs.
    • 200 W 100 hrs
  • Sensitivity (2.83V @ 1m): 94 dB(Ave. 100 Hz – 20 kHz)
  • Maximum SPL:
    • Direct 8 Ohm: 118 dB (peaks of 124 dB)
    • 200 W Tap: 117 dB
  • Crossover Network: 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
  • Nominal Impedance: 8 ohms
  • Transformer Taps:
    • 70V: 200W, 100W, 50W, 25W
    • 100V: 200W, 100W, 50W
  • Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 50 mm (2") voice coil.
  • High Frequency Driver: 25 mm (1") diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
  • HF Driver Protection: Minimum audibility SonicGuard™ HF overload protection
  • Enclosure: ABS with Glass enclosure, heavily braced
  • Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel
  • Grille: Corrosion-resistantzinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
  • Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wireor spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0mm (0.16") and 9.0 mm (0.36")
  • Environmental: IP56 per IEC529,with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
  • Dimensions:
    • 11.8" x 11.8" x 12.0" (300 x 300 x305mm), cabinet
    • 13.0" (331 mm) including gland nut
    • 14.2" (359 mm) including bracket extending to back
  • Net Weight: 21.5 lb (9.8 kg),25.5 lb (11.6 kg) with U-bracket
  • Shipping Weight: 31.0 lb (14.1kg)
  • Included Accessories: U-bracket, matches loudspeaker color (light grey or black), zinc-rich extra-thick powder coated, steel.
