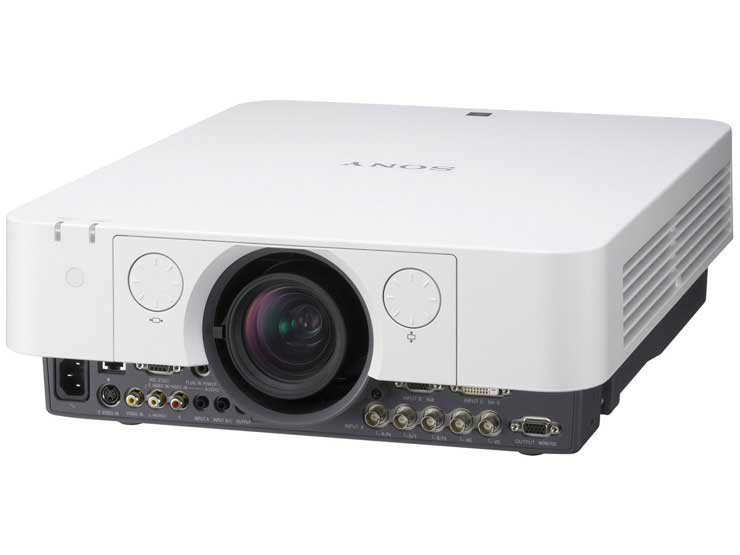

Sony VPLFX37
XGA Projector, 6000 Lumens


Call for Details

Recommended Accessories
Sony's VPL-FX37 is an advanced installation Projector which outputs high bright 6000lumens color light output with XGA resolution, suitable for retrofitting 4:3 projections or displaying standard definition contents. Featuring 1.6x flexible standard zoom, horizontal+vertical wide lens shift range, and a wide variety of inputs means it can perform where other projectors would struggle. Having the usual wide range of inputs, crystal-clear All Range Crisp Focus Lens, and adopting the same “iF Gold Award” winning cabinet design with F30 series, the VPL-FX37 is an obvious projector choice for venues that demand quality and practicality – a perfect fit for demanding education, government, corporate, house of worship, and hospitality installations.


  • 6000 lumens 3LCD Projector
  • 2000:1 Contrast Ratio
  • Native XGA (1024 x 768) Resolution
  • Up to 3500h expected lamp life
  • Versatile inputs including 5BNC and DVI-D
  • RJ45 for network control and monitoring
  • Optional lenses available
  • Up to V : +51% -0%, H : +/-33% Optical Lens Shift
  • Equipped with Bright Era 3LCD Panels
  • 12 bit 3D Digital Gamma Correction
  • Synchronized Lamp and Filter maintenance timing
  • Eco Mode for savings on energy
  • Designed to blend in visually
  • Closed Captioning


  • Color Light Output  6000 lumens (lamp mode : high), 4500 lumens (lampmode : standard)
  • Light Output  6000 lumens (lamp mode : high), 4500 lumens (lamp mode: standard)
  • Contrast Ratio  2,000:1
  • Lamp  High-pressure mercury lamp 330 W type
  • Lamp Life  2500H(High) / 3500H(Standard)
  • Projection Lens  Zoom/Focus -Approx. 1.6x manual zoom / Manual focus
  • Lens Shift - Manual, Vertical +51%/-0% Horizontal +/- 33%
  • Throw Ratio  1.42 to 2.27 : 1
  • Screen Coverage  40” to 600

Input/Output Specifications

  • S-Video In  Mini DIN-4pin Audio : Pin jack x2 (shared with VIDEO IN)
  • Composite Video In  RCA phono jack, Audio : Pin jack x2 (shared withS VIDEO IN)
  • Analog RGB/Component In  1.5BNC/Audio:Stereo mini jack,2. Mini D-sub15-pin (RGB)/Audio: Stereo mini jack (shared with DVI-D)
  • Digital In  DVI-D (HDCP support) Audio : Stereo mini jack (sharedwith Analog RGB)
  • Network  RJ-45: 10Base-T / 100Base-TX
  • Monitor Out  Mini D-sub 15-pin (from Analog RGB and Component input)
  • Variable Audio Out  Stereo mini jack (variable out)
  • Remote Control  RS232C (D-sub 9pin)

Electrical Specifications

  • Color System  NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
  • Acceptable Computer Signals  Maximum display resolution : 1920x1200dots
  • Acceptable Video Signals  NTSC, PAL, SECAM, 480/60i, 576/50i,480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p

General Specifications

  • Dimensions (W x H x D)  15 11/32 x 5 13/16 x 18 25/32
  • Weight  17 lb 14 oz
  • Power Requirements  AC 100V to 240V, 4.5A to 1.8A, 50Hz/60Hz
  • Power Consumption  450W (AC 100V-120V) 430W (AC 220V-240V)

Other Specifications: Environmental Notice  Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Telecommunications Industry Association
