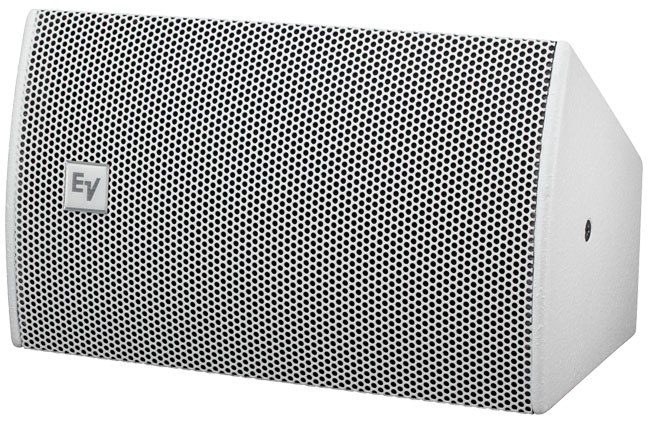

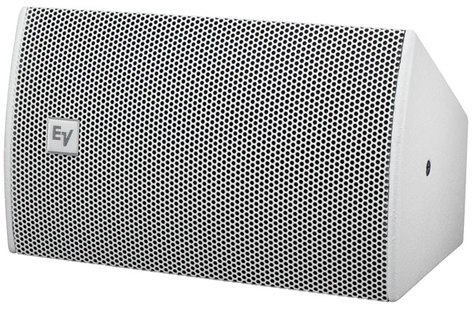

Electro-Voice EVU-1082/95-WHT
2-Way Loudspeaker, 8" woofer, White

OUR PART #:  EVU-1082/95-WHT

Our Price: $598.00
Write the first review.
Electro-Voice EVU-1082/95-WHT
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Electro-Voice EVU series is a compact high power 2-way loudspeaker system used in a variety of applications where high-quality sound reinforcement is required in an ultra compact light-weight enclosure. The enclosure design utilizes asymmetrical angles to maintain tight clearances to wall and ceilings while providing optimal coverage patterns making it ideal to blend into surroundings.

This design is optimized for wall, stage lip and under balcony applications. The EVU series incorporates the ICT (Install Compact Transducer), a high-output 1.3in titanium compression driver coupled to a Constant Directivity*1 90 x 50 rotatable waveguide. The EVU woofers are developed using FEA (Finite Element Analysis) optimization to provide the highest sensitivity while achieving the highest level of speech intelligibility.

The crossover designs uses 18dBper octave slopes with equalization for very smooth response in the vocal range, linear off-axis response and a protection circuit for long term reliability. The EVU line is constructed of multi-ply hardwood plywood enclosure with six (6) integral M8 suspension points to support a wide variety of mounting positions.

This EVU system is finished in textured paint available in white. Each EVU system includes a universal u-bracket to facilitate mounting. The u-bracket provides for a 330° unobstructed, translation of the loudspeaker. Additional mounting points are located on the back of the enclosure for use with an Omnimount*1 type bracket, available from Omnimount Inc. An available 60W transformer kit is easily mounted over the input panel for use in distributed systems. An NL-4 cover plate accessory is available to simplify use as a portable system. All of these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer requirements.


  • Ultracompact 10 x 16 inch enclosure
  • High power handling for size: 175 W continuous
  • High sensitivity: 95 dB (1 W / 1 m)
  • One 8-inch ICT-8-8 woofer


  • Axial Sensitivity (SPL, 1 W @ 1 m) 95 dB
  • Color: White
  • Finish: Textured paint
  • Nominal Impedance: 8 O
  • Waveguide: 6 in. x 6 in., rotatable
  • Frequency Response (-3 dB): 110 - 16000 Hz Half Space
  • Frequency Response (-10 dB): 65 - 20000 Hz Half Space
  • Recommended High-Pass Frequency: 90 Hz
  • Max. SPL/1m (calc): Continuous: 117, Peak: 123 dB
  • Coverage (Nominal -6 dB) H: 90 °
  • Coverage (Nominal -6 dB) V: 50 °
  • System Power Handling (Continuous/Program/Peak): Continuous: 175, Peak: 700 Watts EIA RS-426A (eight hours)
  • LF Transducer: One 8-inch (203 mm) ICT-8-8 woofer
  • HF Transducer: One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver
  • Minimum Impedance: 6 O
  • Connector Type: 4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire)
  • Enclosure Material: 9-ply hardwood plywood
  • Grill: 18-gauge steel with cloth behind
  • Suspension: (6) M8 threaded points
  • Height: 9.72" (247 mm)
  • Width: 16.1" (409 mm)
  • Depth: 9.33" (237 mm)
  • Weight Net: 16.31 lbs (7.4 kg)
  • Shipping Weight: 22.71 lbs (10.3 kg)
