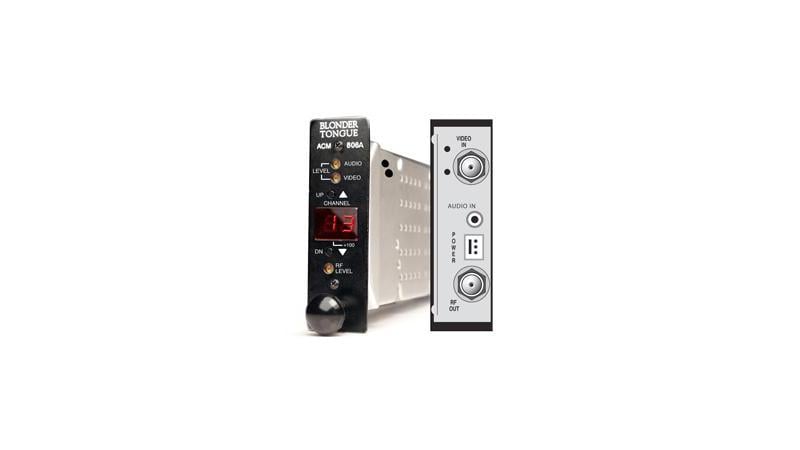

Blonder-Tongue ACM-806
Modulator Agile A/V HE12 7765

OUR PART #:  ACM-806

Our Price: $271.56
List Price: $274.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blonder-Tongue ACM-806
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ACM-806A is a frequemcy-agile analog audio/video modulator suitable for NTSC channels 2-125 (54-806 MHz)

Features:

  • Front-panel LED display and Controls for convenient monitoring and operation
  • Compact design allows for deployment of 12 channels in 2RU
  • Utilizes SAW filters for improved performance
  • Die-cast chassis for RFI immunity

Specifications:

Input

  • Video Connector: “F” Female
  • Impedance: 75 Ohms
  • Return Loss: 24 dB
  • Input Level: 1.0 volt Peak-to-Peak (87.5% depth of modulation)
  • Frequency Response: 1.0 dB Peak-to-Valley (fv to fv+4.2 MHz)
  •  Peak to Peak Video-to-RMS Hum Ratio: 65 dB
  •  Signal-to-Noise Ratio: 60 dB (Weighted; 4MHz bandwidth)
  • Differential Gain: 2.0% (87.5% depth of modulation)
  • Differential Phase: 1.0 degree (87.5% depth of modulation)
  • Chrominance/Luminance Delay: Per FCC Requirements
  • Mono Audio(standard) Connector: RCA
  • Input Impedance: Greater than 10 kO, unbalanced
  • Input Level:(for 25 KHz deviation): 0.4 volt peak-to-peak (min.)
  • Frequency Range: 50 Hz to 12 kHz
  • Frequency Response: ± 1 dB
  • Total Harmonic Distortion: 1% @ 25 kHz deviation
  • Signal-to-Noise Ratio: N/A

Output

  • Connector: “F” Female
  • Impedance: 75 Ohms
  • Return Loss: 10 dB
  • Frequency Range: 54 to 806 MHz (NTSC CATV Ch. 2 -125)
  • Power Level: +45 dBmV
  • Power Level Range: 10 dB continuously adjustable
  • Carrier-to-Noise:(In Channel) 63 dB
  • Broadband Noise: -75 dBc (@ +45 dBmV output level, 4 MHz bandwidth)
  • Spurious Outputs: -60 dBc
  •  Aural/Visual Carrier Ratio: -11 to -19 dB continuously adjustable
  •  4.5 MHz Aural Inter-carrier Freq. Tolerance: ±150 Hz; 32 to 122 °F (0 to 50 °C)
  •  Visual Carrier Frequency Tolerance:
      -  Standard Channels: ±10 kHz; 32 to 122 °F (0 to 50 °C)
      -  FCC Aeronautical Channels: ±5 kHz; 32 to 122 °F (0 to 50 °C)

General

  • Dimensions (W x D x H)
  • ACM Modules: 1.0 x 7.78 x 3.5 inches (25 x 198 x 89 mm)
  • MIPS-12C Power Supply: 4.6 x 7.5 x 3.5 inches (106 x 191 x 89 mm)
  • MIRC-12V Chassis: 19 x 12.0 x 5.25 inches (483 x 305 x 133 mm)
  •  MIPS-12C Power Supply: 100-240 VAC; 50/60 Hz
  • Power Dissipation: ~ 5 W (max. per ACM Module)
  • Weight
      -  ACM Module: 0.8 lbs (0.36 kg)
      -   Fully Loaded Chassis: 15.8 lbs (7.2 kg)
  • Operating Temperature: 32 to 122 °F (0 to 50 °C)
  • Storage Temperature: -13 to 158 °F (-25 to 70 °C)
  • Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensation
  • Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensation

Alarms/Monitoring/Control

  • Front-Panel Indicator Channel No. & Mode:
      -  2-Digit Red LED Display
      -  +100 channel:  Decimal Point in CH. display
  • Video Over-modulation: N/A
  • Audio Over-modulation: N/A
  • Front-Panel Control
  • Output Level: Potentiometer
  • Video Level: Potentiometer
  • Audio Level: Potentiometer
  • Aural Carrier Level: Potentiometer (accessible through top cover)
