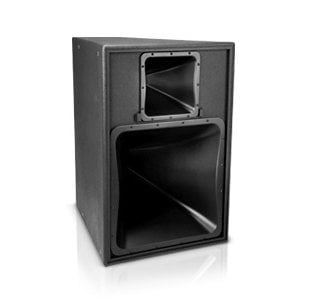

JBL PD5212/64
12" 2-Way Full Range Loudspeaker with 60° by 40° Coverage

OUR PART #:  PD5212/64

The JBL PD5212/64 is a Precision Directivity 60 ° by 40 ° loudspeakers designed for applications requiring high output capability with excellement pattern control.
Learn More
Our Price: $4,526.00
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL PD5212/64
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL PD5212/64 is a Precision Directivity 60° by 40° loudspeakers designed for applications requiring high output capability with excellement pattern control.  PD5212/64 can be utilized alone in music or speech systems where frequency extensions to 80Hz is adequate or combined with subwoofers to create extended bandwidth full-range systems.

JBL PD5212/64 Features:

  • 300mm (12") horn-loaded LF and large-format HF driver - high sensitivity design with high continuous SPL capability.
  •  Large PT Progressive Transition waveguides provide broad band 90° x 50° pattern control, low distortion at high SPL levels and smooth frequency resposne.
  • Rotatable low and high frequency waveguides allow either horiztontal or vertical cabinet orientation
  • Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes.

JBL PD5212/64 Specifications:

  • Frequency range: 80Hz to 18kHz
  • Frequency response: 90Hz to 16kHz
  • Transducer power ratings (AES): LF: 400W (1600 W peak), 2 hrs. 300W (1200W peak), 100 hrs.
  • Long-term system power rating: Passive mode: 300 W (1200W peak), 100 hrs.
  • Max. SPL:
    • Bi-amp Mode: LF: 135 dB SPL cont avg (141 dB peak)
    • Passive Mode:
      • LF: 132 dB SPL cont avg (138 dB peak)
      • HF: 135 dB SPL cont avg (141 dB peak)
  • Suspention attachment: 20 points (5 top, 5 bottom, 4each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
  • Dimensions: 39" x 26.5" x 27.8" (991 x 673 x 706 mm)
  • Coverage pattern: 60° x 40°
