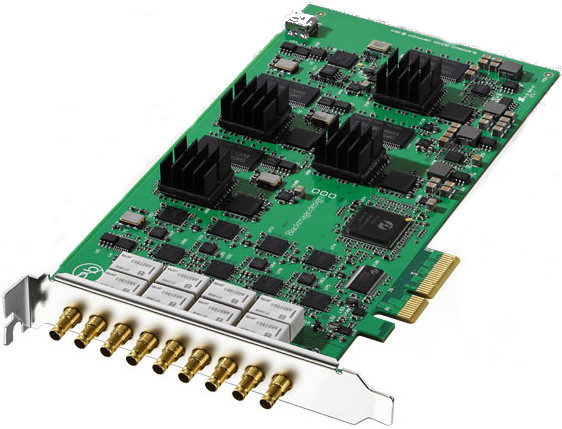

Blackmagic Design DeckLink Quad
Broadcast-Grade PCI Express Video Card with 4x SDI I/O

OUR PART #:  DECKLINK-QUAD

DeckLink Quad includes 4 SDI inputs and 4 SDI outputs that can be switched between SD and HD video formats, as well as a common black burst/tri-sync input.
Learn More
Our Price: $945.25
List Price: $995.00
Call for Special Sale Price!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design DeckLink Quad
Qty:
In Stock

Similar Products

DeckLink Quad includes 4 SDI inputs and 4 SDI outputs that can be switched between SD and HD video formats, as well as a common black burst/tri-sync input. DeckLink Quad includes a built in watchdog timer under API control with bypass relays for a robust broadcast solution that automatically switches to bypass if power is lost, or software crashes. Each SDI input and output is independent, so each SDI input or output can be a different video standard.

Specifications:

  • SDI Video Input 4x 10-bit SD/HD independently switchable
  • SDI Video Output 4x 10-bit SD/HD independently switchable
  • Analog Video Input None
  • Analog Video Output None
  • HDMI Video Input None
  • HDMI Video Output None
  • Optical Fiber Video Input None
  • Optical Fiber Video Output None
  • Optical Fiber Audio Input None
  • Optical Fiber Audio Output None
  • Analog Audio Input None
  • Analog Audio Output None
  • AES/EBU Audio Input None
  • AES/EBU Audio Output None
  • SDI Audio Input 8 Channels per input embedded in SD and HD
  • SDI Audio Output 8 Channels per input embedded in SD and HD
  • HDMI Audio Input None
  • HDMI Audio Output None
  • Sync Input Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format
  • Device Control None
  • Computer Interface PCI Express 4 lane, compatible with 4, 8 and 16lane PCIe slots

Standards:

  • SD Format Support 625/25 PAL, 525/29.97 NTSC, 525/23.98NTSC.
  • HD Format Support 720p50, 720p59.94, 720p60,1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25,1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and1080i60.
  • 2K Format Support None
  • 4K Format Support  None
  • SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE296M
  • SDI Metadata Support VITC read for 3:2 pulldown removal.VANC capture and playback using up to 3 lines of video in file. HD RP188 andclosed captioning.
  • Video Sampling 4:2:2
  • Audio Sampling Television standard sample rate of 48 kHzand 24 bit
  • Color Precision 10 bit
  • Color Space REC 601, REC 709
  • HDMI Color Precision None
  • HDMI Resolution None
  • HDMI Configuration None
  • Multiple Rate support SDI switches between 270 Mb/sstandard definition SDI and 1.5 Gb/s HD-SDI
  • Copy Protection N/A

Processing:

  • Colorspace Conversion Hardware based real time
  • 3D Processing None
  • HD Down Conversion HD to SD on video capture or videoplayback.
  • HD Up Conversion SD to 720HD or 1080HD on videocapture
  • Cross Conversion 720HD to 1080HD on videocapture
  • Real Time Effects Apple Final Cut Pro™ internal effectsin DV, DVCPRO HD, ProRes and uncompressed on Intel Mac OS X™. Adobe® PremierePro® Mercury Playback Engine effects in DV, MJPEG, DVCPRO HD, DSLR, AVCHD,XDCAM, XDCAM HD and uncompressed.

Extras:

  • Software Included Media Express, Disk Speed Test,LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X.Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel andBlackmagic driver on Windows 7. Media Express, Blackmagic Control Panel andBlackmagic driver on Linux.
  • Firmware Upgrade Firmware built into software driver.Loaded at system start or via updater software.
  • Installation PCI Express 4 lane, compatible with 4, 8 and16 lane PCI Express slots on Mac OS X, Windows 7 and Linux. Mac OS X systemsrequire a Mac Pro computer. Please check the Support pages to see the fullsystem requirements.
  • Product Warranty 3 Year Limited Manufacturer'sWarranty.
