OUR PART # VRX5950

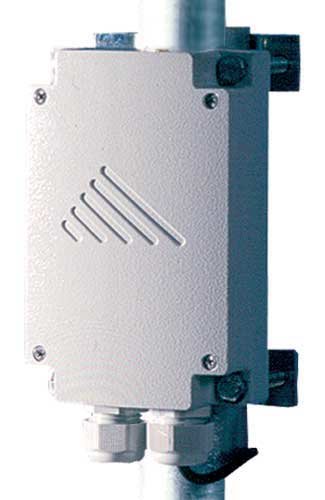

The Falcon PLUST is a simple, cost-effective and field-proven 5.8GHz analog wireless transmission solution which delivers high-resolution, full-motion video up to seven miles line-of-sight at a fraction of the the cost of fiber networks. Operating in the unlicensed 5.8GHz ISM band, the Falcon PLUST offers unmatched wireless video performance and a ready-to-install solution for hard-to-reach, remote PTZ or fixed cameras. When using more than 6 sets of Falcon PLUS systems in the same area use a mix of right and left hand polarized antenna sets. Since you will not be able to separate the frequency channels by at least one other channel you will need the opposite polarized antennas to achieve more separation.
The system is capable of transmitting two channels of audio or single-channel audio along with two Virtual WireT contact closures. Sensors, alarms and detectors can be wired to the transmitter to take advantage of this feature. In data pass-through mode the Falcon PLUS also functions as a wireless, single-direction data transmitter that can provide mono audio transmission while passing RS232 at data rates from 1200 to 9600 baud with provisions for RS422 and RS485 through the use of the optional LC485/422 module. Using the data pass-through mode it is possible to control PTZ cameras, but you will need an additional Falcon PLUS transmitting in the opposite direction.
By integrating the Falcon PLUS wireless video system into the complete CCTV or traffic monitoring solution, integrators and installers save the inconvenience and high cost of stringing fiber to every camera location. And, through the use of the 5.8GHz band with polarized antennas, this audio and video transmitter delivers a crystal clear video picture with maximum immunity to the interference.
Secure Standy Mode
The Falcon PLUS also features a proprietary Secure Standby mode which, when enables, allows the system to go into "sleep" mode until an alarm input is detected. Not only does this feature save power in battery-dependent (or solar powered) applications, but it also eliminates all radio-frequency output, rendering the system undetectable to frequency monitoring. With all of these features, it is no wonder the Falcon PLUS has been utilized in a wide variety of security video surveillance and broadcasting applications.
