TV One 1T-TG-620

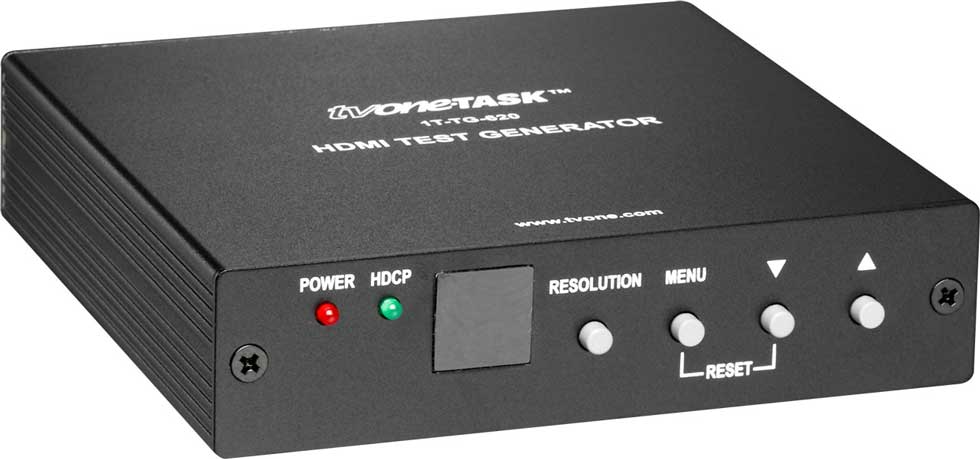

HDMI Test Pattern Generator

OUR PART #:  1T-TG-620

This Test Pattern Generator provides a means to verify the correct operation of HDMI equipment such as monitors and projectors.
Learn More
Our Price: $300.00
Write the first review.
TV One 1T-TG-620
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

This Test Pattern Generator provides a means to verify the correct operation of HDMI equipment such as monitors and projectors. Any device using an HDMI type input (or DVI-D with apporpriate adapter) can be tested using several different types of signals. Provision has been made to embed either a 1kHz internally generated audio sine wave or an externally generated audio signal into the digital bitstream so that the integrity of the audio portion of the HDMI signal can be verified and, in addition, HDCP (High Definition Content Protection) functionality can also be tested thereby ensuring that all video, audio and security components of an HDMI compliant device are functioning properly.


  • HDMI v1.2, HDCP and DVI 1.0 Compliant
  • 1.65Gbps Single Link HDMI Frequency Bandwidth
  • VESA EDID v1.3 and EIA/CEA 861 Version 3
  • Supports PC & HD (up to WUXGA/60 and 1080p)
  • Supports Embedded Audio - Internal and External
  • Infrared Remote Control


Audio Input

  • External Input: 1 x S/PDIF Optical Connector

Video Output

  • HDMI: 1 x via Type A HDMI Connector

HDMI Transport

  • Frequency Bandwidth: 1.65Gbps (Single Link)
  • Supported PC Resolution: Up to WUXGA/60
  • Supported HDTV Formats: 480p through 1080p
  • Audio (Embedded): 1kHz Sine wave Int. or Ext.
  • Compliance: HDMI v1.2, HDCP v1.1, DVI 1.0

Special Feature

  • HDCP Function Check: Via Internal Algorithm

Video Test Patterns

  • 36 Test Patterns: In 8 Groups

Control Methods

  • Local Control: Front Panel via PB Switches
  • Remote Control: 1x Infrared Remote Control


  • Limited Warranty: 3 years parts and labor


  • Size: 1.2" x 4.9" x 4.9"
  • Weight: 0.72lbs


  • Operating Temperature: 32 degrees F to 120 degrees F
  • Operating Humidity: 10% to 90% non-condensing
  • Storage Temperature: 32 degrees F to 120 degrees F

Power Requirement

  • External Power Supply: 5VDC @ 2A

Regulatory Approvals

  • HDMI Test Generator: FCC, CE, RoHS
  • Power Supply: UL, CUL, CE, PSE, GS, RoHS

Accessories Included

  • 1 x AC Adapter
  • 1 x Instruction Manual
  • 1 x IR Remote Control
