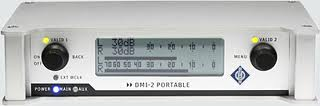

Neumann DMI-2 Portable
Digital Microphone Interface

OUR PART #:  DMI-2-PORTABLE

Equipment that supports the AES 42 standard can process the output signals of Solution-D microphones directly.
Learn More
Our Price: $999.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neumann DMI-2 Portable
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Equipment that supports the AES 42 standard can process the output signals of Solution-D microphones directly. In all other cases, the DMI-2 (portable) or DMI-8 digital microphone interface is used. The DMIs convert the AES 42 data format supplied by the microphone into an AES/EBU signal.

The Interfaces are operated via the Neumann RCS remote control software, which is installed on a desktop or laptop computer. Some parameters of the DMI-2 portable can be accessed directly at the interface. The computer is connected to the DMI via a USB port and a USB to RS 485 interface converter. If a large number of microphones is used, several DMI-2’s or DMI-8’s can be cascaded. In this case, each digital microphone interface can be addressed individually.

In addition to a word clock input and output, the DMIs also have an internal word clock generator. If no master word clock signal (e.g. from a mixing console) is present at the input, the DMI internal word clock is used automatically to synchronize the microphone channels, and the signal is switched to the word clock output.

External commands such as "On Air" (red light) can be controlled via the 9-pin user port of the DMI-2 and DMI-8.

Neumann's DMI-2 portable is the ideal digital microphone interface solution for ENG and other field recording applications.

It supports two digital microphones and allows adjustment of the Gain, Pre Attenuation and Low Cut filter settings at the device.  The front panel display shows the selected gain and, by means of bar graphs, shows the current signal level and any gain reduction.  Of course, these functions can also be operated via the RCS software.

Microphone presets can be stored inside the DMI-2 portable and recalled for use in the field.

Delivery Range:

  • 1x Digital Microphone Interface (DMI-2 Portable)
  • 1x CD with RCS software and USB drivers

Neumann DMI-2 Portable Specifications:

  • Ports: 2x AES42 IN (3-pin XLR-F), 1x AES/EBU(AES3) OUT (3-pin XLR-M), 2x Word Clock IN/OUT (BNC), 1x Remote Control (USB)
  • Indicators: Monochrome display, bar graphs forgain, level and gain reduction, LED’s for Power, Battery status, Synchronization and Valid
  • Phantom power (DPP): +10 V, max. 250 mA per channel, short-circuit proof
  • Remote control data: Pulses (+2 V), superimposed on the phantom power, approx. 750 bits/s or 9,600 bits/s (depending on the microphone)
  • Microphone synchronization: AES42 – Mode 2 (synchronous mode) Microphone clock control via PLL
  • DMI-2 portable Synchronization: automatically to an external word clock or AES11 signal, if present, otherwise the internal word clock generator is activated
  • Word Clock (or AES11) Input: BNC
    • Vin: >100 mV at 75 ohms
  • Word Clock (or AES11) output: BNC
    • Vout: = Vin (externalsynchronization)
    • Vout: approx. 1.5 V at 75 ohms (internal word clock generator)
  • Internal word clock generator: 44.1 / 48 / 88.2 /96 kHz/176.4 / 192 kHz, Accuracy ±25 ppm
  • Control elements: 2x push-switch rotary encoder
  • CTL (Control interface): 1x USB port
  • Power supply: DC 10-18 V (Hirose) , NP1 rechargeable battery or AC/DC converter
  • Power consumption: < 8 VA
  • Dimensions (W x H x D): 186 x 44 x 126 mm
  • Approximate Weight: 625 g
