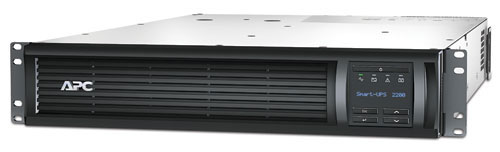

American Power Conversion SMT2200RM2U
APC Smart UPS 2200VA RM 2U

OUR PART #:  SMT2200RM2U

APC Smart-UPS, 1980 Watts / 2200 VA,Input 120V / Output 120V, Interface Port USB...
Learn More
Our Price: $1,138.66
List Price: $1,615.00
You save 29%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

American Power Conversion SMT2200RM2U
Qty:
In Stock
Similar Products

APC Smart-UPS, 1980 Watts / 2200 VA,Input 120V / Output 120V, Interface Port USB, Rack Height 2 U

Includes: CD with software, Documentation CD, Rack Mounting brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable

Specifications:

Output

  • Output Power Capacity:   1980 Watts / 2200 VA
  • Max Configurable Power:  1980 Watts / 2200 VA
  • Nominal Output Voltage:  120V
  • Efficiency at Full Load: 98%
  • Waveform Type:           Sine wave
  • Output Connections:
    (6) NEMA 5-15R
    (2) NEMA 5-20R

Input

  • Nominal Input Voltage:  120V
  • Input Frequency:        50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections:      NEMA 5-20P
  • Cord Length:            8 feet (2.44 meters)
  • Input voltage range for main operations: 82 - 143V
  • Input voltage adjustable range for mains operationL: 75 - 154V

Battery Type

  • Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time
    3 hour(s)
  • Replacement Battery
    RBC43
  • RBC™ Quantity:  1

Communications & Management

  • Interface Port(s)
    USB
  • Available SmartSlot™ Interface Quantity
    1
  • Control panel
    LED status display with On Line : On Battery : Replace Battery and Overload indicators,Multi-function LCD status and control console
  • Audible Alarm
    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

  • Surge energy rating:  530 Joules

Physical

  • Maximum Height
    3.39 inches (86 mm)
  • Maximum Width
    18.90 inches (480 mm)
  • Maximum Depth
    26.89 inches (683 mm)
  • Rack Height
    2U
  • Net Weight
    93.08 lbs. (44.28 kg)
  • Shipping Weight
    109.41 lbs. (51.70 kg)
  • Shipping Height
    10.00 inches (254 mm)
  • Shipping Width
    23.62 inches (600 mm)
  • Shipping Depth
    38.60 inches (980 mm)
    Color
  • Black
  • Units per Pallet
    8.00

Environmental

  • Operating Environment
    32 - 104 °F (0 - 40 °C)
  • Operating Relative Humidity
    0 - 95%
  • Operating Elevation
    0-10000 feet (0-3000 meters)
  • Storage Temperature
    5 - 113 °F (-15 - 45 °C)
  • Storage Relative Humidity
    0 - 95%
  • Storage Elevation
    0-50000 feet (0-15000 meters)
  • Audible noise at 1 meter from surface of unit
    55.00 dBA
  • Online Thermal Dissipation
    215.00 BTU/hr

Conformance

  • Regulatory Approvals
    CSA,FCC Part 15 Class A,UL 1778
  • Standard Warranty
    3 years repair or replace (excluding battery) and 2 year for battery
  • Equipment protection policy
    Lifetime : $150000
  • Environmental Compliance
    RoHS 7b Exemption,REACH: Contains No SVHCs
